| Weight | 4,100 | 4,100 |

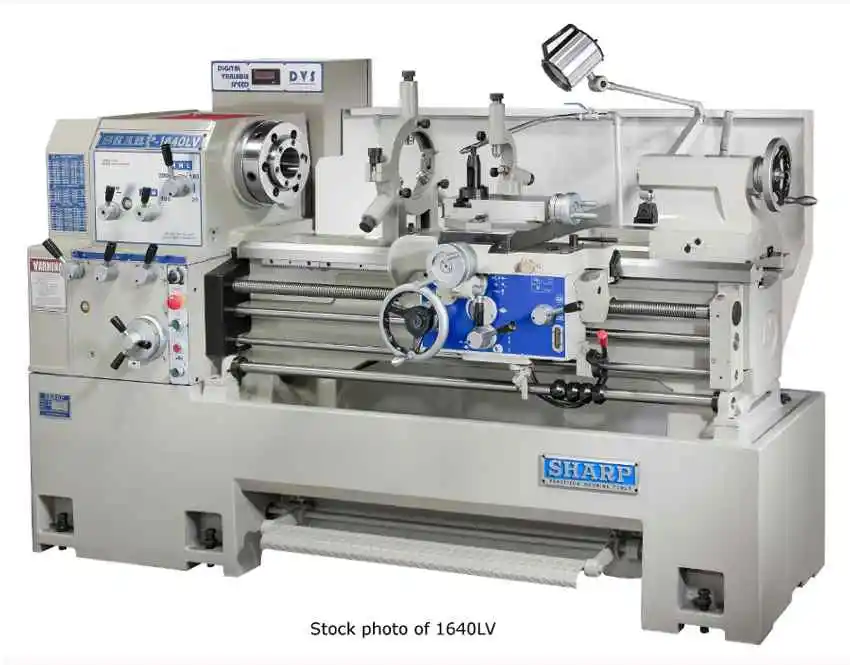

SHARP (NEW) MODEL 1660L-K PRECISION GEAR HEAD
LATHE
CAPACITY
- 16" SWING OVER BED
- 8-3/4" SWING OVER CROSS SLIDE
- 24-3/8" SWING OVER GAP
- 11.75" BED WIDTH
- 9.75" GAP WIDTH
- 1.9" CENTER HEIGHT
- 60" BETWEEN CENTERS
HEADSTOCK
- D1-8 CAMLOCK SPINDLE NOSE
- 3.125" SPINDLE BORE
- 235-2,000 RPM SPINDLE SPEEDS - HIGH
- 20-170 RPM SPINDLE SPEEDS - LOW
- MT #6 SPINDLE BORE TAPER
- MT #4 CENTER TAPER
THREADS AND FEEDS
- 18 LONGITUDINAL FEEDS 0.002"-0.032" IPR
- CROSS FEEDS 0.001"-0.0094" IPR
- 40 INCH THREADS 4-56 TPI
- METRIC MODULE THREADS 0.5-7 MM
- 36 DP THREADS 4-56 MM
- 4 TPI LEADSCREW PITCH, 1-3/8" DIAMETER
CARRIAGE
- 8.7" CROSS SLIDE WIDTH
- 4.9" COMPOUND REST TRAVEL
- 4.5" COMPOUND WIDTH
BED
- 77" X 11.75"
TAILSTOCK
- 5" QUILL TRAVEL (GRADUATED)
- 2-1/4" QUILL DIAMETER
- MT #4 QUILL TAPER
7.5 HP MOTOR, 3 PHASE, 220 OR 440 VOLT
STANDARD EQUIPMENT
- 12" 3-JAW CHUCK
- 16" FACE PLATE
- 1/2" - 6" STEADY REST WITH BRONZE TIP
- COOLANT SYSTEM
- FULL-LENGTH SPLASH GUARD
- AMERICAN TOOL POST
- 6" DIAMETER BACK PLATE
- THREADING DIAL
- CENTER SLEEVE (MT #5 X 3)
- DEAD CENTERS (MT #4 X 1 AND MT #5 X 1)
- FOLLOW REST
- HALOGEN WORK LIGHT
- NEWALL NMS 300 2-AXES DRO
- CHUCK GUARD WITH LIMIT SWITCH
- LONGITUDINAL CARRIAGE STOPS
- TOOL KIT
FEATURES
- D1-8 CAMLOCK
- 3-1/16" SPINDLE HOLE
- DIRECT SELECTION FOR INCH/METRIC THREADS
- 1-PIECE CAST MEEHANITE BED
OPTIONS AVAILABLE - PRICE ON REQUEST
- 3-JAW CHUCKS - 12"
- 4-JAW CHUCKS -16"
- TOOL GUARD
- LEAD SCREW GUARD
- GUARD BEHIND SPINDLE
- UL/CSA SWITCH BOARD IN LIEU OF UL/CSA-16
- MICROMETER CARRIAGE STOP
- 4-WAY TOOLPOSTS
- TAPER ATTACHMENT
- ROLLER JAWS FOR STEADY REST
- ADDITIONAL STEADY RESTS
- DRILL AND ARBOR
- LIVE CENTERS
- 5C COLLET CLOSER
- TRANSFORMER FOR 575 VOLTS
- DIGITAL READOUT SYSTEMS
Power: 230/460 (3-Phase)
