NEW SHARP 1640L-K

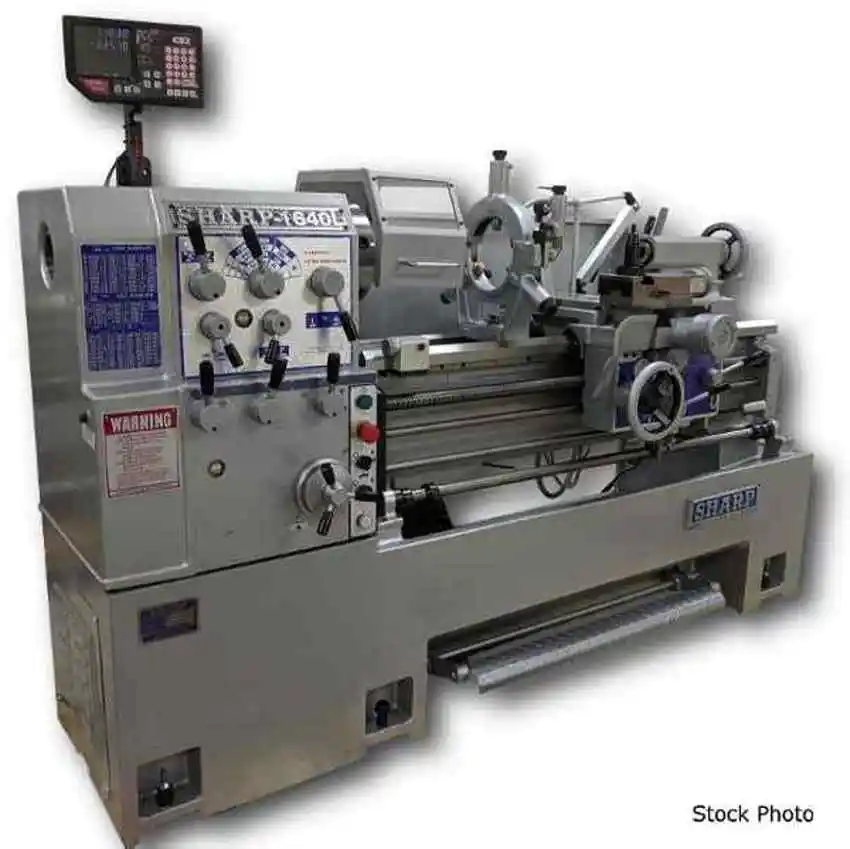

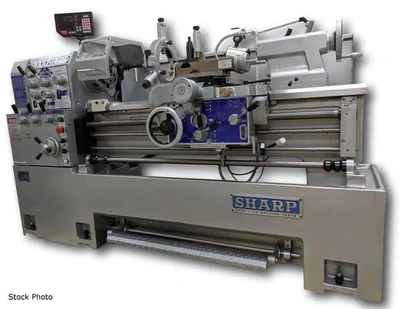

SHARP (NEW) MODEL 1640L-K PRECISION GEAR HEAD LATHE

CAPACITY
- 16" SWING OVER BED
- 8-3/4" SWING OVER CROSS SLIDE
- 9-1/2" TRAVEL OF CROSS SLIDE
- 24-3/8" SWING OVER GAP
- 9.75" GAP WIDTH
- 1.9" CENTER HEIGHT
- 40" BETWEEN CENTERS

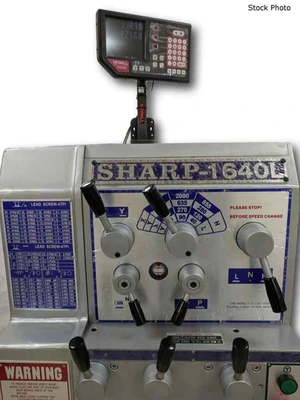

HEADSTOCK
- D1-8 CAMLOCK SPINDLE NOSE
- 3.14" SPINDLE BORE
- 12 SPINDLE SPEEDS 40-2,000 RPM
- MT #6 SPINDLE BORE TAPER
- MT #4 CENTER TAPER
THREADS AND FEEDS
- 18 LONGITUDINAL FEEDS 0.002"-0.032" IPR
- 12 CROSS FEEDS 0.001"-0.0094" IPR
- 36 INCH THREADS 4-56 TPI
- 17 METRIC MODULE THREADS 0.5-7 MM
- 36 DP THREADS 4-56 MM
- 4 TPI LEADSCREW PITCH, 1-3/8" DIAMETER

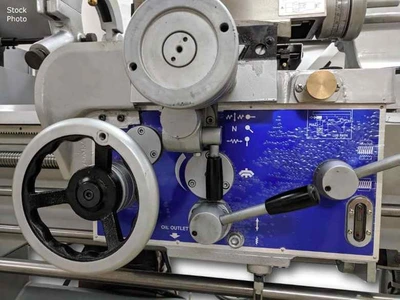

CARRIAGE
- 9.84" CROSS SLIDE TRAVEL
- 4.9" COMPOUND REST TRAVEL
- 4.5" COMPOUND WIDTH
BED
- 59" X 11.75"
TAILSTOCK
- 5" QUILL TRAVEL (GRADUATED)
- 2-1/4" QUILL DIAMETER
- MT #4 QUILL TAPER
7.5 HP MOTOR, 3 PHASE, 220 OR 440 VOLT

STANDARD EQUIPMENT
- COOLANT SYSTEM
- HALOGEN WORK LIGHT
- 16" FACE PLATE

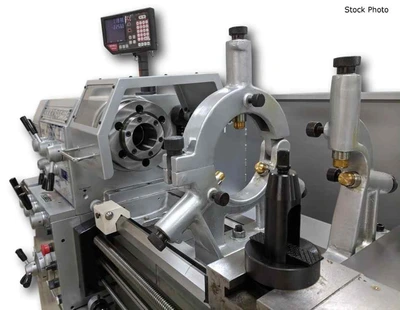

- .4" - 6" STEADY REST
- AMERICAN TOOL POST
- FULL- LENGTH SPLASH GUARD
- FOLLOW REST

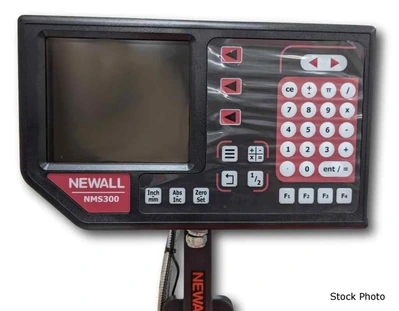

- NEWALL NMS-300, 2-AXIS DRO
- CHUCK GUARD WITH LIMIT SWITCH
- LONGITUDINAL CARRIAGE STOPS
- TOOL KIT

FEATURES
- D1-8 CAMLOCK
- 3.14" SPINDLE BORE
- DIRECT SELECTION FOR INCH/METRIC THREADS
- 1-PIECE CAST MEEHANITE BED
- 7.5HP SPINDLE MOTOR
- 12-SPEED GEAR HEAD (40-20,000 RPM)

OPTIONS AVAILABLE - PRICE ON REQUEST
- 3-JAW CHUCKS - 10", 12"
- 4 JAW CHUCK - 12" (QU)
- 4-JAW CHUCKS - 12" (BISON)
- TOOL GUARD
- LEAD SCREW GUARD
- GUARD BEHIND SPINDLE
- UL/CSA SWITCH BOARD IN LIEU OF UL/CSA-16
- MICROMETER CARRIAGE STOP
- 4-WAY TOOL POST FOR 16" FOR LATHES (.4" - 6" CAPACITY)
- TAPER ATTACHMENT (FACTORY INSTALLED)
- ROLLER JAWS FOR STEADY REST
- ADDITIONAL STEADY RESTS
- STEADY REST FIR 16" LATHE (1.18" - 9" CAPACITY)
- DRILL AND ARBOR (JACOBS)
- QUICK CHANGE TOOL HOLDER SET (7 PIECES) - ALORIS
- LIVE CENTER MT#4
- COLLET SETS
- TRANSFORMER FOR 440 VOLTS/575 VOLTS
- 10 HP MOTOR IN LIEU OF 7.5 HP
Power: 220 (3-Phase)
