ANVER (NEW) 2- PAD VACUUM SHEET LIFTER AND STAND

ANVER (NEW) 2- PAD VACUUM SHEET LIFTER AND STAND

MAXIMUM CAPACITY
- 8' X 6' SIZE
- 500 LBS

COMPONENTS
- L50M2-61 LIFTING FRAME
- M100M-L MECHANICAL VACUUM GENERATOR ASSEMBLY
- PS-150-3X3 PARKING STAND ASSEMBLY

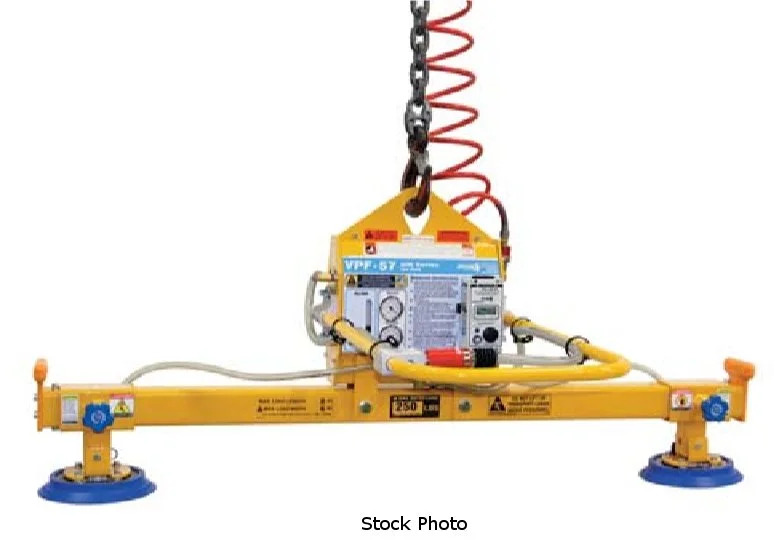

LIFTING FRAME
- 500 LB CAPACITY
- (2) 9.25" DIAMETER VACUUM PADS
- 7.2" HEADROOM
- 63" BEAM LENGTH
- 9" HARDWARE MOUNTING CENTERS

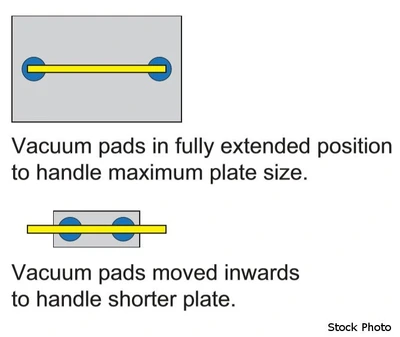

- 30" TO 62" PAD DISTANCES
- 8' X 6' MAXIMUM SHEET SIZE
- SSR-90 SEAL
- VACUUM LEAKAGE SENSOR AND WARNING SYSTEM
- ATTACH/RELEASE SLIDE VALVE WITH SAFETY LOCK
- LOCKING HAND KNOBS ON THE ADJUSTABLE VACUUM PAD
- SLIDE ASSEMBLIES
- HANDLES CARBON AND STAINLESS STEEL SHEETS AND
PLATES
- MEETS US ANSI ASME STANDARD B30.20
- MEETS OSHA REQUIREMENTS

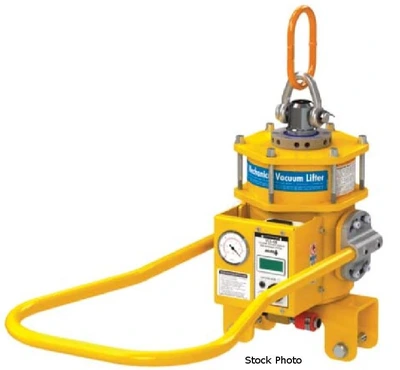

MECHANICAL VACUUM GENERATOR ASSEMBLY
- 1,100 LB CAPACITY
- FITS 3" X 3" TUBE SIZE
- 9" HARDWARE CENTERS
- MOUNTING HARDWARE PROVIDED
- VLS-08 BATTERY OPERATED VACUUM LOSS SENSOR/
WARNING SYSTEM
- FRONT, ADJUSTABLE PIVOTING HANDLEBAR
- 2 SHUT-OFF VALVES WITH LOCKING PUSH BUTTON
- INSTANT ATTACH AND RELEASE
- SIMPLE TO OPERATE AND MAINTAIN
- LOAD CANNOT BE RELEASED UNTIL SET ON SURFACE
- 100% DUTY CYCLE, 24 HOURS A DAY
- MEETS US ANSI ASME STANDARD B30.20
- MEETS OSHA REQUIREMENTS

PARKING STAND ASSEMBLY
- 2,200 LB CAPACITY
- FOR 3" X 3" BEAMS (PAIR) UP TO 120" LONG
- BOLT-ON MOUNTING
- DOWN (PARKED) POSITION KEEPS SEALS OFF GROUND
- OUT, UP FOLDED-IN POSITIONS (WHEN OVER LOAD)
- ISO 9001 CERTIFIED

WEIGHTS
- 62 LB FRAME
- 105 LB VACUUM GENERATOR
- 16 LB PARKING STAND ASSEMBLY
