ANVER (NEW) 6-PAD VACUUM SHEET LIFTER AND STAND

ANVER (NEW) 6-PAD VACUUM SHEET LIFTER AND STAND

CAPACITY - MILD STEEL - HORIZONTAL HANDLING
- 12' LENGTH
- 6' WIDTH
- 14 GAUGE TO 1" THICKNESS

COMPONENTS
- L300M6-110-3/44 LIFTING FRAME
- M250M-L3P/6P MECHANICAL VACUUM GENERATOR ASSY
- 72000038 PARKING STAND ASSEMBLY

LIFTING FRAME
- 3,000 LB CAPACITY
- 12' X 6' SHEET SIZE X 14 GAUGE TO 1" STEEL

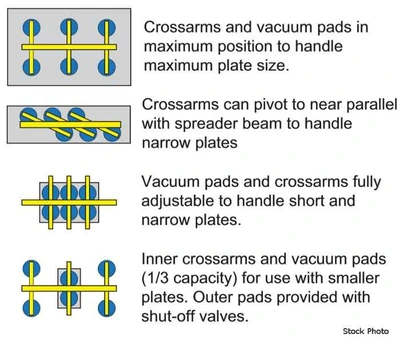

- 6 ADJUSTABLE PADS ON CROSSARMS
- 13" HEADROOM
- 110" SPREADER BEAM
- 44" CROSSARM
- 12.6" PAD DIAMETER
- 47" TO 120" OUTER PAD DISTANCE (LENGTH)
- 26" TO 53" OUTER PAD DISTANCE (WIDTH)
- SSR-126 SEAL
- VACUUM LEAKAGE SENSOR AND WARNING SYSTEM
- ATTACH/RELEASE SLIDE VALVE WITH SAFETY LOCK
- LOCKING HAND KNOBS ON THE ADJUSTABLE VACUUM PAD
- SLIDE ASSEMBLIES
- HANDLES CARBON AND STAINLESS STEEL SHEETS AND
PLATES
- MEETS US ANSI ASME STANDARD B30.20
- MEETS OSHA REQUIREMENTS

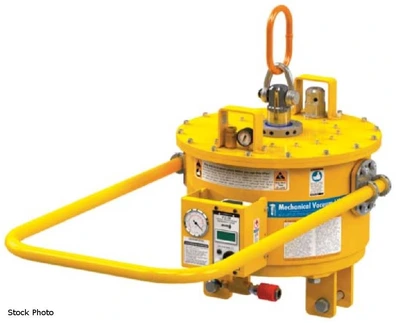

MECHANICAL VACUUM GENERATOR ASSEMBLY
- 4,400 LB CAPACITY
- 3" X 6" BEAMS
- VACUUM GAUGE
- VLS-08 BATTERY OPERATED VACUUM LOSS SENSOR/
WARNING SYSTEM
- FRONT, ADJUSTABLE PIVOTING HANDLEBAR
- 2 SHUT-OFF VALVES WITH LOCKING PUSH BUTTON
- 32-1/4"HEADROOM
- 20" MINIMUM HEIGHT
- 22" X 34-3/4" HANDLEBAR
- 12" HARDWARE CENTERS
- INSTANT ATTACH AND RELEASE
- 100% DUTY CYCLE, 24 HOURS A DAY
- MEETS US ANSI ASME STANDARD B30.20
- MEETS OSHA REQUIREMENTS

PARKING STAND ASSEMBLY
- 2,000 TO 4,400 LB CAPACITY
- FOR 3" X 6" BEAMS (PAIR) UP TO 190" LONG
- PS-250 BOLT-ON
- DOWN (PARKED) POSITION KEEPS SEALS OFF GROUND
- OUT, UP FOLDED-IN POSITIONS (WHEN OVER LOAD)
- ISO 9001 CERTIFIED

WEIGHTS
- 264 LB FRAME
- 302 LB VACUUM GENERATOR
- 32 LB PARKING STAND ASSEMBLY
