NEW EDWARDS HAT 6020 20-TON

EDWARDS (NEW) MODEL HAT 6020 20-TON HORIZONTAL
PRESS WITH PORTABLE POWER UNIT

INCLUDES
1) EDWARDS HP20T HORIZONTAL PRESS - 1350 LBS
2) EDWARDS PORTABLE POWER UNIT - 400 LBS

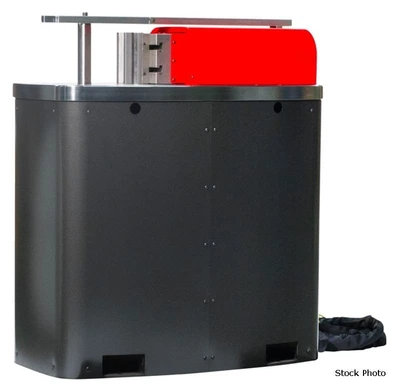

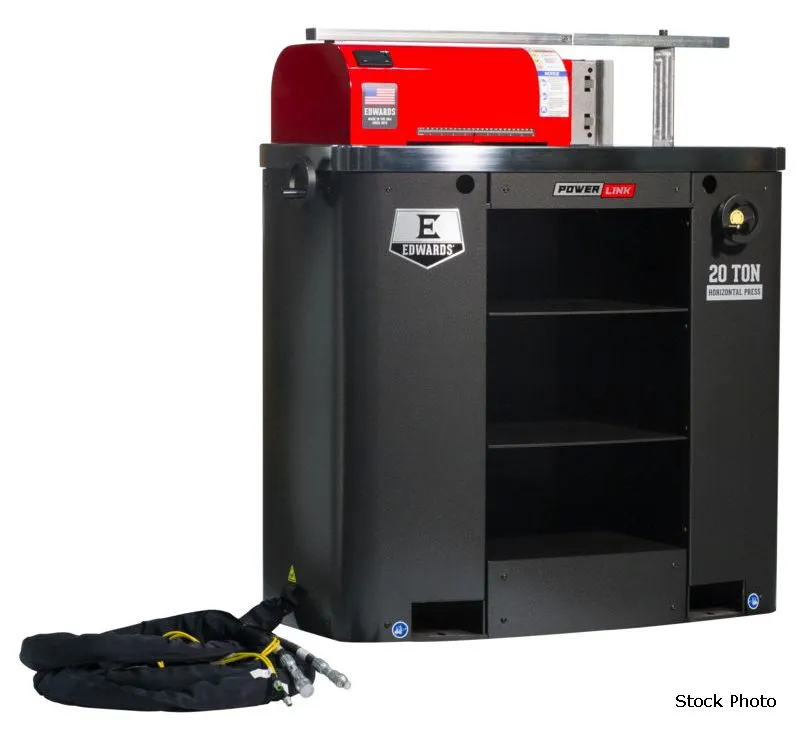

1) HORIZONTAL PRESS SPECIFICATIONS
20 TON CAPACITY
2.25" RAM
10" STROKE
38" - 40" WORK HEIGHT
24" X 42" TABLE DIMENSIONS
2" PIN DIAMETER
9.79" TO 13.54" TOOL CHUCK TO PIN CENTERS
6" PIN HEIGHT
1/2" T NUT/SET SCREW AMERICAN STANDARD BRAKE
PUNCH TOOLING

6" BRAKE 4-WAY DIE INCLUDED
- 6" BRAKE HOLDER
- 6" PUNCH ARBOR
- 1/2" THICK X 6" TALL PROJECTS
- CREATE QUICK AND EASY CLIPS, BRACKETS, HANGERS,
ANGLES AND BOX GEOMETRICS

FEATURES
- DIGITAL READOUT
- HARDENED TOOLING PINS
- 4 PIN LOCATIONS FOR TOOLING FLEXIBILITY
- SMOOTH RAM EXTENSION
- ROBUST COMBUSTION
- 2" MACHINED HEAVY-DUTY TABLE
- MACHINED, HARDENED BUSHINGS

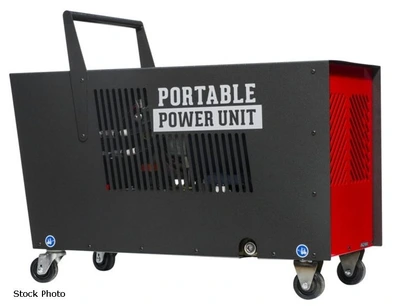

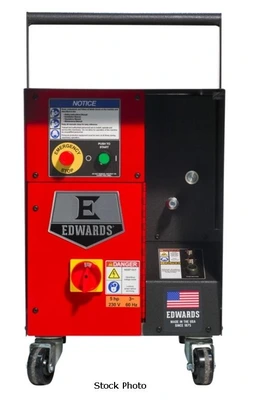

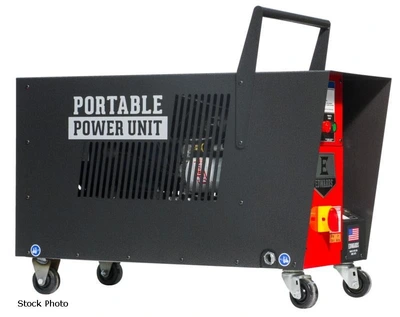

2) EDWARDS PORTABLE POWER UNIT
5 HP, 3 PHASE ELECTRIC MOTOR
208 OR 230 VOLTS
1725 RPM
14 AMP
3-1/2 GPM 1-STAGE HYDRAULIC PUMP
2750 PSI VALVE PRESSURE
7 GALLON RESERVOIR
37.5" X 15.25" X 31.25"

PORTABLE POWER UNIT OPTIONAL MOTORS
- 5 HP, 3 PHASE, 460 VOLT, 7 AMP
- 5 HP, 3 PHASE, 575 VOLT, 6 AMP
- 5 HP, 1 PHASE, 230 VOLT, 23 AMP
Power: 208/230 (3-Phase)
