NEW ERIEZ XPL-22/16
Overview
Specifications
| Dimensions | 10-3/8 X 5-5/16 X 7-13/16 | 10-3/8 X 5-5/16 X 7-13/16 |
|---|---|---|
| Weight | 111 | 111 |

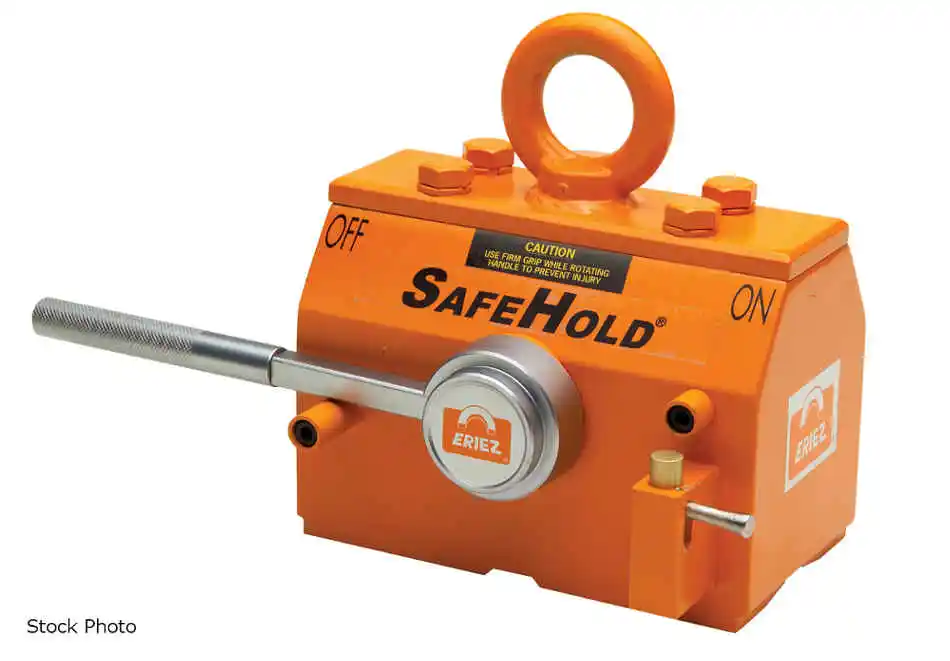

ERIEZ (NEW) MODEL XPL-22/16 LIFT MAGNET
2,200 LB MAXIMUM CAPACITY - FLAT
- 2" MINIMUM THICKNESS FOR MAXIMUM CAPACITY
1,600 LB MAXIMUM CAPACITY - ROUND
- 4" TO 15" OUTSIDE DIAMETER FOR MAXIMUM CAPACITY
MATERIAL THICKNESS CAPACITY
- 160 LBS AT 11 GAUGE
- 500 LBS AT 1/4"
- 1,000 LBS AT 3/8"
- 1,360 LBS AT 1/2"
- 1,680 LBS AT 3/4"
- 2,000 LBS AT 1"
- 2,000 LBS AT 1-1/4"
- 2,100 LBS AT 1-1/2"
- 2,100 LBS AT 1-3/4"
- 2,200 LBS AT 2"
NOTE: LIFTING CAPACITY RATINGS ARE BASED ON FLAT,
CLEAN, POLISHED STEEL PLATE MAGNET FACE IN FULL
CONTACT WITH LOAD
- CAPACITY IS LOWER ON THINNER MATERIAL
FEATURES
- LIFT FLAT AND ROUND MATERIAL
- EASY-TO-ROTATE HANDLE WITH NO BACKLASH
- DESIGNED TO HANDLE WIDE RANGES OF DIAMETERS
ON ROUND MATERIALS
- MANUAL ON AND OFF
- DOES NOT REQUIRE POWER SUPPLY
- POWERFUL RARE EARTH MAGNETS
