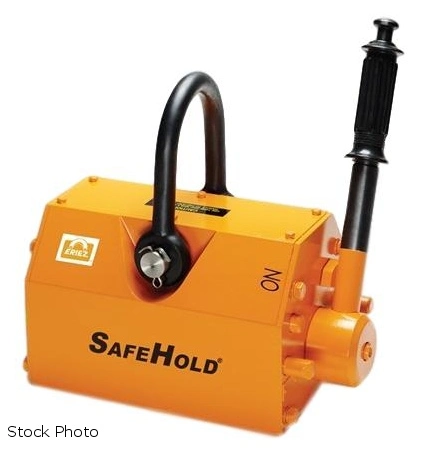

NEW ERIEZ RPL-25

ERIEZ (NEW) MODEL RPL-25 LIFT MAGNET

2,500 LB MAXIMUM CAPACITY - FLAT
- 1-3/4" MINIMUM THICKNESS FOR MAXIMUM CAPACITY
1,250 LB MAXIMUM CAPACITY - ROUND
- 10" MINIMUM OUTSIDE DIAMETER FOR MAX CAPACITY
MATERIAL THICKNESS CAPACITY
- 90 LBS AT 11 GAUGE
- 220 LBS AT 1/4"
- 600 LBS AT 3/8"
- 900 LBS AT 1/2"
- 1,500 LBS AT 3/4"
- 1,880 LBS AT 1"
- 2,260 LBS AT 1-1/4"
- 2,400 LBS AT 1-1/2"
- 2,500 LBS AT 1-3/4"
- 2,500 LBS AT 2"

NOTE: LIFTING CAPACITY RATINGS ARE BASED ON FLAT,
CLEAN, POLISHED STEEL PLATE MAGNET FACE IN FULL
CONTACT WITH LOAD
- CAPACITY IS LOWER ON THINNER MATERIAL

FEATURES
- LIFT FLAT AND ROUND MATERIAL
- MANUAL ON AND OFF
- DOES NOT REQUIRE POWER SUPPLY
- POWERFUL RARE EARTH MAGNETS
- LOCKING MECHANISM BUILT INTO HANDLE FOR ONE
HAND OPERATION
