| Dimensions | 146 X 46 X 73 | 146 X 46 X 73 |
| Weight | 4,700 | 4,700 |

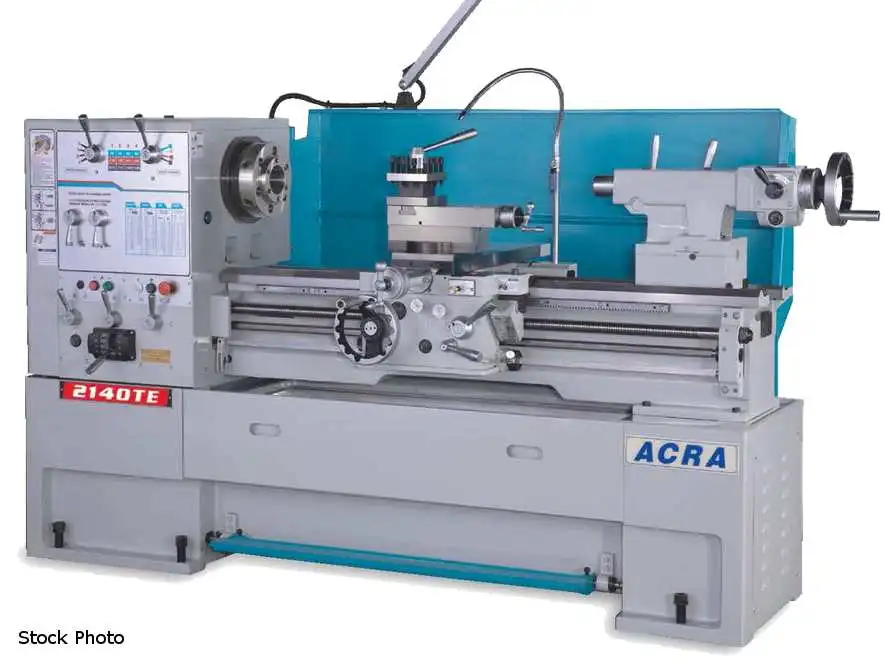

ACRA (NEW) MODEL 2140TE-3 PRECISION ENGINE LATHE
CAPACITY
- 21" SWING OVER BED
- 15-1/4" SWING OVER CROSS SIDE
- 28-3/4" SWING IN GAP
- 40" BETWEEN CENTERS
- 10-5/8" CENTER HEIGHT
- 12-1/2" BED WIDTH
HEADSTOCK
- D1-8 SPINDLE NOSE
- 3-1/8" SPINDLE BORE
- MT5 SPINDLE TAPER
- 12 SPINDLE SPEEDS
- 26 - 1500 RPM SPINDLE
CARRIAGE
- 11.8" CROSS SLIDE TRAVEL
- 5.9" COMPOUND SLIDE TRAVEL
THREADS AND FEEDS
- 2 - 72 TPI INCH THREADS
- 0.2 - 14 MM METRIC THREADS
- 0.0015 - 0.04"/REV LONGITUDINAL FEEDS
- 0.00075 - 0.02"/REV CROSS FEEDS
TAILSTOCK
- 2-5/16" QUILL DIAMETER
- 5" QUILL TRAVEL
- MT4 QUILL TAPER
POWER
- 12.5 HP, 3 PHASE, 230/460 VOLTS
STANDARD EQUIPMENT
- 12" 3-JAW CHUCK
- 16" 4-JAW CHUCK
- FULL-LENGTH SPLASH GUARD
- STEADY REST / FOLLOW REST
- COOLANT SYSTEM
- FOOT BRAKE
- WORK LAMP
- GAP BED
- 4-POSITION SQUARE TOOL POST
- TOOL BOX WITH TOOLS
- 2-SPEED TAILSTOCK
OPTIONS AVAILABLE - PRICE ON REQUEST
- 5C COLLET CLOSER ATTACHMENT
- 5C COLLETS
- DRIVING PLATE WITH DOG
- HYDRAULIC COPYING ATTACHMENT
- TOOL POST GRINDER ATTACHMENT
- TAPER TURNING ATTACHMENT
- 14" FACE PLATE
- DRILL CHUCK AND ARBOR
- MT4 ROTATING CENTER
- QUICK-CHANGE TOOL POST
- CARRIAGE MICRO STOP SET
- DIGITAL READOUTS - NEWALL, ACU-RITE, SONY
- DRO INSTALLATION
Power: 230/460 (3-Phase)
