NEW SHARP LMV-49K-N

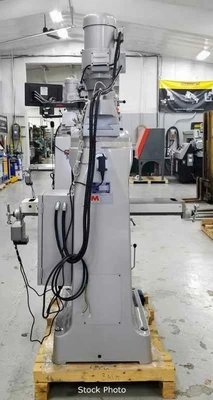

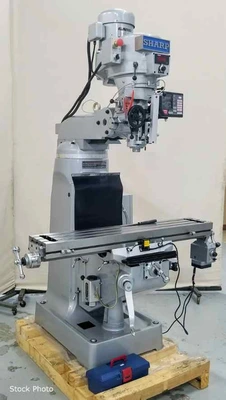

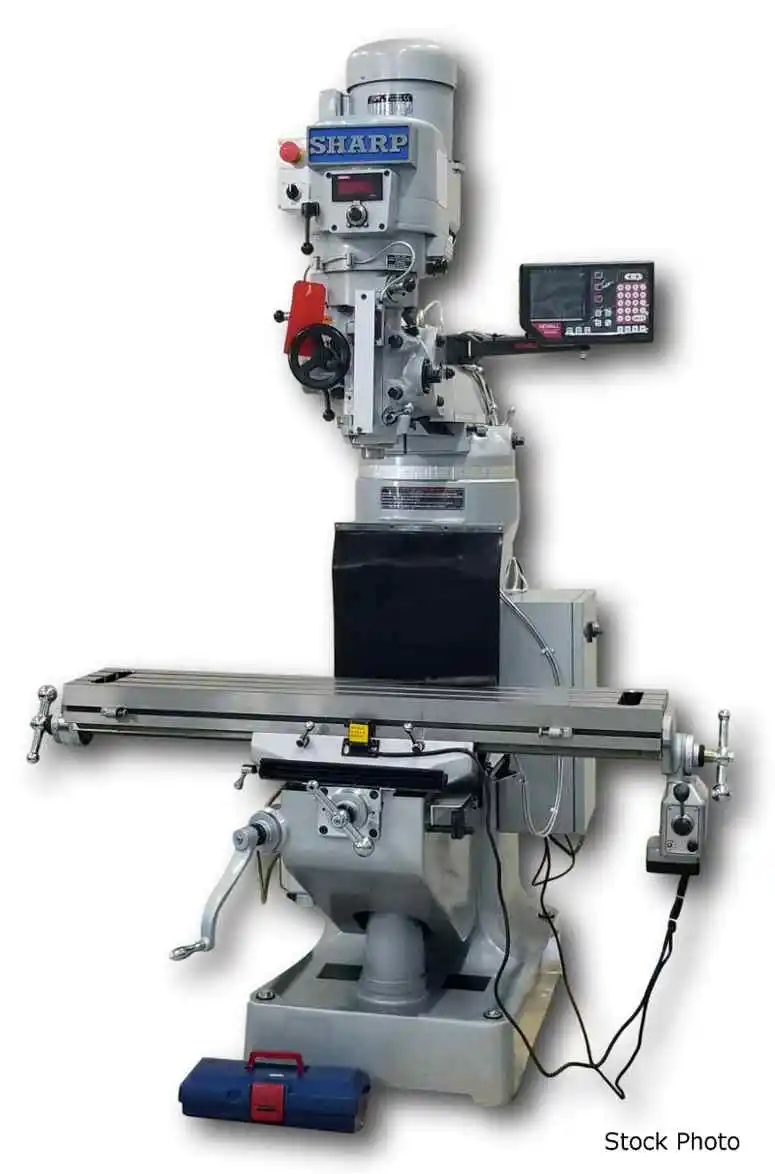

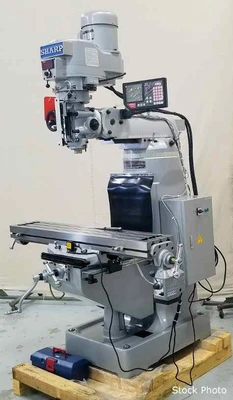

SHARP (NEW) MODEL LMV-49K-N VERTICAL MILL

CAPACITY
- 36.6" X, 12"Y AND 5" Z TRAVELS
- 12" RAM TRAVEL
- 16" KNEE TRAVEL
- 6-3/4" TO 18-1/2" SPINDLE TO COLUMN
- 2-1/8" TO 18" SPINDLE NOSE TO TABLE

TABLE
- 9" X 49" WORKING SURFACE
- (3) 5/8" T-SLOTS

SPINDLE
- 3 HP MOTOR
- R8 NOSE TAPER
- 65-4500 RPM DIGITAL VARIABLE SPEED DRIVE
- 0.0015, 0.003, 0.006 IPR QUILL FEED
- 360 DEGREE HEAD SWIVELS
- 45 DEGREE HEAD TILT (LEFT TO RIGHT)
- 45 DEGREE HEAD TILT (UP AND DOWN)

FEATURES
- DUAL COOLING FANS
- MEEHANITE CASTING
- CHROMED WAYS
- SELF-LUBRICATING MOTOR SHAFT EXTENDS PULLEY
LIFE
- ABEC-7 SUPER PRECISION SPINDLE BEARINGS

STANDARD EQUIPMENT

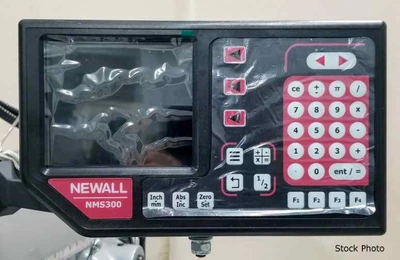

- NEWALL NMS 300 3-AXIS DIGITAL READOUT
QUILL, SADDLE, AND TABLE
- X AXIS POWERFEED
- DIGITAL VARIABLE HEAD
- HARD-CHROME WAYS AND GIBBS
- PRECISION GROUND AND FLAKED TABLE
- DOUBLE NUT BACKLASH SYSTEM
- CUTLER HAMMER ON/OFF SWITCH
- 1-SHOT LUBE SYSTEM (X, Y, Z AXES)
- FRONT AND REAR WAY COVERS
- TOOL KIT
Power: 220 (3-Phase)
