NEW SHARP 1340VS-K

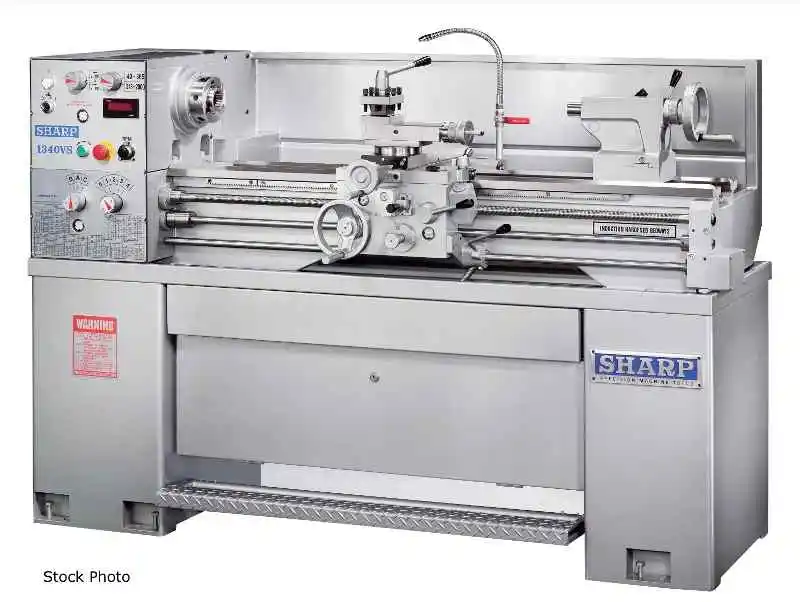

SHARP (NEW) MODEL 1340VS-K PRECISION ENGINE LATHE

CAPACITY
- 13" SWING OVER BED
- 8-5/16" SWING OVER CROSS SLIDE
- 18-1/2" SWING OVER GAP
- 7-1/2" BED WIDTH
- 9-1/4" GAP WIDTH
- 40" BETWEEN CENTERS

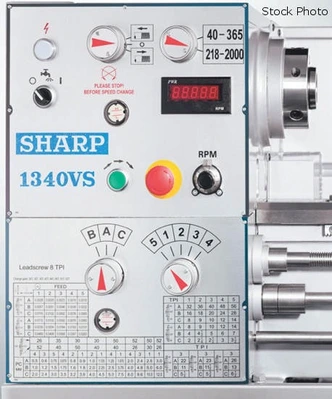

HEADSTOCK
- D1-4 CAMLOCK SPINDLE NOSE
- 1-9/16" SPINDLE BORE
- 40-2,000 SPINDLE SPEEDS
- MT#5 SPINDLE BORE TAPER

THREADS AND FEEDS
- 0.0016"- 0.046"/REV LONGITUDINAL FEEDS (40)
- 0.0005" - 0.015"/REV CROSS FEEDS (40)
- 2-56 TPI INCH THREADS (40)
- 0.5 - 12 MM METRIC THREADS (22)
- 8 TPI LEADSCREW PITCH, 7/8" DIAMETER

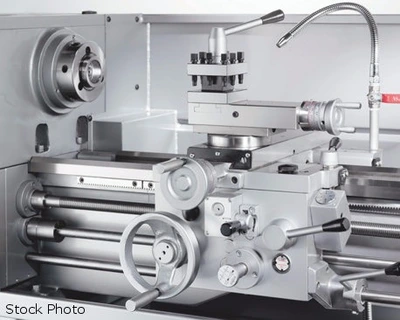

CARRIAGE
- 11" APRON WIDTH
- 4.5" CROSS SLIDE WIDTH
- 6-3/4" CROSS SLIDE TRAVEL
- 3-1/2" COMPOUND REST TRAVEL

BED
- 64" BED LENGTH
- 7-1/2" BED WIDTH

TAILSTOCK
- 4" QUILL TRAVEL (GRADUATED)
- 1-9/16" QUILL DIAMETER
- MT3 QUILL TAPER

3 HP 2-SPEED MOTOR

STANDARD EQUIPMENT
- 3-JAW 8" CHUCK
- REMOVABLE GAP
- STEADY REST (1/4" / 2-1/2" CAPACITY)
- COOLANT SYSTEM
- FULL-LENGTH SPLASH GUARD
- 4-WAY TOOL POST
- 6" DIAMETER BACK PLATE
- THREADING DIAL
- FOOT BRAKE
- CENTER SLEEVE (MT5 X 3)
- DEAD CENTERS (MT3)

- WORK LIGHT
- TOOL KIT

FEATURES
- HARDENED GROUND BED WAYS (ROCKWELL 50)
- VARI-SPEED, ALL GEARED HEAD STOCK IN CAST IRON
- JOG BUTTON FOR EASY GEAR ENGAGE INCHING SPNDL
- QUICK CHANGE GEARBOX - WIDE RANGE OF THREADS

OPTIONS INCLUDED
- NEWALL NMS 300 2-AXIS DRO
- CHUCK GUARD WITH LIMIT SWITCH
- FOLLOW REST

OPTIONS AVAILABLE - PRICE ON REQUEST
- 440 VOLT
- 3 AND 4-JAW CHUCKS
- ROLLER JAWS FOR STEADY REST
- QUICK-CHANGE TOOL HOLDER SET - 7 PIECE
- LIVE CENTERS
- DRILL CHUCK AND ARBOR
- D1-4 FACE PLATE (12")
- COLLET SETS
- SAFETY COVER AT END OF SPINDLE
- LEAD SCREW COVER (ACCORDIAN TYPE)
- TOOL GUARD WITH LIMIT SWITCH
- UL CSA RATED ELECTRICAL PARTS AND MOTOR
Power: 220 (3-Phase)
