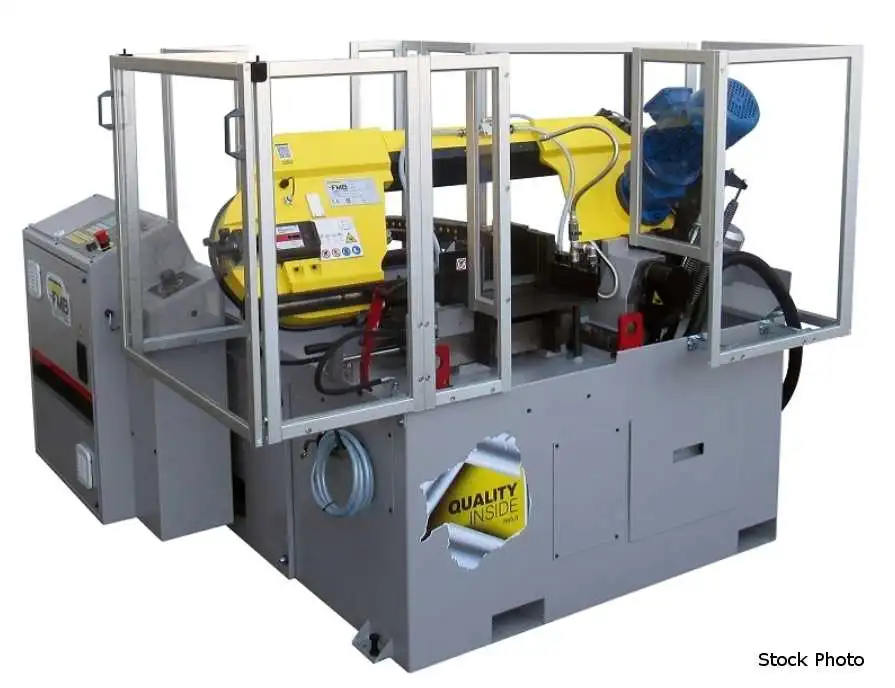

NEW PAT MOONEY FMB ZEUS CN

PAT MOONEY (NEW) FMB ZEUS CN FULLY AUTOMATIC
BANDSAW

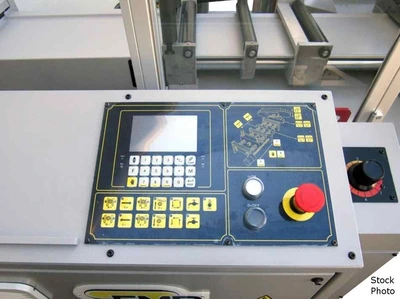

CNC CONTROLLED FULLY AUTOMATIC OPERATION
- ENTER CUT LENGTH, NUMBER OF CUTS PRESS START
- STORES UP TO 99 CUTTING JOBS

CUTTING CAPACITY AT 0 DEGREES
- 10-1/4" ROUND
- 10-1/4" X 10-5/8" RECTANGLE
- 10-1/4" X 10-1/4" SQUARE

BUNDLE CAPACITY
- 4-1/3" X 10-5/8" RECTANGLE

10' 10" X 1" X 0.035" BLADE
52-394 FPM VARIABLE BLADE SPEED
19.68" SHUTTLE STROKE
2 HP, 220 OR 440 VOLT, 3 PHASE MOTOR
24 VOLT CONTROL VOLTAGE

STANDARD FEATURES EQUIPMENT
- STRAIGHT CUTS ONLY
- HEAVY-DUTY MACHINE BASE
- MECHANICAL BLADE TENSION WITH INDICATOR
- PRECISION CARBIDE BLADE GUIDES W/ROLLER GUIDES
- PLANETARY GEAR DRIVE VIA GEAR REDUCTOR
- CASE HARDENED AND GROUND HELICAL GEARS
- FLOOD COOLANT SYSTEM
- LARGE CHIP PAN WITH COOLANT DRAIN
- POSITIVE HYDRAULIC DOWNFEED OF SAW BLADE

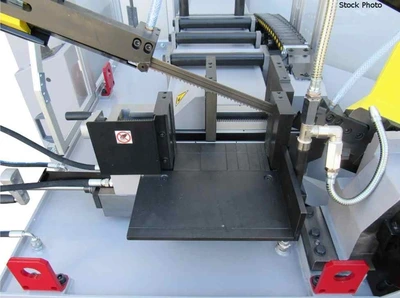

- HYDRAULIC CLAMPING
SPLIT FRONT VISE CLAMPS ON BOTH SIDES OF BLADE
- HYDRAULIC GRIPPER VISE FOR INDEX MATERIAL
- SAW BLADE RETURN HEIGHT CONTROL
- FAST APPROACH
- 2-SPEED INFEED SYSTEM
- BLADE BREAKAGE SWITCH
- MOTION DETECTOR TO SENSE BLADE STALLS
- SELF-CENTERING FEED VISE FOR CROOKED MATERIAL
- MECHANICAL HOLD DOWN FOR STACK CUTTING
- ELECTRICALLY DRIVEN CHIP BRUSH

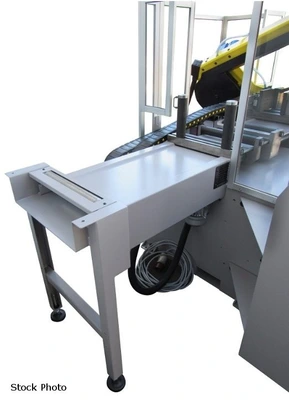

- ROLLER EXTENSION WITH COOLANT RETURN TRAY

OPTIONS AVAILABLE - PRICE ON REQUEST
- SPRAY MIST SAW BLADE LUBRICATION
- DIGITAL DISPLAY OF THE CUTTING ANGLE
- VISE PRESSURE REGULATION (ADJUSTABLE CLAMPING)
- VERTICAL BUNDLE CLAMP
- CHIP CONVEYOR
- CONVEYORS
Power: 220/440 (3-Phase)
