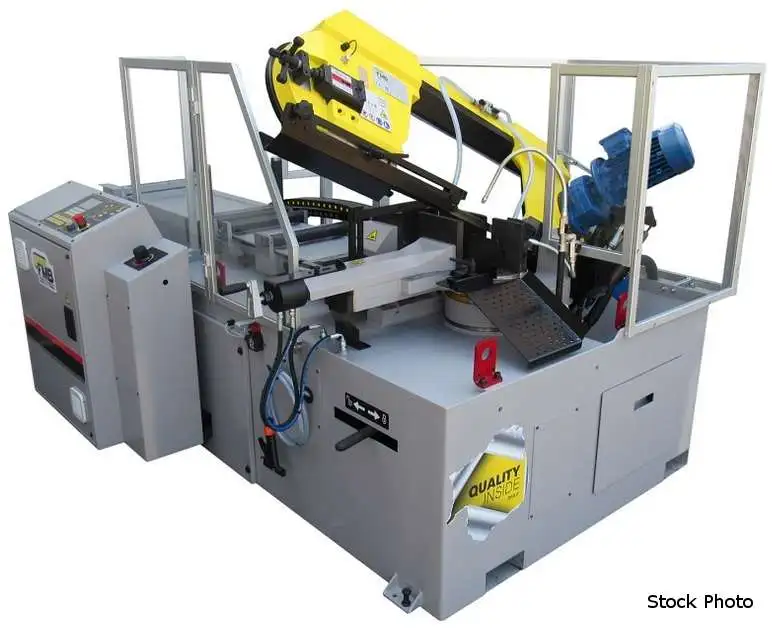

NEW PAT MOONEY FMB JUPITER CN

PAT MOONEY (NEW) MODEL FMB JUPITER FULLY
AUTOMATIC BANDSAW

CN CONTROLLED FULLY AUTOMATIC OPERATION
- ENTER CUT LENGTH, # OF CUTS PRESS START
- STORES UP TO 99 CUTTING JOBS

CUTTING CAPACITY AT 0 DEGREES
- 10-1/4" ROUND
- 10-1/4" X 11-3/4" RECTANGULAR
- 10-1/4" X 10-1/4" SQUARE

CUTTING CAPACITY AT 45 DEGREES
- 10-1/4" ROUND
- 4-3/4" X 11-1/2" RECTANGULAR
- 10-1/4" X 10-1/4" SQUARE

CUTTING CAPACITY AT 60 DEGREES
- 7" ROUND
- 3-1/2" X 7-1/2" RECTANGULAR
- 7" X 7" SQUARE

BUNDLE CAPACITY
- 4-3/4" X 11" RECTANGLE

10'10" X 1" X 0.035" BLADE
52-394 FPM VARIABLE BLADE SPEED
19.68" SHUTTLE STROKE

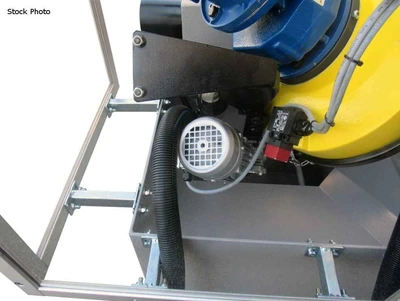

2 HP SAW MOTOR, 220 OR 440 VOLT, 3 PHASE

STANDARD FEATURES AND EQUIPMENT
- INVERTER CONTROLLED INFINITELY VARIABLE SPEED

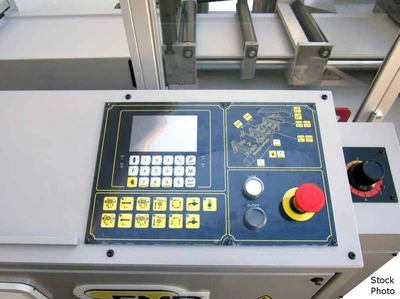

- EASY-TO-USE CONTROL PANEL FOR JOB SETUP
- HEAVY DUTY MACHINE BASE
- SWIVEL SAWHEAD
0-45 DEGREES IN AUTOMATIC CYCLE
0-60 DEGREES IN SEMI-AUTOMATIC CYCLE
- MECHANICAL BLADE TENSION WITH INDICATOR
- PRECISION CARBIDE BLADE GUIDES W/ROLLER GUIDES
- SAW DRIVE VIA GEAR REDUCTOR
- CASE HARDENED AND GROUND HELICAL GEARS

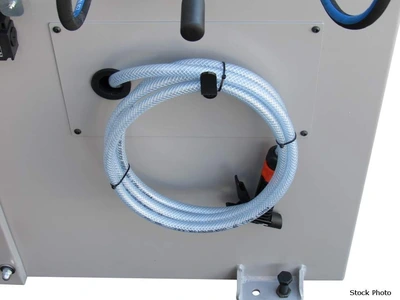

- FLOOD COOLANT SYSTEM WITH AUTOMATIC RETURN
- LARGE CHIP PAN WITH COOLANT DRAIN
- POSITIVE HYDRAULIC DOWNFEED OF SAW BLADE
- HYDRAULIC CLAMPING
- HYDRAULIC GRIPPER VISE FOR INDEX MATERIAL
- SAW BLADE RETURN HEIGHT CONTROL
- FAST APPROACH OF BLADE TO MATERIAL
- 2-SPEED INFEED SYSTEM
- BLADE BREAKAGE SWITCH
- MOTION DETECTOR TO SENSE BLADE STALLS
- SELF-CENTERING FEED VISE FOR CROOKED MATERIAL
- MECHANICAL HOLD DOWN FOR STACK CUTTING
- ELECTRICALLY DRIVEN CHIP BRUSH

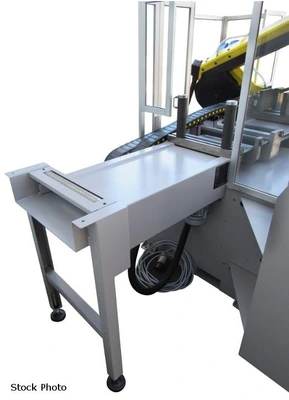

- ROLLER EXTENSION WITH COOLANT RETURN TRAY

OPTIONS AVAILABLE - PRICE ON REQUEST
- SPRAY MIST SAW BLADE LUBRICATION
- DIGITAL DISPLAY OF THE CUTTING ANGLE
- VISE PRESSURE REGULATION (ADJUSTABLE CLAMPING)
- VERTICAL BUNDLE CLAMP
- CHIP CONVEYOR
- CONVEYORS
Power: 220/440 (3-Phase)
