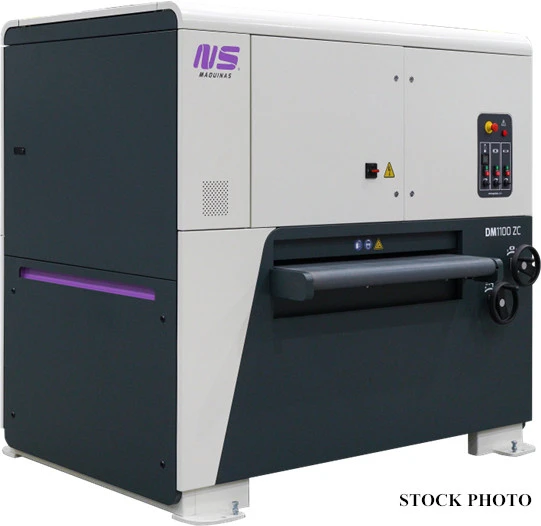

NEW NS MAQUINAS DM1100 ZC

NS MAQUINAS (NEW) MODEL DM1100 ZC S-LINE DEBURRING
AND EDGE ROUNDING MACHINE

DEBURRS ROUNDS EDGES ON THE INSIDE AND OUTSIDE
CONTOURS OF STAINLESS STEEL, STEEL, OR ALUMINUM
PARTS CUT BY LASER, PUNCHING OR SHEARING
- WIDE BELT HEAD TO REMOVE BURRS
- 2 CROSS BELTS PERFORM EDGE ROUNDING

43.5" MAXIMUM WORKING WIDTH
4.72" MAXIMUM MATERIAL THICKNESS
2" X 2" MINIMUM PART SIZE
2' - 10'/MINUTE VARIABLE FEED RATE
7.32" DIAMETER CONTACT ROLLER
TWO 2" X 124" BRUSH HEADS
43" X 73" ABRASIVE BELT
26-62 FEET/SECOND GRINDING BELT SURFACE SPEED
MANUAL VERTICAL ADJUSTMENT OF TABLE

1 HP CONVEYOR MOTOR
14 HP SANDING BELTS MOTOR
TWO 4 HP CROSS BELT MOTORS

YOU CANNOT MIX ALUMINUM WITH OTHER MATERIALS

MACHINE COMES WITH
- SET OF SANDING BLOCK BELTS W/60P CERAMIC BLOCKS
- 90 DEGREE CROSS BELT
- FREQUENCY INVERTER

OPTIONS AVAILABLE - PRICE ON REQUEST
- 2 REPLACEMENT SANDING BELTS WITH SANDING BLOCKS
- SET OF REPLACEMENT SANDING BLOCKS WITHOUT BELTS
- WET DUST COLLECTOR - MODEL C7 - 3000 CFM
- WET DUST COLLECTOR - MODEL C7SLR - 3700 CFM
- DRY CYCLONE DUST COLLECTOR - A400 - 4000 CFM
