| Dimensions | 164 X 54 X 64 | 164 X 54 X 64 |
| Weight | 7,920 | 7,920 |

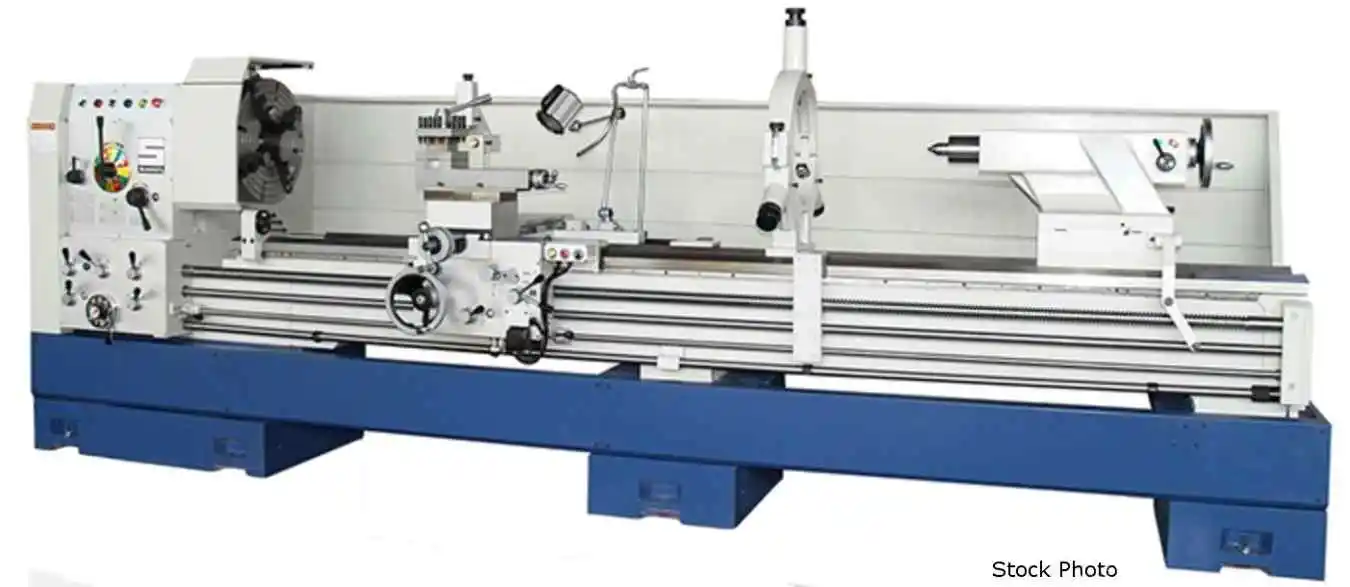

SUMMIT (NEW) MODEL 26-6-80 BIG HOLE ENGINE LATHE
26" SWING OVER BED
18" SWING OVER CROSS SLIDE
35" SWING OVER GAP
18" BED
6.1" SPINDLE BORE
D1-11 SPINDLE NOSE
13-800 SPINDLE SPEEDS
20 HP MAIN MOTOR
STANDARD EQUIPMENT
- ELECTRIC SPINDLE BRAKE FOR PRECISE CONTROL
- CAST IRON CONSTRUCTION PROVIDE S A SOLID
FOUNDATION FOR VIBRATION ADSORPTION AND RIGIDITY
- HARDENED AND PRECISION GROUND BEDWAYS FOR LONG
LASTING ACCURACY
- QUICK-CHANGE GEARBOX WILL CUT AMERICAN (INCH),
METRIC AND MODULE PITCH THREADS
- RAPID TRAVERSE ON CARRIAGE (4 WAY)
- 2-SPEED TAILSTOCK FOR FASTER SETUPS
- HUGE 6" AND 9" SPINDLE BORES FOR MAXIMUM
WORKPIECE FLEXIBILITY
ACCESSORIES INCLUDED
- STEADY REST
- TAPER ATTACHMENT
- 16" 3-JAW CHUCK
- FOLLOW REST
- FULL-LENGTH SPLASH GUARD
- 20" 4-JAW CHUCK
- WORK LIGHT
- TWO-SPEED TAILSTOCK
- COOLANT SYSTEM
OPTIONS AVAILABLE - PRICE ON REQUEST
- QUICK CHANGE TOOL POST WITH HOLDERS
- REAR FLANGE TO MOUNT ADDITIONAL CHUCK
- ELECTRONIC 2-AXIS DIGITAL READOUT INSTALLED
- 28" STEEL BODY HEAVY DUTY 4 JAW CHUCK WITH
7.5" BORE
- 25" STEEL BODY HEAVY DUTY 3 JAW PRECISION
CHUCK WITH 9.9" BORE
- 20" STEEL BODY HEAVY DUTY 3 JAW PRECISION
CHUCK WITH 7.5 BORE
- 15-3/4" STEEL BODY 4-JAW CHUCK WITH 6.5 BORE
Power: 220/440 (3-Phase)
