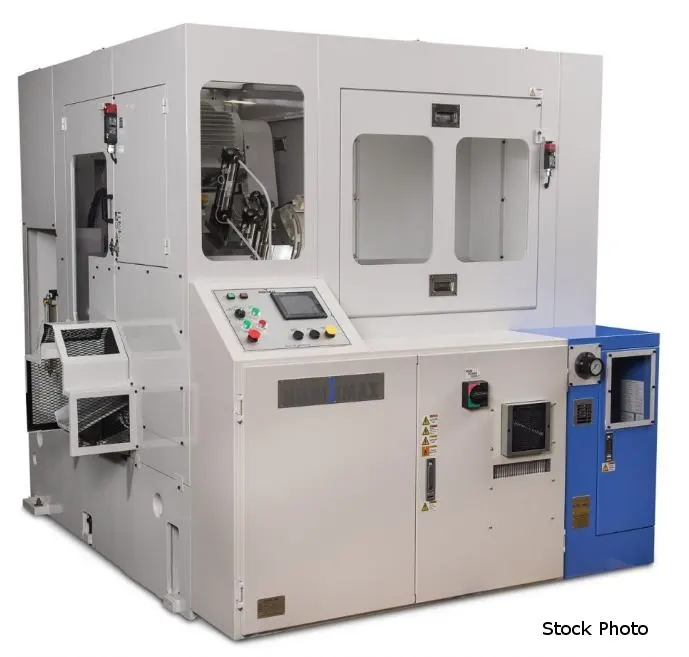

NEW PAT MOONEY NISHIJIMAX NHC-130

NISHIJIMAX (NEW) MODEL NHC-130 CNC CARBIDE
COLD SAW

CUTTING RANGE
- 5/8" TO 5" DIAMETER
- 19/32" TO 118" LENGTH
- 19/32" TO 3-3/4" TRIM CUT LENGTH
- 20'-24' SUPPLY BAR LENGTH
21 HP MOTOR
40-130 RPM BLADE SPEEDS
FREQROL INVERTER DRIVE
PRECISION TORQUE CONTROL
0.1" KERF
POWDER METAL SAW BLADE BRAKE

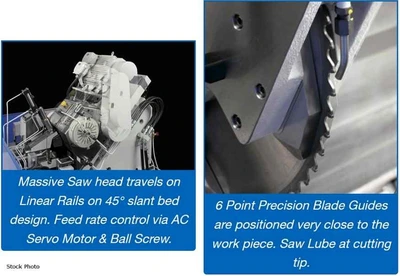

NC SAW SPINDLE FEED AXIS
- MITSUBISHI SERVO DRIVE AC SERVO MOTOR
- PRECISION BALL SCREW
- CHIP LOAD ENTRY W/AUTO CALCULATION OF FEED RATE
SAW BLADE HOUSING WITH 6 POINT CONTACT
PRECISION-DROP SAW BLADE LUBRICATION

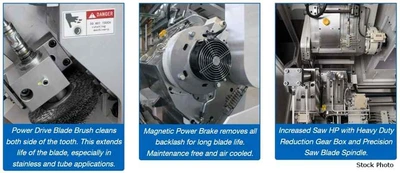

BLADE BRUSH DRIVEN FROM THE GEARBOX

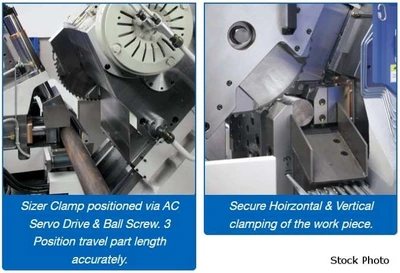

4-POINT MATERIAL CLAMPING SYSTEM
NC MATERIAL INDEX AXIS
- 2 HP AC SERVO MOTOR
- ENCODER
- MITSUBISHI SERVO DRIVE
- PRECISION BALL SCREW
- GRIPPER VISE
HYDRAULIC SYSTEM
- 3 HP MOTOR
- 2.6 GALLON TANK

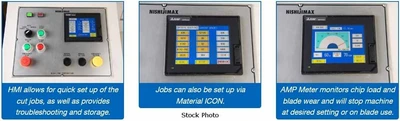

TOUCH SCREEN PANEL
- LESS THAN 5 MINUTES TO SET UP NEW JOB
- (NO MECHANICAL CHANGES)
- EASY-TO-USE OPERATOR SCREEN
- PERFORMANCE DATA
- TECHNICAL SUPPORT AND SELF-DIAGNOSTICS
- DISPLAYS PART COUNTS, BIN COUNTS AND BLADE LIFE
INTEGRATED INCLINED LOADING TABLE AND BUNDLE RACK

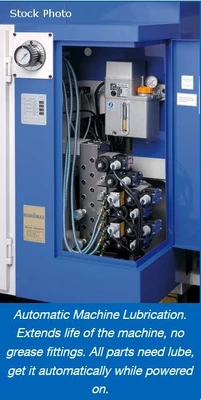

AUTOMATIC LUBRICATION OF MOVING PARTS
- MACHINE SHUTS DOWN IF OIL RESERVE IS EMPTY
AUTOMATIC SEPARATION OF TRIM CUT AND REMNANT END
21 HP, 208 VOLTS, 3 PHASE

OPTIONS AVAILABLE - PRICE ON REQUEST
- AUTOMATIC CHIP CONVEYOR
- ZERO TRIM CUT SOFTWARE
- BACKGAUGE SOFTWARE
- FULL MACHINE ENCLOSURE
Power: 208 (3-Phase)
