NEW DURMA AD-ES 2040

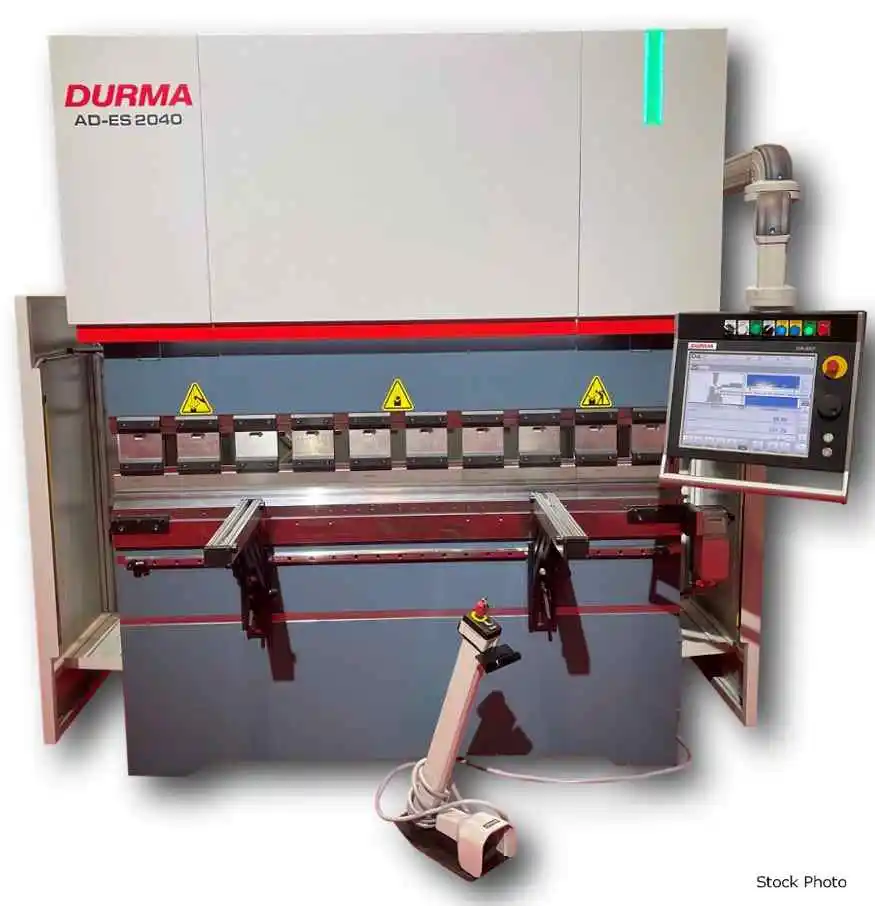

DURMA (NEW) MODEL AD-ES 2040 ELECTRICAL PRESS BRAKE

44.1 US TONS
6' 8" BENDING LENGTH
5' 6" BETWEEN COLUMNS
39.3" WORKING HEIGHT
7.8" STROKE
15.8" DAYLIGHT
4.52"/SECOND RAPID SPEED
.39"-.79"/SECOND BENDING SPEED
4.52"/SECOND RETURN SPEED
25.5" BACKGAUGE (X-AXIS) WORKING DISTANCE
9.8" BACKGAUGE (R-AXIS) LENGTH

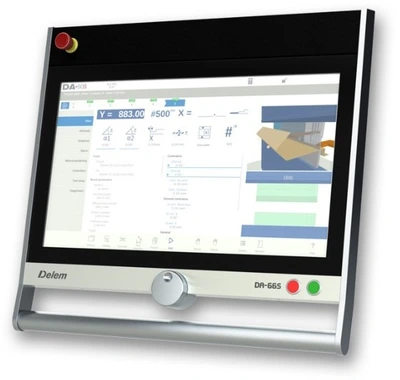

DELEM DA-66S CNC CONTROL
- 2D GRAPHIC TOUCH SCREEN PROGRAMMING MODE
- 3D IMAGING IN SIMULATION AND PRODUCTION
- 24" HIGH RESOLUTION COLORS
- SUITABLE FOR FULL WINDOWS APPLICATIONS
COMPATIBLE WITH DELEMMODUSYS
- USB AND PERIPHERAL INTERFACING
- USER-SPECIFIC APPLICATION SUPPORT
MULTITASKING COMPETENCIES
- SENSOR BENDING AND CORRECTION INTERFACE

STANDARD FEATURES
- 4 AXIS CNC Y1, Y2, X, R
F. AKAS LC 5 FRONT SAFETY SYSTEM
- SERVO DRIVEN BACKGAUGE SYSTEM (X-R AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- CNC CONTROLLED MOTORIZED CROWNING

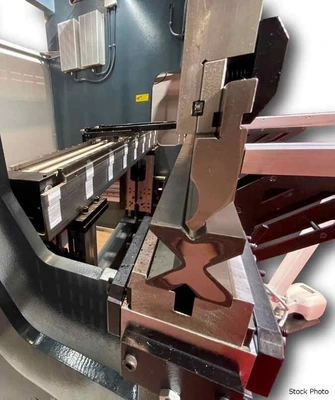

- EUROPEAN STYLE TOOL CLAMPING SYSTEM
- SLIDING FRONT SUPPORT ARMS (WITH T-SLOT AND STOPPER)
- WORLD STANARD ELECTRIC EQUIPMENT
- CROWNING SYSTEM
CNC CONTROLLED, MOTORIZED CROWNING SYSTEM PROVIDES
PERFECT RESULT IN EACH POINT OF BENDING. YOUR BENDING
DIFFERENCES ARISING FROM THE MATERIAL OR OTHER
FACTORS ARE CALCULATED BY MOTORIZED CNC CROWNING
SYSTEM AND THE PERFECT RESULT IS ACHIEVED
- CE SAFETY SYSTEMS
MACHINES ARE DEISGNED IN ACCORDANCE WITH EUROPEAN CE
STANDARDS AND DIRECTIVES IN ORDER TO ENSURE YOUR SAFETY
HYDRAULIC, ELECTRIC, APPROPRIATE HEIGHT COVERS AND LASER
LIGHT CURTAINS. CE SAFETY IN TANDEM MACHINES ARE PROVIDED
W/ LIGHT BARRIERS
- ALUMINUM SHEET SUPPORT SYSTEM
- STRONG FRONT ARM CAN BE MOVED TO THE RIGHT AND LEFT
FIXED AT THE DESIRED POSITION WITH LINEAR SLIDE AND ROLLER
SYSTEM. WITH ALUMINUM MITER AND BAR SUPPORT, THE SHEET
MATERIAL CAN BE EASILY MOVED TO THE MACHINE

DELEM DA-66S CNC CONTROL
- 2D GRAPHIC TOUCH SCREEN AND PROGRAMMING MODE
- 3D IMAGING IN SIMULATION AND PRODUCTION
- 24" HIGH RESOLUTION COLORS
- SUITEABLE FOR FULL WINDOWS APPLICATIONS
COMPATIBLE WITH DELEMMODUSYS
- USB AND PERIPHERAL INTERFACE
- USER SPECIFIC APPLICATION SUPPORT
MULTITASKING COMPETENCIES
- SENSOR BENDING AND CORRECTION INTERFACE

OPTION AVAILABLE - PRICE ON REQUEST
- DELEM 69S CNC CONTROL UNIT
- MOTORIZED X, R, Z1, Z2 AXIS BACKGAUGE SYSTEM
- DELTA X-AXIS +/- 125 MM STROKE
- DURMA LASER ANGLE MEASUREMENT (DAM)
- DBEND 3D BENDING SIMULATION PROGRAM
- QUICK RELEASE CLAMPING SYSTEM
- HYDRAULIC AND PNEUMATIC TOOL CLAMPING SYSTEMS
- ROBOT INTEGRATION
- SPECIAL PACKING FOR OVERSEAS SHIPMENTS

- HYDRAULIC OIL REQUIRED
