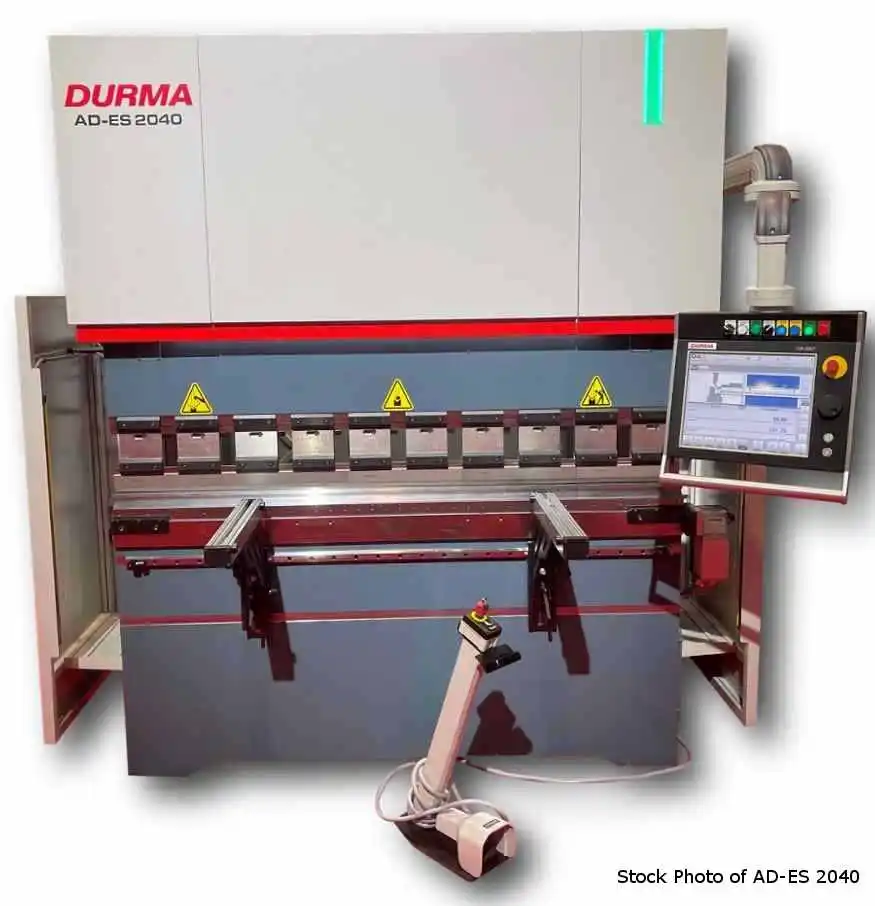

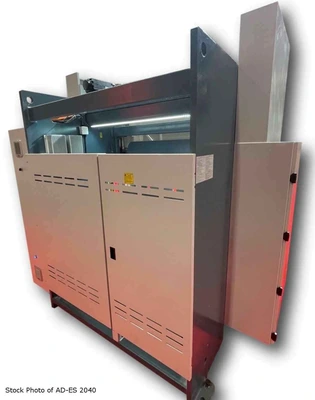

NEW DURMA AD-ES 1240

DURMA (NEW) MODEL AD-ES 1240 ELECTRICAL PRESS BRAKE

44.1 US TONS
4' 1" BENDING LENGTH
3' 5" BETWEEN COLUMNS
39.3" WORKING HEIGHT
7.87" STROKE
17.32" DAYLIGHT
9.84" THROAT DEPTH
272"/MINUTE RAPID SPEED
24" - 47"*/MINUTE BENDING SPEED
*WHEN EQUUIPPED WITH A ROBOT
272"/MINUTE RETURN SPEED
25.59" BACKGAUGE (X-AXIS) LENGTH
9.84" BACKGAUGE (R-AXIS) LENGTH

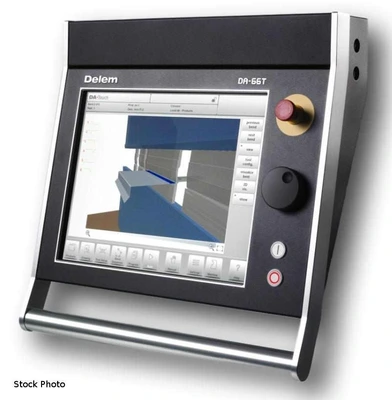

DELEM DA-66S CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 24" HIGH RESOLUTION COLOR TFT
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING AND CORRECTION INTERFACE
- PROFILE-S2D OFFLINE SOFTWARE

STANDARD FEATURES
- SERVO MOTORS PROVIDING HIGH SPEED AND HIGH PRECISION
- 4-AXIS CNC Y1-AXIS, Y2-AXIS, X-AXIS AND R-AXIS
- FIESSLER LC5 LASER FINGER SAFETY - MANUAL HT ADJUST
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN AND EUROPEAN STYLE DIES)
- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P97.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- 2 BACKGAUGE FINGER BLOCKS
- LED WORK LIGHT ON TOP RAM

OPTIONS AVAILABLE - PRICE ON REQUEST
- DELEM DA-69S CNC CONTROL PROFILE T3D SOFTWARE
- 4-AXIS BACKGAUGE X = 25.6" X, R, Z1, Z2
- 4 + 1 AXIS BG X, R, Z1, Z2 DELTA X +/- 4.9"
- MECHANICAL SHEET SUPPORT TABLE
- AIR CONDITIONING FOR ELECTRICAL CABINET
- LASER ANGLE MEASUREMENT SYSTEM
ADJUSTS PARAMETERS THROUGH BEND CYCLE
EXACT BENDING WITHOUT OPERATOR'S INTERVENTION
PROVIDES THE TARGET ANGLE WITH SINGLE BENDING
PREVENTS MATERIAL AND TIME LOSS
- ROBOT PREPARATION
- HYDRAULIC AND PNEUMATIC TOOL CLAMPING SYSTEMS
- QUICK-RELEASE CLAMPING SYSTEM
- ADDITIONAL BACKGAUGE FINGERS
- ADDITIONAL SLIDING FRONT SUPPORT ARMS
- DBEND 3D OFFLINE SOFTWARE PACKAGE
CAD/CAM IMPORTING AND SIMULATION

HYDRAULIC OIL REQUIRED
