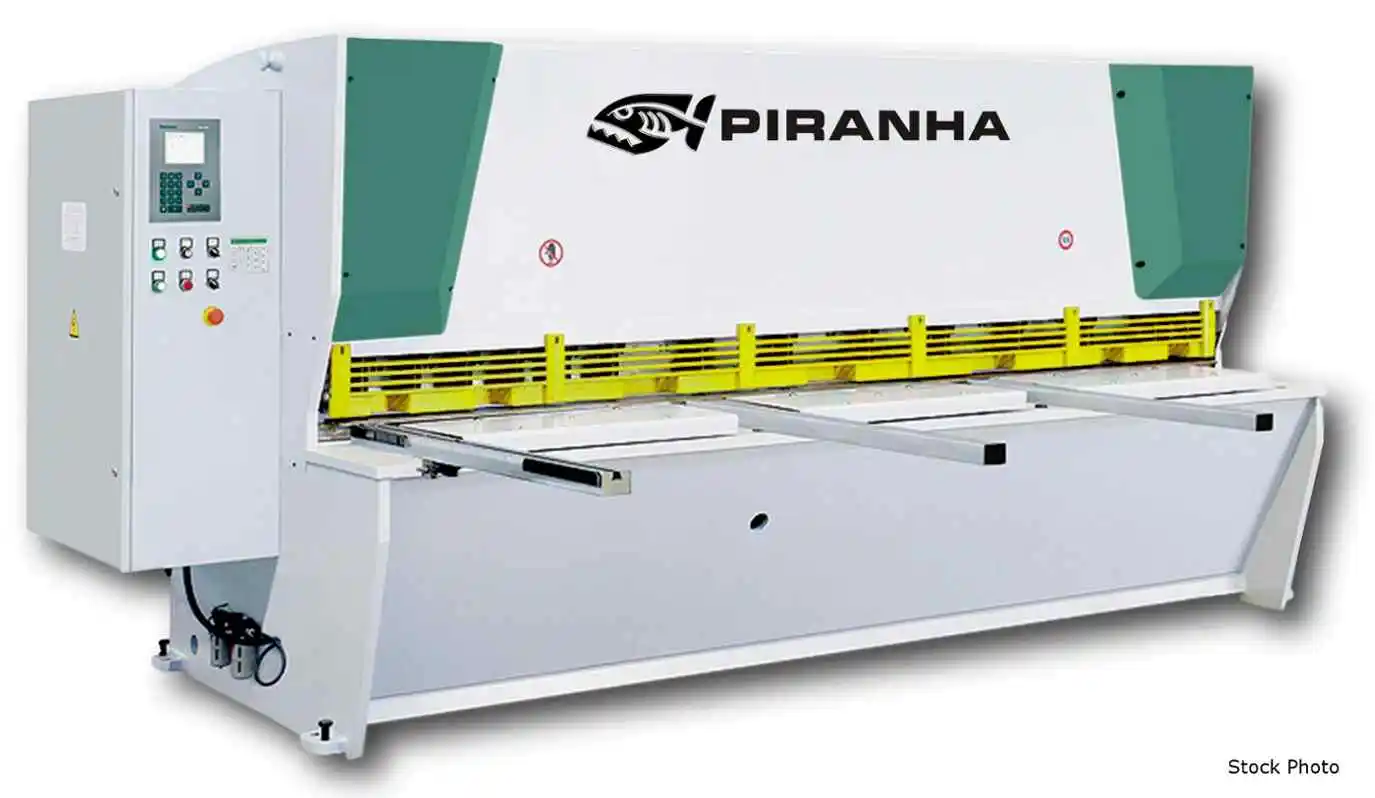

NEW PIRANHA 1/4 X 13
Overview
Specifications
| Dimensions | 190 X 70 X 82 | 190 X 70 X 82 |
|---|---|---|
| Weight | 19,500 | 19,500 |
PIRANHA (NEW) MODEL 1/4" X 13' HYDRAULIC
GUILLOTINE SHEAR
CAPACITY
- 1/4 MILD STEEL
- 1/8 STAINLESS STEEL
- 13' CUT LENGTH
- 0.5-2.5 DEGREE RAKE ANGLE
- 10 PER MINUTE FULL STROKES NO LOAD
- 39" BACK GUAGE LENGTH
- 20 # HOLD DOWN CYLINDERS
- 120 GALLONS OIL CAPACITY
- 15 HP
STANDARD FEATURES
- GUILLOTINE STYLE SHEAR W/CUTTING CAPACITY
1/4' X 13'
- CNC BLADE GAP ADJUSTMENT
- CNC RAKE ANGLE ADJUSTMENT
- LEUZE LIGHT CURTAIN/PHOTOCELL SWITCH
- 3 FRONT SHEET SUPPORTS
- BACKGAUGE DRIVEN BY AC MOTOR/WBALL SCREW AND
LINEAR ROD GUIDES
STRUCTURAL FEATURES
- EUROPEAN DEISGN
- GUILLOTINE STYLE
- STREE RELIEVED
- MACHINED IN ONE SET UP TO ASSURE PARRALLELISM
AND VERTICALITY OF ALL MOUNTING SURFACES
- 3 FRONT SHEET SUPORTS
RAM
- 3 POINT ROLLER GUIDE SYSTEM
HYDRAULIC SYSTEM
- HYDRAULIC SYSTEM FROM BOSCH/REXROTH
- OVERLOAD PROTECTION
- SIGHT GLASS ON TANK FOR EASY OIL LEVEL CHECKS
ELECTRICAL SYSTEM
- ELECTRICAL COMPONENTS ARE SOURCED TO ENSURE
RELIABILITY, LONGEVITY, AND COMMON OFF THE SHELF
REPLACEMENTS
- STANDARD FOOT PEDESTAL
CNC CONTROLLER
- DELEM DAC 360
