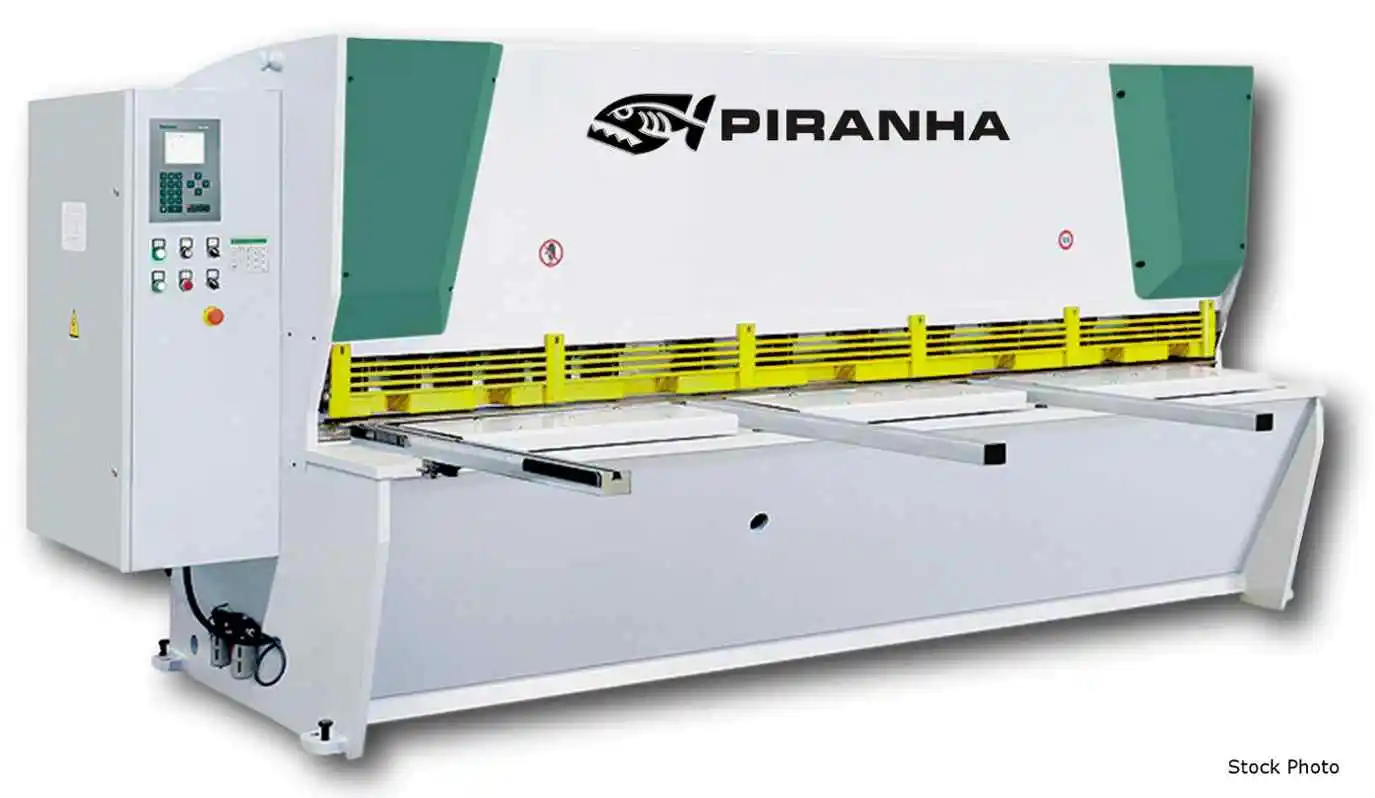

NEW PIRANHA 1/4 X 10

PIRANHA (NEW) MODEL 1/4" X 10' HYDRAULIC
GUILLOTINE SHEAR

CAPACITY
- 1/4 MILD STEEL
- 1/8 STAINLESS
10' CUT LENGTH
0.5-2 DEGREE RAKE ANGLE
9 PER MINUTE FULL STROKE NO LOAD
39" BACK GUAGE LENGTH
16 # HOLD DOWN CYCLINDERS
79 GALLONS OIL CAPACITY
10 HP

STANDARD FEATURES
- 1/4" X 10' CUTTING CAPACITY GUILLOTINE
STYLE SHEAR
- CNC BLADE GAP ADJUSTMENT
- CNC RAKE ANGLE ADJUSTMENT
- LEUZE LIGHT CURTAIN/PHOTOCELL SWITCH
- 3 FRONT SHEET SUPPORTS
- BACKGAUGE DRIVEN BY AC MOTOR W/BALL SCREW
AND LINEAR ROD GUIDES

STRUCTURAL FEATURES
- EUROPEAN DESIGN
- GUILLOTINE STYLE
- STRESS RELIEVED
- MACHINED IN ONE SET UP TO ASSURE PARALLELISM
AND VERTICALITY OF ALL MOUNTING SURFACES
- 3 FRONT SHEET SUPPORTS
- 3 POINT ROLLER GUIDE SYSTEM
HYDRAULIC SYSTEM
- HYDRAULIC SYSTEM FROM BOSCH/REXROTH
- OVERLOAD PROTECTION
- SIGHT GLASS ON TANK FOR EASY OIL LEVEL CHECKS
BACKGAUGE SYSTEM
- AC MOTOR DRIVE WITH BALL SCREW AND LINEAR ROD
GUIDES
- ELECTRICAL COMPONENTS ARE SOURCED TO ENSURE
RELIABILITY, LONGEVITY AND COMMON OFF THE SHELF
REPLACMENTS
- STANDARD FOOT PEDESTAL
CNC CONTROLLER
- DELEM DAC 360
