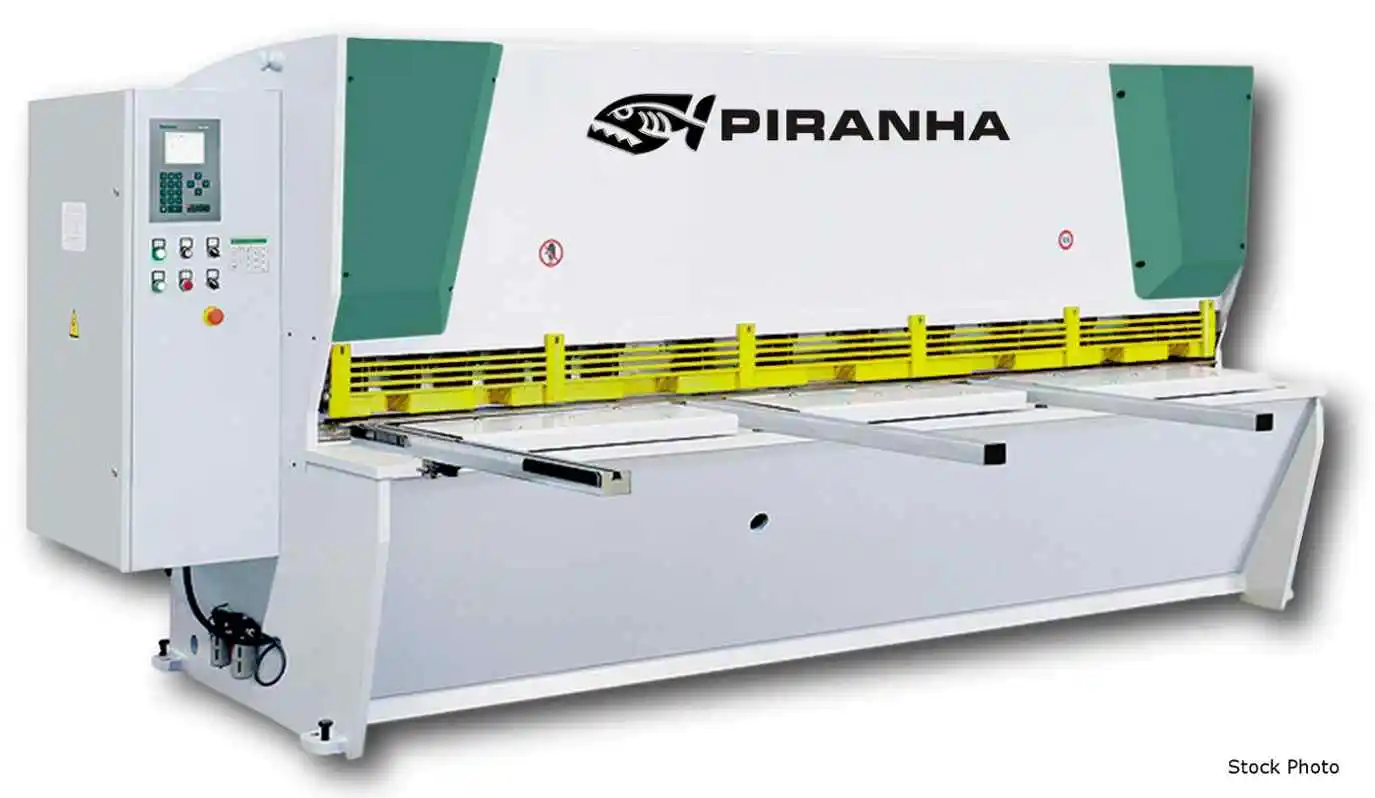

NEW PIRANHA 1/4 X 8

PIRANHA (NEW) MODEL 1/4" X 8' HYDRAULIC
GUILLOTINE SHEAR

1/4" MILD STEEL
1/8" STAINLESS
8' CUT LENGTH
0.5-2.5 DEGREE RAKE ANGLE
12 PER MINUTE FILL STROKE NO LOAD
39" BACK GAUGE LENGTH
14 # HOLD DOWNS

STANDARD FEATURES
- GUILLOTINE STYLE SHEAR W/CUTTING CAPACITY
1/4" X 8'
- CNC BLADE GAP ADJUSTMENT
- CNC RAKE ANGLE ADJUSTMENT
- LEUZE LIGHT CURTAIN/PHOTOCELL SWITCH
- 3 FRONT SHEET SUPPORTS
- BACKGAUGE DRIVEN BY AC MOTOR W/BALL SCREW AND
LINEAR ROD GUIDES
- 10 HP

STRUCTURAL FEATURES
- EUROPEAN DESIGN
- GUILLOTINE STYLE
- STREE RELIEVED
- MACHINED IN ONE SET UP TO ASSURE PARALLELISM
AND VERTICALITY OF ALL MOUNTING SURFACES
- 3 FRONT SHEET SUPPORTS
RAM
- 3 POINT ROLLER GUIDE SYSTEM
HYDRAULIC SYSTEM
- HYDRAULIC SYSTEM FROM BOSCH/REXROTH
- OVERLOAD PROTECTION
- SIGHT GLASS ON TANK FOR EASY OIL LEVEL CHECKS
BACK GUAGE SYSTEM
- AC MOTOR DRIVE WITH BALL SCREW AND LINEAR ROD
GUIDES
- ELECTRICAL COMONENTS ARE SOURCED TO ENSURE
RELIABILITY, LONGEVITY, AND COMMON OFF THE SHELF
REPLACEMENTS
- STANDARD FOOT PEDERSTAL
CNC CONTROLER
- DELEM DAC 360
