| Dimensions | 83 X 66 X 91 | 83 X 66 X 91 |
| Weight | 3,200 | 3,200 |

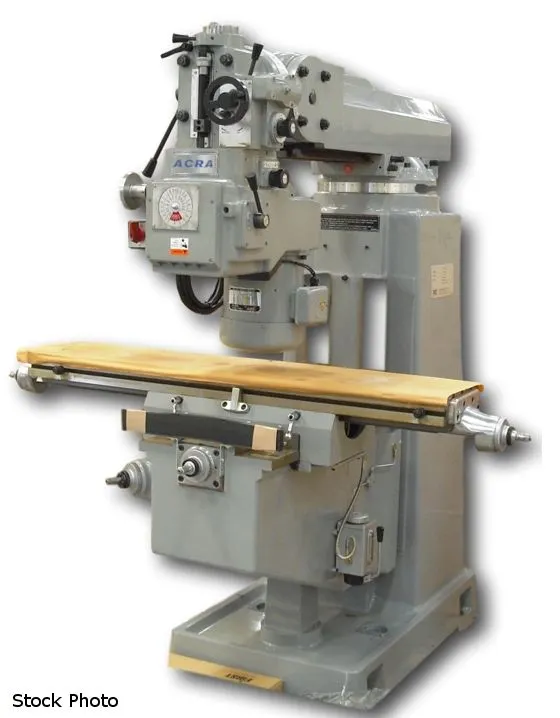

ACRA (NEW) MODEL LCTM2 VARIABLE SPEED VERTICAL
MILL
10" X 54" TABLE
990 LB TABLE LOAD
39" X, 16-1/4 Y, 5" Z TRAVEL
16" KNEE TRAVEL
22.4" SPINDLE TO TABLE
#40NST SPINDLE NOSE
THREE 0.625" X 2.5" T SLOTS
13" - 31.5" THROAT
6.5" - 22.4" SPINDLE GAUGE LINE TO TABLE TOP
60-4500 RPM VERTICAL SPEED
0.0016 / 0.0031 / 0.0063" QUILL FEED
5 HP
STANDARD EQUIPMENT
- HARDENED GROUND WAYS AND TABLE
- QUILL HEAT TREAT HARDENED AND CHROMED
OPTIONS AVAILABLE - PRICE ON REQUEST
- DIGITAL READOUTS - ACU-RITE, NEWALL, SONY
- DRO INSTALLATION
- POWER FEED X AXIS ALIGN
- POWER FEED X AXIS SERVO
- POWER FEED Y AXIS SERVO
- POWER FEED Z AXIS SERVO
Power: 230/460 (3-Phase)
