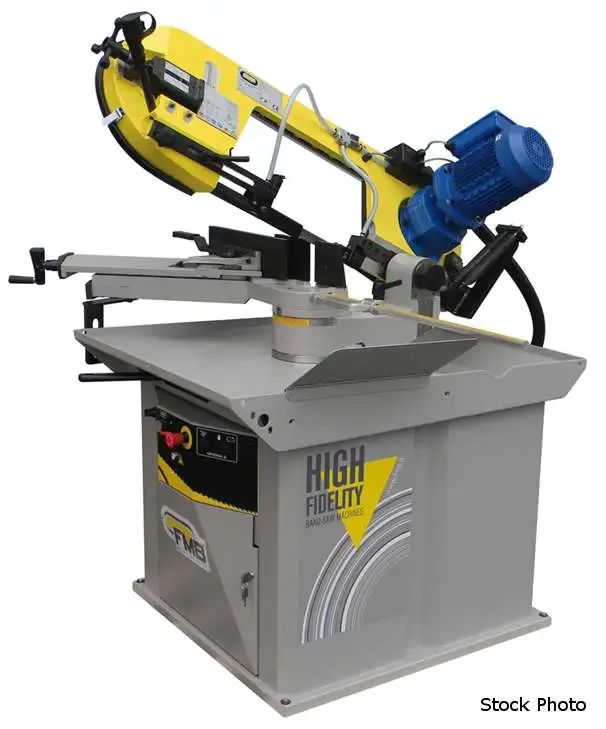

NEW PAT MOONEY FMB ANTARES

PAT MOONEY (NEW) MODEL FMB ANTARES
PRECISION GEAR-DRIVEN SAW

FMB BAND SAWS COMBINE THE
- ADVANTAGES OF A CIRCULAR COLD SAW
- SPEED OF AN ABRASIVE SAW
- CAPACITY OF A TRADITIONAL BAND SAW

8' 10" X 1" X 0.035" BLADE SIZE
115 AND 230 FPM BLADE SPEEDS
23" LENGTH STOP
1.75 HP SAW MOTOR WITH
- 220 OR 440 VOLTS, 3 PHASE
- 24 VOLT CONTROL VOLTAGE
MANUAL PULL DOWN

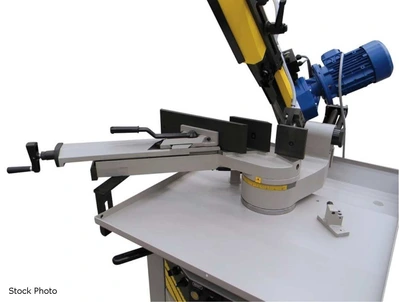

VISE IS STATIONARY FOR LEFT RIGHT MITERS

CAPACITY @ 0 DEGREES
- 7-7/8" ROUND
- 9" X 7-7/8" RECTANGLE
- 7-7/8" X 7-7/8" SQUARE

CAPACITY @ 45 DEGREES RIGHT
- 7" ROUND
- 7-7/8" X 5-1/2" AND 5-1/3" X 7" RECTANGLES
- 6-7/8" X 6-7/8" SQUARE

CAPACITY @ 60 DEGREES RIGHT
- 4" ROUND
- 4" X 4" SQUARE

CAPACITY @ 45 DEGREES LEFT
- 5-1/2" ROUND
- 5" X 5-2/3" AND 6-2/3" X 4" RECTANGLES
- 5-1/3" X 5-1/3" SQUARE

STANDARD FEATURES AND EQUIPMENT

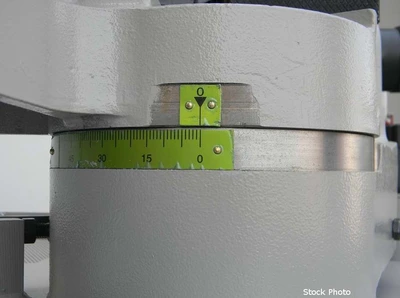

- SWIVEL SAW HEAD WITH PRECISION PROTRACTOR
- HEAVY-DUTY MACHINE BASE WITH LOCKING CABINET

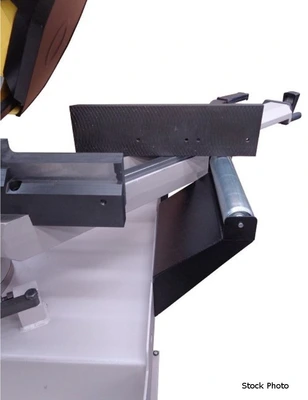

- QUICK-ACTING CLAMP

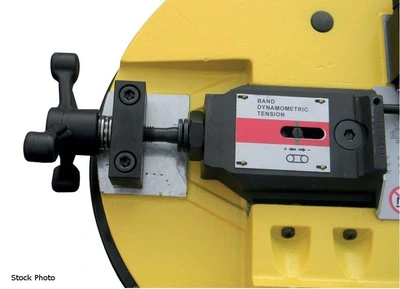

- MECHANICAL BLADE TENSION WITH INDICATOR
- PRECISION CARBIDE BLADE GUIDES ROLLER GUIDES
- SAW DRIVE VIA GEAR REDUCTOR
- CASE HARDENED AND GROUND HELICAL GEARS

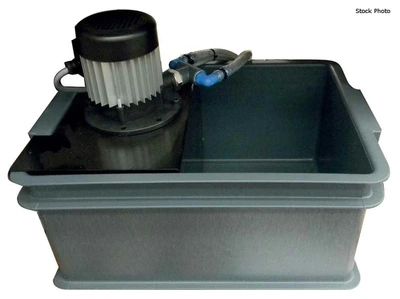

- FLOOD COOLANT SYSTEM
- 2-SPEED MOTOR
- FMB COBALT BAND SAW BLADE
- OPERATING MANUAL

OPTIONS AVAILABLE - PRICE ON REQUEST
- 110 VOLT, 1 PHASE, 1 SPEED - 230 FPM
- GRAVITY FEED
- LASER LIGHT FOR THE CUT LINE
- SPRAY MIST SAW BLADE LUBRICATION
- DIGITAL DISPLAY OF THE CUTTING ANGLE
- CONVEYORS AND LENGTH STOPS
Power: 220/440 (3-Phase)
