NEW DURMA AD-SERVO 60600

DURMA (NEW) MODEL AD-SERVO 60600 CNC HYBRID SERVO/HYDRAULIC PRESS BRAKE

661 US TONS
19' 10" BENDING LENGTH
16' 8" BETWEEN COLUMNS
39.37" PIT REQUIRED BELOW GRADE
39" TABLE HEIGHT
6" TABLE WIDTH
14.3" STROKE
27.5" DAYLIGHT
16" THROAT DEPTH
189"/MINUTE Y-AXIS RAPID SPEED
15"/MINUTE Y-AXIS WORKING SPEED
189"/MINUTE Y-AXIS RETURN SPEED
0.0004" RAM REPEATABILITY
827"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
29.5" BACKGAUGE (X-AXIS) WORKING DISTANCE
709"/MINUTE BACKGAUGE (R-AXIS) WORKING SPEED
9.84" BACKGAUGE (R-AXIS) WORKING HEIGHT
14.75 HP MOTOR X2

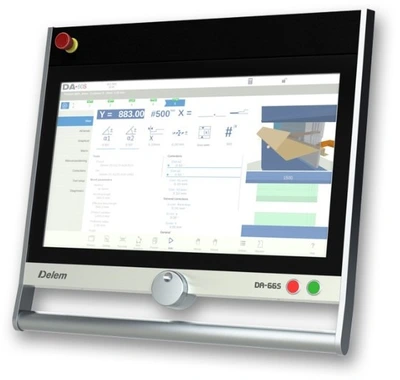

DELEM DA-66S CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 24" HIGH RESOLUTION COLOR TFT
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING AND CORRECTION INTERFACE
- PROFILE-S2D OFFLINE SOFTWARE

STANDARD EQUIPMENT
- 4 AXES CNC Y1, Y2, X AND R
- FIESSLER LC5 LASER FINGER SAFETY- MAN HT ADJ
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN EUROPEAN STYLE DIES)
- PRECISION HARDENED GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P135.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- CNC CONTROLLED MOTORIZED CROWNING

OPTIONS AVAILABLE - PRICE ON REQUEST
- DELEM DA-69S CNC CONTROL
- DBEND 3D OFFLINE SOFTWARE PACKAGE
CAD/CAM IMPORTING AND SIMULATION
- FIESSLER AKAS-3P MOTORIZED HT ADJ LASER SAFETY
- 29.5" THROAT UPGRADE
- LASER ANGLE MEASUREMENT SYSTEM
ADJUSTS PARAMETERS THROUGH BEND CYCLE
EXACT BENDING WITHOUT OPERATOR'S INTERVENTION
PROVIDES THE TARGET ANGLE WITH A SINGLE BEND
PREVENTS MATERIAL AND TIME LOSS
QUICK-RELEASE CLAMPING SYSTEM
- HYDRAULIC PNEUMATIC TOOL CLAMPING SYSTEMS
- MOTORIZED BOTTOM TOOL POSITIONING SYSTEM
- CENTRAL LUBRICATION SYSTEMS (MANUAL/MOTORIZED)
- AIR CONDITIONING FOR ELECTRICAL CABINET
- OIL COOLER/OIL HEATER
- SECOND FOOT PEDAL
- LASER BENDING LINE
- SLIDING SIDE DOORS
- ADDITIONAL BACK GAUGE FINGERS AND
SLIDING FRONT SUPPORT ARMS
- PARKING AREA FOR SUPPORT ARMS
- TANDEM PREPARATION
- SLIDING SIDE DOORS
- CONTROL PANEL ON OPPOSITE SIDE
- 29.5" THROAT

HYDRAULIC OIL ADDITIONAL
