NEW DURMA AD-SERVO 40600

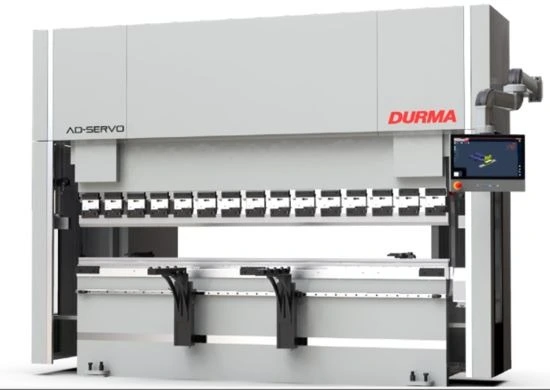

DURMA (NEW) MODEL AD-SERVO 40600 CNC HYDRAULIC PRESS BRAKE

660 US TONS BENDING FORCE
13' 3" BENDING LENGTH
10' 2" BETWEEN COLUMNS
14.37" STROKE
27.56" DAYLIGHT
16" THROAT DEPTH
709"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
9.8" BACKGAUGE (R-AXIS) WORKING DISTANCE

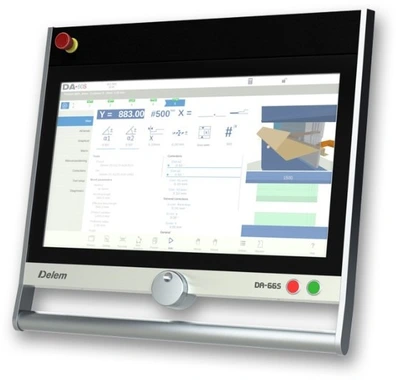

DELEM DA-66S CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 24" HIGH RESOLUTION COLOR TFT
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING AND CORRECTION INTERFACE
- PROFILE-S2D OFFLINE SOFTWARE

STANDARD EQUIPMENT
- 4 AXES CNC Y1, Y2, X AND R
- FIESSLER LC5 LASER FINGER SAFETY- MAN HT ADJ
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN EUROPEAN STYLE DIES)

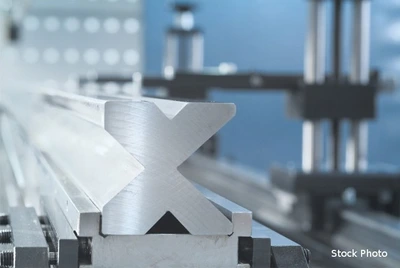

- PRECISION HARDENED GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P135.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- CNC CONTROLLED MOTORIZED CROWNING

OPTIONS AVAILABLE - PRICE ON REQUEST
- DELEM DA-69S CNC CONTROL
- DBEND 3D OFFLINE SOFTWARE PACKAGE
CAD/CAM IMPORTING AND SIMULATION
- FIESSLER AKAS-3P MOTORIZED HT ADJ LASER SAFETY
- 29.5" THROAT UPGRADE
- LASER ANGLE MEASUREMENT SYSTEM
ADJUSTS PARAMETERS THROUGH BEND CYCLE
EXACT BENDING WITHOUT OPERATOR'S INTERVENTION
PROVIDES THE TARGET ANGLE WITH A SINGLE BEND
PREVENTS MATERIAL AND TIME LOSS
QUICK-RELEASE CLAMPING SYSTEM
- HYDRAULIC PNEUMATIC TOOL CLAMPING SYSTEMS
- MOTORIZED BOTTOM TOOL POSITIONING SYSTEM
- CENTRAL LUBRICATION SYSTEMS (MANUAL/MOTORIZED)
- AIR CONDITIONING FOR ELECTRICAL CABINET
- OIL COOLER/OIL HEATER
- SECOND FOOT PEDAL
- LASER BENDING LINE
- SLIDING SIDE DOORS
- ADDITIONAL BACK GAUGE FINGERS AND
SLIDING FRONT SUPPORT ARMS
- PARKING AREA FOR SUPPORT ARMS
- TANDEM PREPARATION
- SLIDING SIDE DOORS
- CONTROL PANEL ON OPPOSITE SIDE
- 29.5" THROAT

HYDRAULIC OIL ADDITIONAL
