| Dimensions | 134 X 44 X 63 | 134 X 44 X 63 |
| Weight | 6,600 | 6,600 |

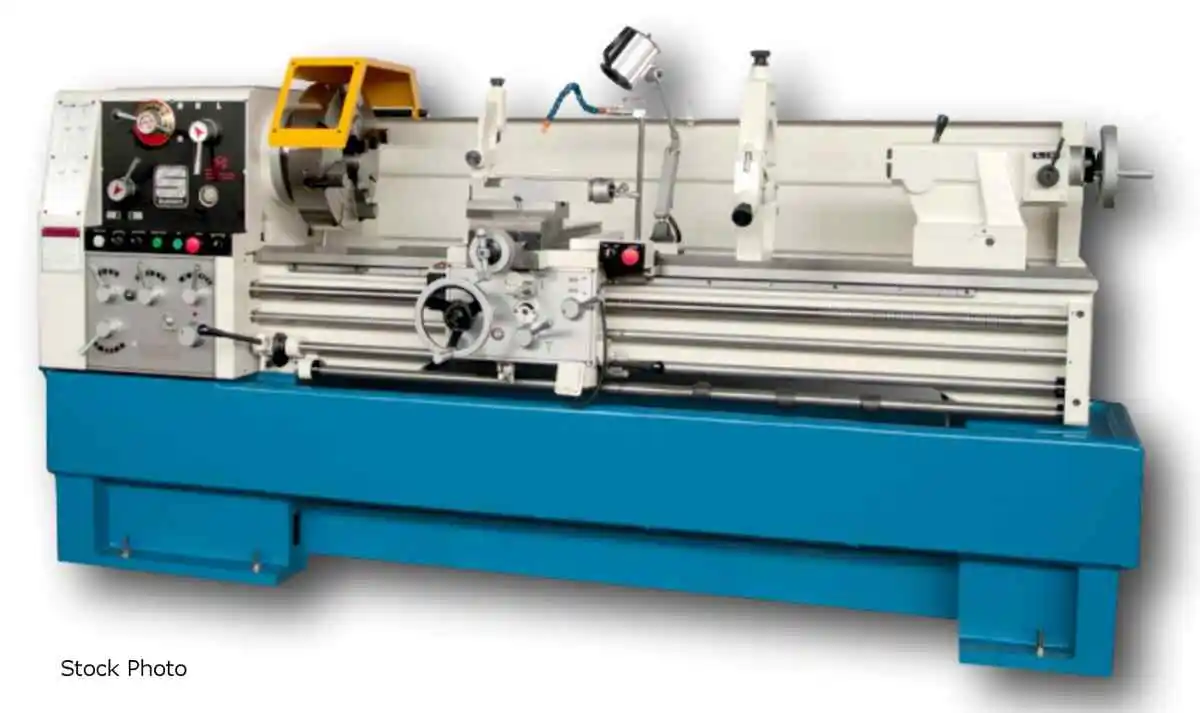

SUMMIT (NEW) MODEL 18-3-80 ENGINE LATHE
CAPACITY
- 18-1/4" SWING OVER BED
- 11-1/4" SWING OVER CROSS SLIDE
- 28" SWING OVER GAP

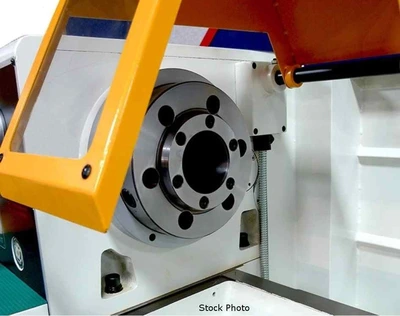

- D1-8 SPINDLE NOSE
- 13" BED WIDTH

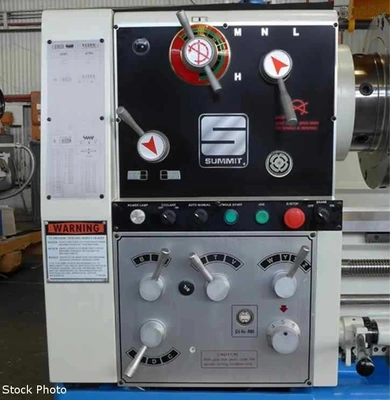

HEADSTOCK
- 3" HOLE THROUGH SPINDLE
- 12 SPINDLE SPEEDS 32-1500 RPM
QUICK CHANGE GEARBOX
- 45 THREADS PER INCH 2 - 72 TPI
- 42 METRIC THREADS 0.2 - 14 IPR
- 32 LONGITUDINAL FEEDS 0.002 - 0.04 IPR
- 32 CROSS FEEDS 0.001 - 0.02 IPR
10 HP MAIN MOTOR
1/8 HP COOLANT PUMP MOTOR
STANDARD EQUIPMENT
- HEAVY RIBBED CAST BED AND BASE
- HARDENED PRECISION GROUND WAYS
- FEED REVERSING AT THE APRON
- FORCED LUBE TO HEADSTOCK, CARRIAGE BEDWAYS
- ELECTRIC BRAKE
- INCH AND METRIC THREADING
- REMOVABLE GAP
- FULL-LENGTH CAST BASE
- DUAL HEADSTOCK AND APRON SPINDLE CONTROL LEVERS
- FULL-LENGTH SPLASH GUARD
- 4-WAY RAPID TRAVERSE
- DIAMETRAL AND MODULE THREAD CAPABILITY
ACCESSORIES INCLUDED
- THREAD DIAL
- STEADY REST
- FOLLOW REST
- COOLANT SYSTEM
- CARRIAGE STOP
- TAPER ATTACHMENT
- 3-JAW CHUCK
- 4-JAW CHUCK
- SERVICE WRENCHES
OPTIONS AVAILABLE - PRICE ON REQUEST
- 12" STEEL BODY
- 3-JAW CHUCK UPGRADED TO 2-PIECE REVERSIBLE JAWS
- QUICK-CHANGE TOOL POST WITH HOLDERS
- DIGITAL READOUT
Power: 220/440 (3-Phase)
