NEW SHARP 26100B

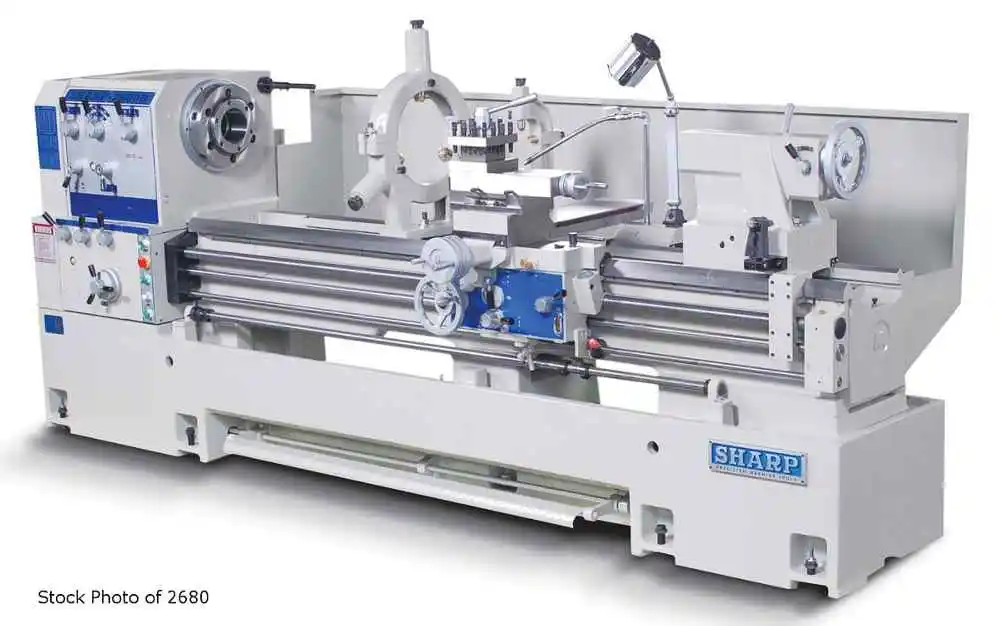

SHARP (NEW) MODEL 26100B PRECISION LATHE

CAPACITY
- 26" SWING OVER BED
- 17.33" SWING OVER CROSS SLIDE
- 35" SWING OVER GAP
- 100" BETWEEN CENTERS

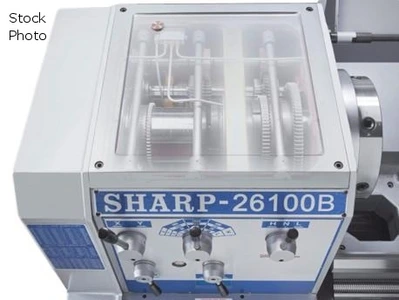

HEADSTOCK
- 10 - 1,000 RPM SPINDLE SPEEDS

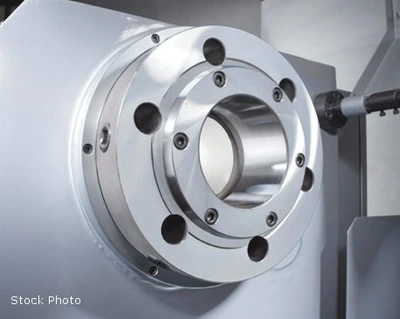

- D1-11 CAMLOCK SPINDLE NOSE
- 4.5" SPINDLE BORE

THREADS AND FEEDS
- 44 INCH THREADS 2 - 56 TPI
- 24 MODULAR THREADS 0.019" - 0.55"
- 36 DIAMETRAL PITCH THREADS 0.0157" - 2.20"
- 0.0022" - 0.032" IPR LONGITUDINAL FEEDS
- 0.00026" - 0.035" IPR CROSS FEEDS
- 4 TPI LEADSCREW PITCH, 1-1/2" DIAMETER

CARRIAGE
- 14.75" CROSS SLIDE TRAVEL
- 8" COMPOUND TRAVEL
- 6" COMPOUND WIDTH

BED
- 153" BED LENGTH
- 15.75" BED WIDTH

TAILSTOCK
- 3" QUILL DIAMETER
- 6.5" QUILL TRAVEL
- MT #5 QUILL CENTER TAPER

15 HP MOTOR, 3 PHASE, 220 OR 440 VOLT

STANDARD EQUIPMENT
- 4-JAW 16" CHUCK
- 20" FACE PLATE
- 4" - 11.5" STEADY REST
- 4-WAY TOOL POST
- COOLANT SYSTEM
- HALOGEN WORK LIGHT
- 4-WAY CARRIAGE STOP
- SPLASH GUARD
- 16" CHUCK GUARD
- TAIL STOCK
- FOLLOW REST
- TOOL KIT
- RAPID TRAVERSE ON LONGITUDINAL - 100" CENTERS
DISTANCE AND UP ONLY

FEATURES

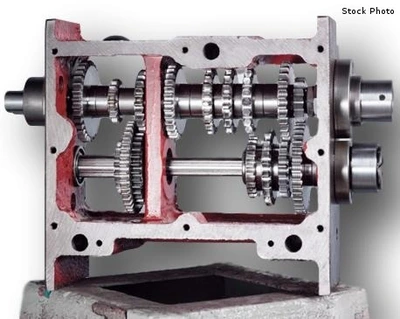

- HARDENED AND GROUND CHROME-MOLY HEADSTOCK GEARS
- 1-PIECE CASTING BED
- CARRIAGE COATED WITH TURCITE
- REMOVABLE GAP INCREASES SWING BY 9"

OPTIONAL ACCESSORIES - PRICE ON REQUEST
- 3 OR 4 JAW CHUCKS
- TAPER ATTACHMENT
- CHUCK GUARD WITH LIMIT SWITCH
- TOOL GUARD WITH LIMIT SWITCH
- LEAD SCREW WRAPPED AROUND SCREW
ACCORDION STYLE
- LEAD SCREW GUARD - COVERS FRONT OF MACHINE BED
- SAFETY COVER AT THE END OF SPINDLE
- UL OR CSA ELECTRICAL COMPONENTS
- UL SPINDLE MOTOR
- CSA PUMP MOTOR
- STEADY REST
- QUICK CHANGE TOOL HOLDER, 7 PIECES, 1.25" TOOL
- MT #5 DUAL-BEARING LIVE CENTER
- 5C LEVER COLLET CLOSER
- 5C COLLET SET, 16 PIECES, 1/8" TO 1/16" X 1/16"
- MICROMETER CARRIAGE STOP
- ROLLER JAWS SET, 3 PIECES
Power: 220/440 (3-Phase)
