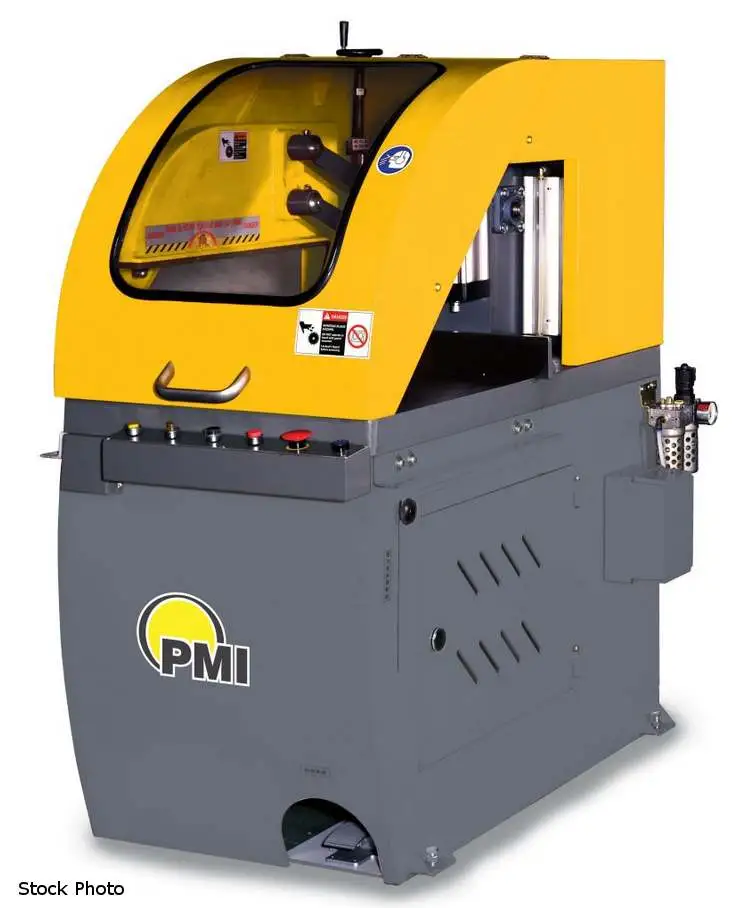

NEW PAT MOONEY PMI-24CE

PAT MOONEY (NEW) MODEL PMI-24 SEMI-AUTOMATIC
STRAIGHT UPCUT COLD SAW

SAWS ALUMINUM PROFILES QUICKLY AND ACCURATELY
WITH A BURR-FREE MIRROR FINISH

24" X 1" BORE SAW BLADE
2000 RPM
45-1/4" X 26" TABLE
29-1/2" WORK HEIGHT
10 HP SAW MOTOR

CUTTING CAPACITY AT 90 DEGREES
- 7.8" ROUND OR SQUARE
- 6.6" X +9.4" RECTANGLE
- 7.08" X 5.66" RECTANGLE
- 0.47" X 15.87" RECTANGLE

MACHINE FEATURES
- FULLY ENCLOSED SAW BLADE CHAMBER
- PRECISION-GROUND WORK TABlE WITH CHROMATE
SURFACE COATING PREVENTS MARRING OF WORK PIECE
- HYDRAULIC CLAMPING SYSTEM WITH ADJUSTABLE
CLAMPING PRESSURE
- SAW BLADE FEED CONTROLLED BY HYDRAULIC CYLINDER
- PRECISE MICRO-DRIP BLADE LUBRICATION SYSTEM

SAFETY FEATURES
- MACHINE ENCLOSURE MONITORED BY LIMIT SWITCH
- COVER MUST BE CLOSED FOR SAW TO CYCLE
- TWO-HAND CYCLE START ACTIVATION
- LIMIT SWITCH SHUTS DOWN MACHINE IF OPEN DOOR

EQUIPPED WITH
- TOOL KIT
- KANEFUSA 120T SAW BLADE
- OPERATING MANUAL
