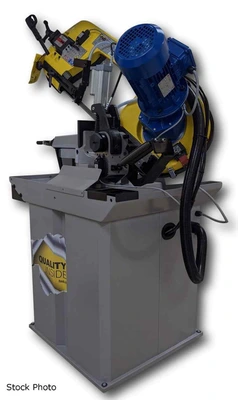

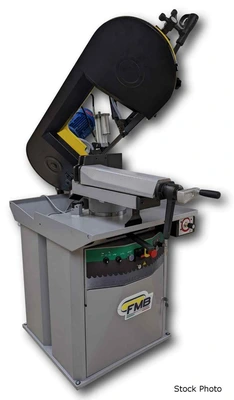

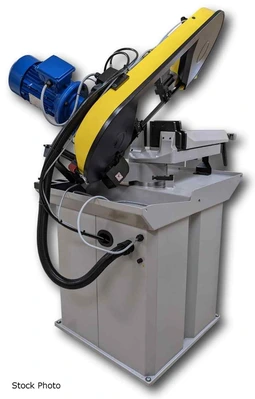

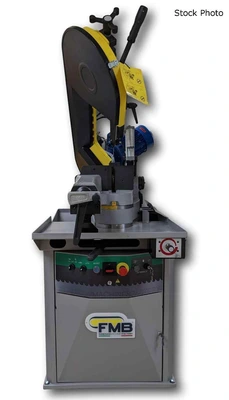

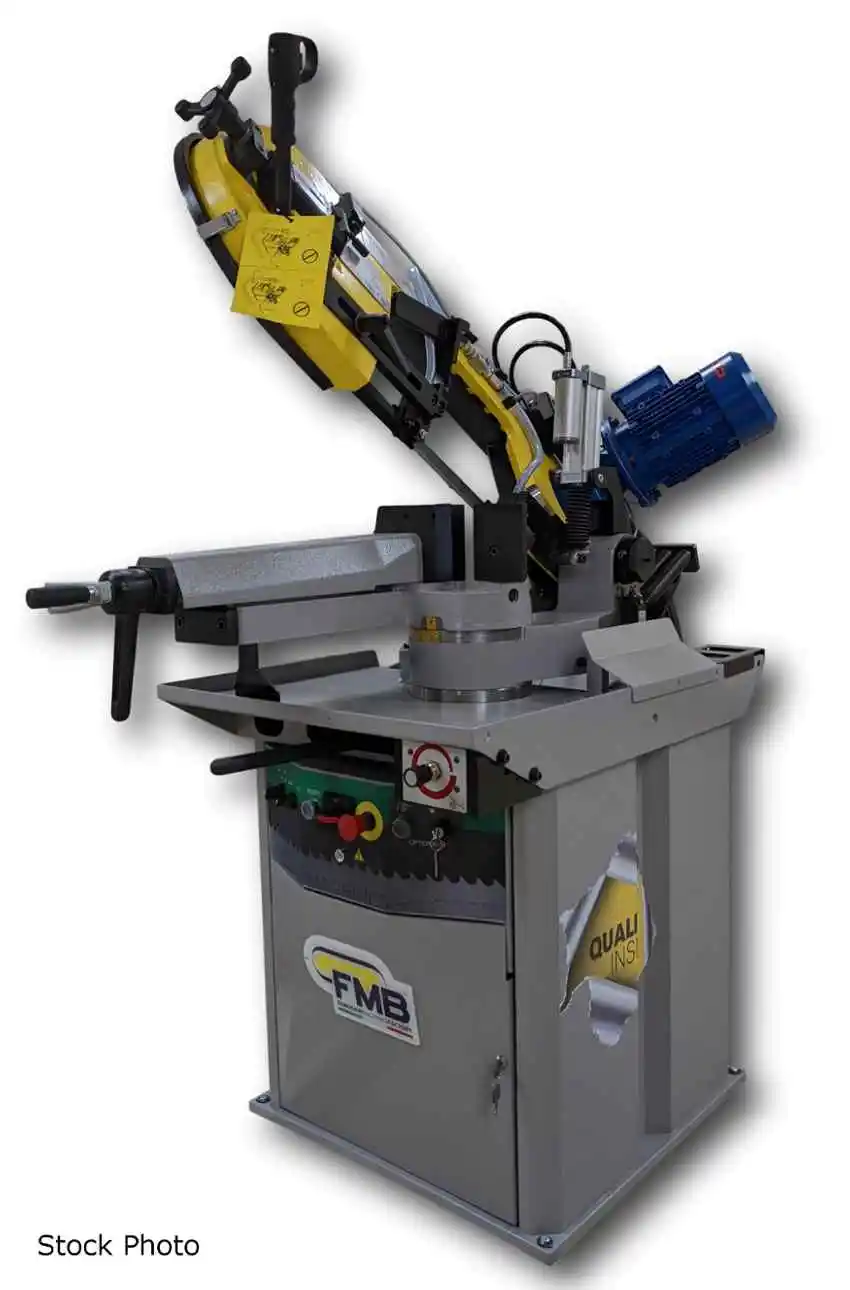

NEW PAT MOONEY FMB TRITON G (GRAVITY FEED)

PAT MOONEY (NEW) MODEL FMB TRITON G (GRAVITY FEED)
PRECISION GEAR DRIVE SAW

FMB MITRE BANDSAWS COMBINE THE ADVANTAGES OF
A CIRCULAR COLD SAW WITH THE SPEED OF AN ABRASIVE
SAW AND THE CAPACITY OF A TRADITIONAL BANDSAW.
DUE TO THE CUTTING ACCURACY AND SQUARENESS, LARGE
CAPACITY, AND PIVOTING SAWHEAD, FMB MITRE BANDSAWS
ARE IDEAL FOR A WIDE RANGE OF IRON, STEEL FAB AND
MACHINE SHOPS.

G (GRAVITY FEED) MODEL ALLOWS
- PULL DOWN FOR FAST SAWING ON LIGHT JOBS
- HYD DOWNFEED FOR HEAVY TUBES, PROFILES SOLIDS
- WALK AWAY MACHINE COMPLETES CUT SHUTS OFF

STANDARD FEATURES EQUIPMENT
- SWIVEL SAW HEAD WITH PRECISION PROTRACTOR MAKES FOR EASY MITER SETUP
MITER FROM 0 TO 60 DEGREES WITH POSITIVE STOPS AT 45 AND 60 DEGREES
- HEAVY CONSTRUCTED CAST SAW HEAD
ABSORBS VIBRATION GENERATED DURING THE SAW CUT, SO THE SAW
CAN PROVIDE SQUARE AND ACCURATE CUTS
COMPLETE SAW HEAD MACHINED IN A SINGLE SET-UP - ENSURES THAT ALL
THE CRITICAL COMPONENTS ARE IN ALIGNMENT
- HEAVY-DUTY SOLID CAST VISE - WITH A QUICK RELEASE CLAMP
- MECHANICAL BLADE TENSIONER WITH A BUILT-IN PRECISION INDICATOR
TO ENSURE THE CORRECT BLADE TENSION IS SET
- PRECISION SAW BLADE GUIDE SYSTEM
4 CARBIDE GUIDES WITH 4 SIDE ROLLER BEARINGS AND 2 TOP
ROLLER BEARINGS
ADJUSTABLE BLADE GUIDE ARM ALLOWS THE MOVEABLE BEARING
AND CARBIDE GUIDE BLOCK TO BE SET CLOSE TO THE MATERIAL BEING CUT
- TRUE DIRECT DRIVE SAW MOTOR - GEAR BOX
REDUCTION GEAR BOX WITH CASE-HARDENED AND PRECISON GROUND
HELICAL GEARS LUBRICATED WITH A LONG-LASTING GREASE

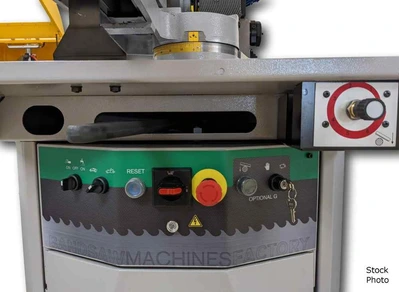

- HEAVY-DUTY MACHINE BASE WITH THE ERGONOMICALLY PLACE CONTROL PANEL
- FLOOD COOLANT SYSTEM
- 5.2 GALLON COOLANT TANK WITH RECIRCULATING PUMP

TECHNICAL DATA
CUTTING CAPACITY AT 0 DEGREE
- 9-1/2" ROUND
- 8-1/4" X 11" RECTANGLE A
- 9-1/2" X 10-1/4" RECTANGLE B
- 9-1/2" X 9-3/8" SQUARE

CUTTING CAPACITY AT 45 DEGREE
- 7-1/4" ROUND
- 5-1/2" X 7" RECTANGLE A
- 8-3/4" X 6-1/2" RECTANGLE B
- 6-3/4" X 6-3/4" SQUARE

CUTTING CAPACITY AT 60 DEGREE
- 4-1/2" ROUND
- 4-1/3" X 4-1/3" RECTANGLE A
- 4-1/3" X 4-1/3" SQUARE

8' 10" X 1" X 0.035" BLADE SIZE
115 FPM AND 230 FPM (110v-230 FPM) SAW BLADE SPEED
1.75 HP SAW MOTOR
32" X 55" FOOTPRINT
38.78" SAW TABLE HEIGHT
5.2 GALLON COOLANT TANK CAPACITY
