NEW PAT MOONEY FMB TRITON

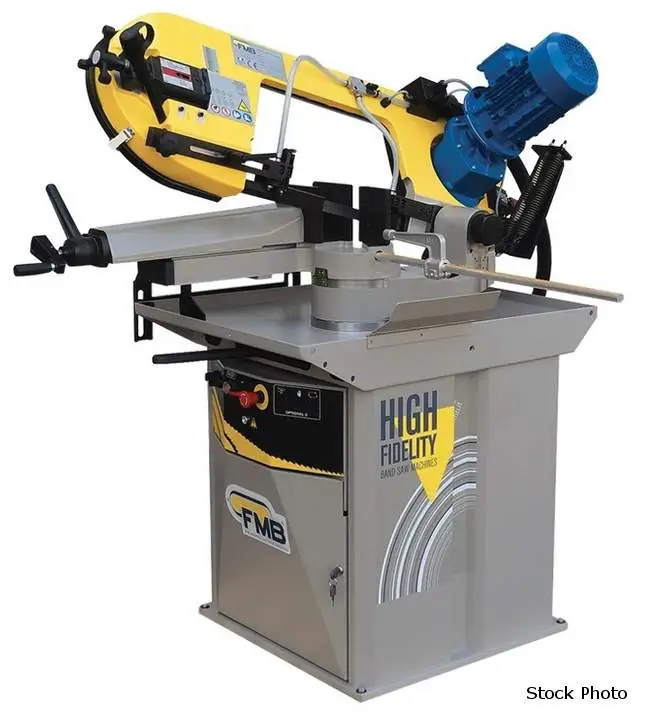

PAT MOONEY (NEW) MODEL FMB TRITON PULL-DOWN
PRECISION GEAR DRIVE SAW

FMB MITRE BANDSAWS COMBINE THE
- ADVANTAGES OF A CIRCULAR COLD SAW
- SPEED OF AN ABRASIVE SAW
- CAPACITY OF A TRADITIONAL BANDSAW

CUTTING CAPACITY AT 0 DEGREES
- 9-1/2" ROUND
- 8-1/4" X 11" AND 9-1/2" X 10-1/4" RECTANGLES
- 9-1/2" X 9-1/2" SQUARE

CUTTING CAPACITY AT 45 DEGREES
- 7-1/4" ROUND
- 5-1/2" X 7" AND 8-3/4" X 6-1/2" RECTANGLES
- 6-3/4" X 6-3/4" SQUARE

CUTTING CAPACITY AT 60 DEGREES
- 4-1/2" ROUND
- 4-1/3" X 4-1/3" SQUARE

8' 10" X 1" X .035" BLADE
23" LENGTH STOP
1.5 HP MOTOR WITH
- 220 OR 440 VOLTS, 3 PHASE
- 2 SPEEDS (115 230 FPM)

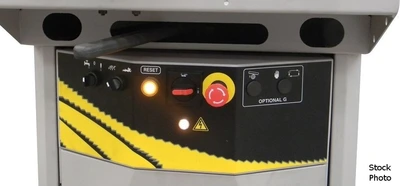

- 24 VOLT CONTROL VOLTAGE

STANDARD FEATURES EQUIPMENT

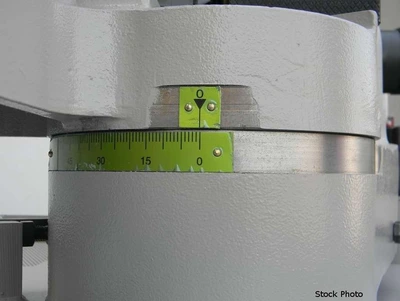

- SWIVEL SAW HEAD WITH PRECISION PROTRACTOR
- HEAVY-DUTY MACHINE BASE
- QUICK-ACTING CLAMP

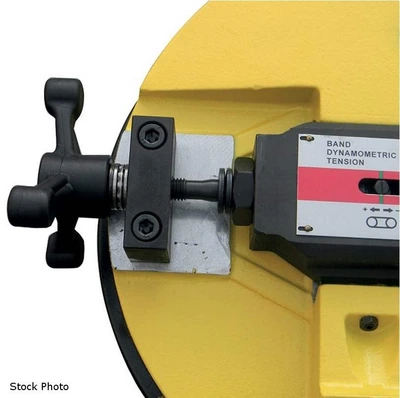

- MECHANICAL BLADE TENSION W/BUILT-IN INDICATOR

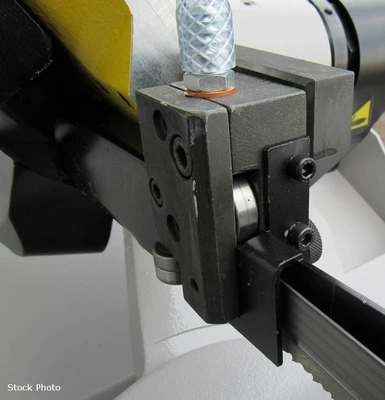

- PRECISION CARBIDE BLADE GUIDES W/ROLLER GUIDES
- SAW DRIVE VIA GEAR REDUCTOR
- CASE HARDENED GROUND HELICAL GEARS

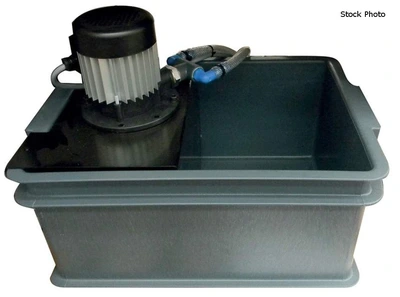

- FLOOD COOLANT SYSTEM
- FMB COBALT BAND SAW BLADE
- OPERATING MANUAL

OPTIONS AVAILABLE - PRICE ON REQUEST
- 110 VOLTS, 1 PHASE, 1 SPEED (230 FPM)
- LASER LIGHT FOR THE CUT LINE
- SPRAY MIST SAW BLADE LUBRICATION
- DIGITAL DISPLAY OF THE CUTTING ANGLE
- CONVEYORS AND LENGTH STOPS
