NEW SHARP TMV-I-MP2

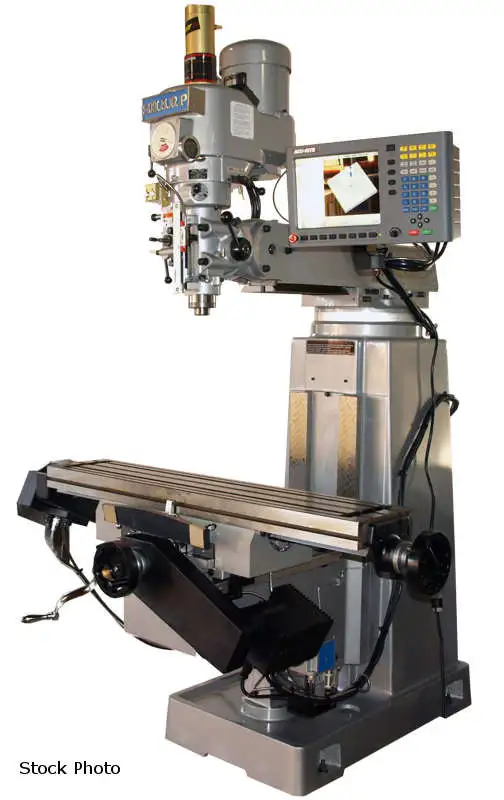

SHARP (NEW) MODEL TMV-I-MP-2 VERTICAL KNEE MILL

TABLE
- 50" X 10"
- (3) 5/8" T-SLOTS

CAPACITY
- 34" TABLE TRAVEL (X AXIS)
- 15.5" SADDLE TRAVEL (Y AXIS)
- 5" QUILL TRAVEL
- 19" RAM TRAVEL
- 15.3" KNEE TRAVEL
- 9.8" TO 28.3" SPINDLE TO COLUMN
- 1-1/2" - 17" SPINDLE NOSE TO TABLE

SPINDLE
- NST 40 TAPER
- 60 - 4,500 RPM VARIABLE SPEED DRIVE
- 0.0015, 0.003 AND 0.006 IPR QUILL SPEEDS
- 0.0002" TIR ACCURACY
- 360 DEGREE HEAD SWIVEL
- 45 DEGREE HEAD TILT LEFT TO RIGHT
- 45 DEGREE HEAD TILT UP AND DOWN
- 5 HP MOTOR
- 220 OR 440 VOLTS
- 3 PHASE

STANDARD EQUIPMENT
- FRONT AND REAR WAY COVERS
- AUTOMATIC LUBE SYSTEM
- HARD-CHROME WAYS
- HARDENED AND GROUND BOX WAYS
- TOOL KIT

OPTIONS AVAILABLE - PRICE ON REQUEST
- DVS HEAD WIRED 220 VOLT
- 440 VOLT TRANSFORMER - 3HP
- 6" KURT VISE WITH SWIVEL BASE
- R-8 COLLECT SET
- CLAMPING KIT
- RIGHT ANGLE MILLING ATTACHMENT
- RISER BLOCK POWER DRAWBAR
- COOLANT SYSTEM WITH CHIP PAN AT BASE
- POWER DRAWBAR
- HALOGEN WORK LIGHT
Power: 220/440 (3-Phase)
