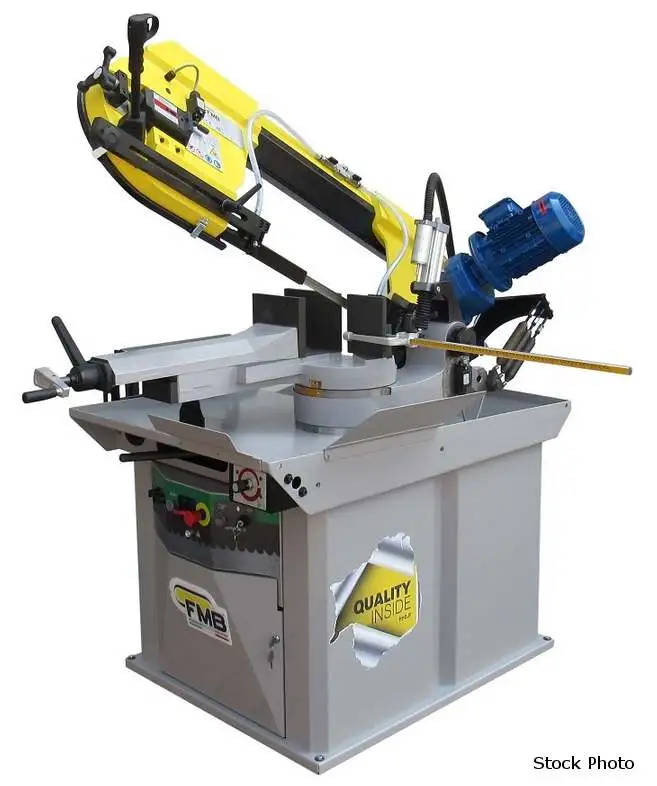

NEW PAT MOONEY FMB TITAN GV

PAT MOONEY (NEW) MODEL FMB TITAN GV PRECISION GEAR DRIVEN SAW

FMB MITRE BANDSAWS COMBINE THE
- ADVANTAGES OF A CIRCULAR COLD SAW
- SPEED OF AN ABRASIVE SAW
- CAPACITY OF A TRADITIONAL BANDSAW

10' 10" X 1" X 0.035" BLADE
65 TO 328 FPM INFINITELY VARIABLE BLADE SPEED
GRAVITY FEED
23" LENGTH STOP
2 HP MOTOR WITH
- 220 VOLT, 3 PHASE
- 24 VOLT CONTROL VOLTAGE

CAPACITY AT 0 DEGREES
- 10-1/4 ROUND
- 10-1/4 X 14-1/2 RECTANGLE
- 10-1/4 X 10-1/4 SQUARE

CAPACITY AT 45 DEGREES
- 10-1/4 ROUND
- 4-3/4" X 11-1/2" RECTANGLE
- 10-1/4" X 10-1/4" SQUARE

CAPACITY AT 60 DEGREES
- 7 ROUND
- 3-1/2" X 7-1/2" RECTANGLE
- 7 X 7 SQUARE

STANDARD FEATURES
- SWIVEL HEAD WITH PRECISION PROTRACTOR
- INFINITE VARIABLE SPEED MOTOR
- HEAVY-DUTY MACHINE BASE
- QUICK-CLAMP VISE

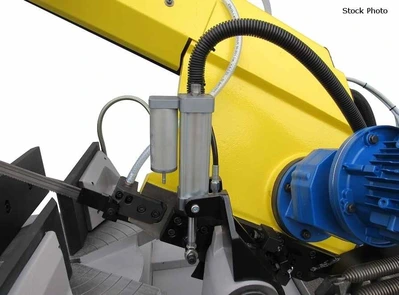

- CONTROLLED HYDRAULIC DOWN FEED OF SAW BLADE

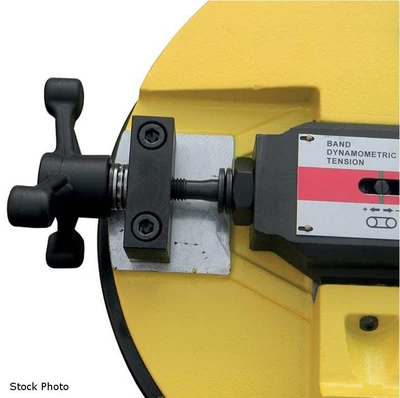

- MECHANICAL BLADE TENSION WITH INDICATOR
- PRECISION CARBIDE BLADE GUIDES W/ROLLER GUIDES
- SAW DRIVE VIA GEAR REDUCTOR
- CASE HARDENED AND GROUND HELICAL GEARS

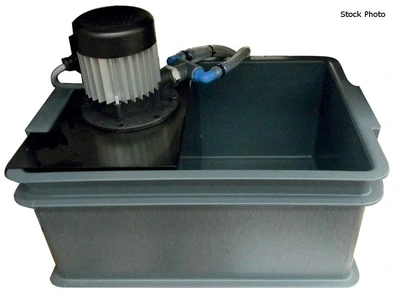

- FLOOD COOLANT SYSTEM
- FMB COBALT BAND SAW BLADE
- OPERATING MANUAL

IDEAL FOR A WIDE RANGE OF IRON, STEEL FAB AND
MACHINE SHOPS DUE TO CUTTING ACCURACY AND
SQUARENESS, LARGE CAPACITY, AND PIVOTING SAW HEAD

OPTIONS AVAILABLE - PRICE ON REQUEST
- LASER LIGHT FOR THE CUT LINE
- SPRAY MIST SAW BLADE LUBRICATION
- DIGITAL DISPLAY OF THE CUTTING ANGLE
Power: 220 (3-Phase)
