| Dimensions | 84 X 78 X 92.4 | 84 X 78 X 92.4 |
| Weight | 3,300 | 3,300 |

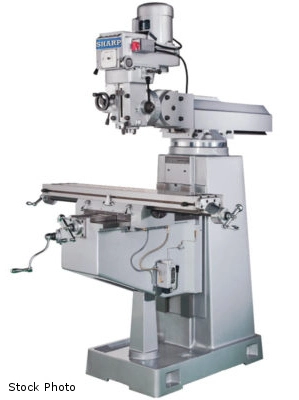

SHARP (NEW) MODEL TMV-I VERTICAL KNEE MILL
TABLE
- 54" X 10"
- THREE 5/8" T-SLOTS
- 26" WIDE SADDLE
CAPACITY
- 39" TRAVEL (X AXIS)
- 16.3" TRAVEL (Y AXIS)
- 5" QUILL TRAVEL (Z AXIS)
- 18.5" RAM TRAVEL
- 15.3" KNEE TRAVEL
- 9.8" TO 28.3" THROAT DISTANCE
- 5.375" - 16.9" SPINDLE GAGE LINE TO TABLE TOP
SPINDLE
- #40 SPINDLE NOSE TAPER
- 60 - 4,500 RPM VARIABLE SPEED DRIVE
- 0.0015, 0.003 AND 0.005 IPR QUILL FEED
- 0.0002" TIR ACCURACY
- 90 DEGREE HEAD TILT (RIGHT TO LEFT)
- 45 DEGREE HEAD TILT (UP AND DOWN)
- 5 HP MOTOR
- 220 OR 440 VOLTS, 3 PHASE
STANDARD EQUIPMENT
- HARDENED AND GROUND BOX WAYS ON SADDLE COLUMN
- FRONT AND REAR RUBBER WAY COVERS
- ONE-SHOT LUBRICATION SYSTEM
- MANUAL DRAWBAR
- TOOL KIT
FEATURES
- DUAL COOLING FANS
- MEEHANITE CASTING
- ABEC-7 SUPER PRECISION SPINDLE BEARINGS
- TURCITE - B COATING (X, Y)
- CROSS WAY COVER
- SELF-LUBRICATING MOTOR SHAFT
OPTIONS AVAILABLE - PRICE ON REQUEST
- AUTO LUBE SYSTEM
- POWER FEED
- POWER FEED SYSTEMS ON SADDLE, KNEE
- DIGITAL READOUT SYSTEM
- POWER DRAWBAR
- COOLANT SYSTEM WITH CHIP PAN
- 4" OR 7" RISER BLOCK
- RIGHT ANGLE MILLING ATTACHMENT
- AUTO LUBE SYSTEM
- HALOGEN WORK LIGHT
- MILLING VISE
- CLAMPING KIT
