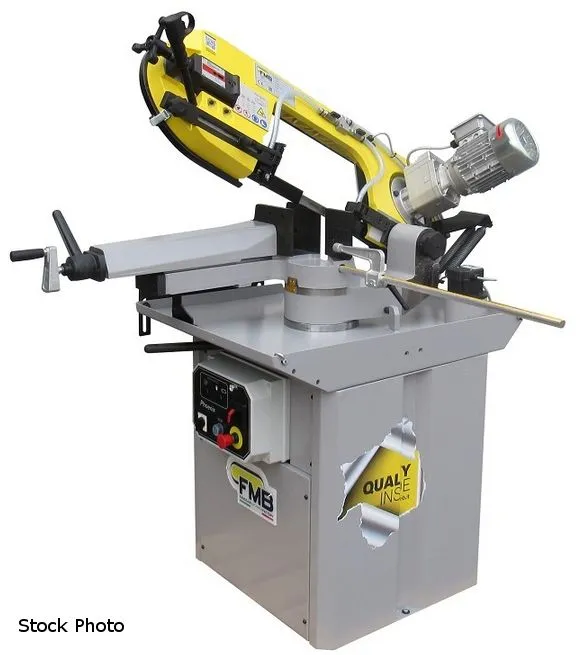

NEW PAT MOONEY FMB PHOENIX PULL DOWN

PAT MOONEY (NEW) MODEL FMB PHOENIX PULL DOWN
PRECISION GEAR-DRIVEN SAW

FMB MITRE BANDSAWS COMBINE THE
- ADVANTAGES OF A CIRCULAR COLD SAW
- SPEED OF AN ABRASIVE SAW
- CAPACITY OF A TRADITIONAL BANDSAW

8' X 1" X 0.035" BLADE
115 AND 230 FPM BLADE SPEEDS
23" LENGTH STOP
1 HP MOTOR WITH
- 220 OR 440 VOLTS, 3 PHASE
- 24 VOLT CONTROL VOLTAGE

CAPACITY @ 0 DEGREES
- 8-5/8" ROUND
- 5" X 10" AND 8-1/2" X 9" RECTANGLES
- 8-1/2" X 8-1/2" SQUARE

CAPACITY @ 45 DEGREES
- 6" ROUND
- 8" X 5-1/4" RECTANGLE
- 6" X 6" SQUARE

CAPACITY @ 60 DEGREES
- 3-1/25" ROUND
- 3-1/2" X 3-1/2" SQUARE

STANDARD FEATURES AND EQUIPMENT

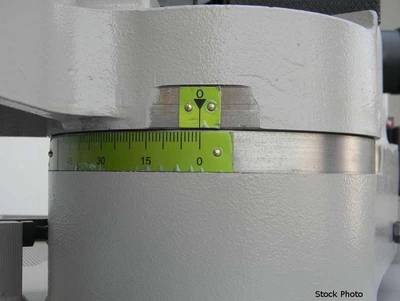

- SWIVEL SAW HEAD WITH PRECISION PROTRACTOR
POSITIVE STOPS AT 45 AND 60
- HEAVY-DUTY MACHINE BASE

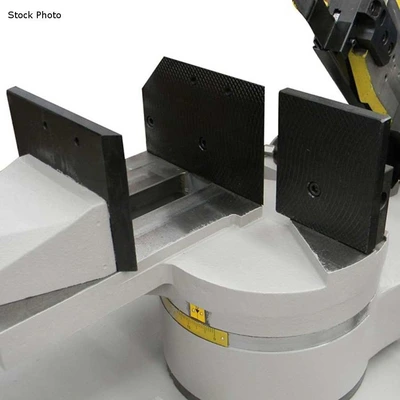

- QUICK-ACTING CLAMP

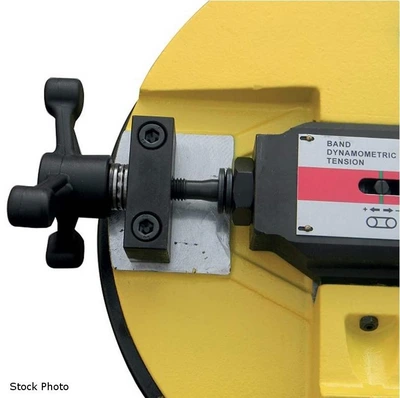

- MECHANICAL BLADE TENSION WITH INDICATOR
- PRECISION CARBIDE BLADE GUIDES W/ROLLER GUIDES
- SAW DRIVE VIA GEAR REDUCTOR
- CASE HARDENED AND GROUND HELICAL GEARS
- FLOOD COOLANT SYSTEM
- 2-SPEED MOTOR
- FMB COBALT BANDSAW BLADE
- OPERATING MANUAL

FEATURES OF PULL-DOWN MODEL
- FASTEST SAWING AND OPERATION ON TUBES,
PROFILES AND SMALL SOLIDS

OPTIONS AVAILABLE - PRICE ON REQUEST
- 110 VOLTS, 1 PHASE, 1 SPEED (230 FPM)
- LASER LIGHT FOR THE CUT LINE
- SPRAY MIST SAW BLADE LUBRICATION
- DIGITAL DISPLAY OF THE CUTTING ANGLE
- CONVEYORS AND LENGTH STOPS
Power: 220/440 (3-Phase)
