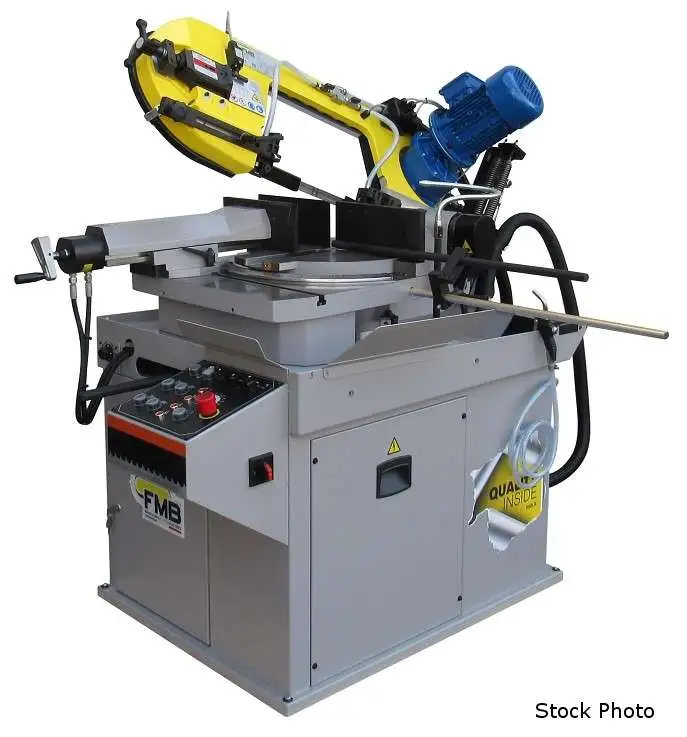

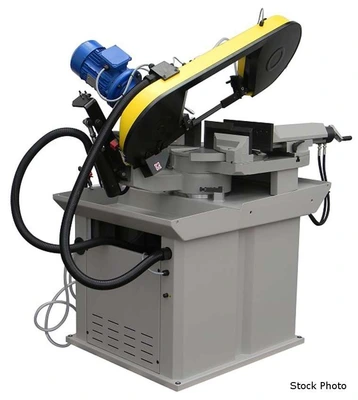

NEW PAT MOONEY FMB OMEGA

PAT MOONEY (NEW) MODEL FMB OMEGA PRECISION
GEAR-DRIVEN SEMI-AUTOMATIC BANDSAW

8'10" X 1" X 0.035" BLADE
52-394 FPM VARIABLE BLADE SPEED
2 HP
220 VOLTS/3 PHASE, 440 VOLTS/3 PHASE, 220 V/1 PH

CAPACITY @ 0 DEGREES
- 9-1/2" ROUND
- 8" X 12-1/4" AND 9-1/2" X 10-5/8" RECTANGLES
- 9-1/2" X 9-1/2" SQUARE

CAPACITY @ 45 DEGREES RIGHT
- 6-7/8" ROUND
- 9-3/8" X 6" RECTANGLE
- 6-5/8" X 6-5/8" SQUARE

CAPACITY @ 60 DEGREES
- 4-1/3" ROUND
- 5-1/2" X 4" RECTANGLE
- 4" X 4" SQUARE

CAPACITY @ 45 DEGREES LEFT
- 6" ROUND
- 5" X 5-5/8" AND 9-3/8" X 2-1/2" RECTANGLES
- 5-1/3" X 5-1/3" SQUARE

BUNDLE CAPACITY
- 4-3/4" X 11"

STANDARD FEATURES AND EQUIPMENT

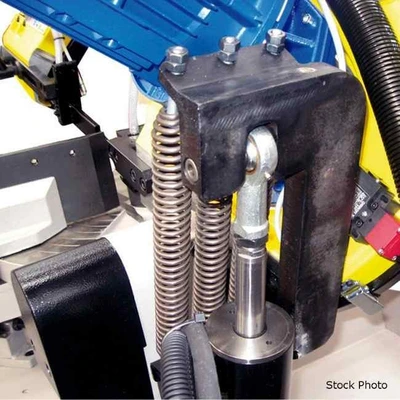

- HYDRAULIC SAW HEAD AND CLAMPING
- INVERTER CONTROLLED INFINITELY VARIABLE SPEEDS
- REMOVABLE VISE
- SWIVEL SAW HEAD WITH A PRECISION PROTRACTOR
- HEAVY DUTY MACHINE BASE WITH LOCKING CABINET
- POSITIVE HYDRAULIC DOWNFEED OF SAW BLADE
- AUTOMATIC RETURN HEIGHT ADJUSTMENT OF SAW HEAD
- MECHANICAL BLADE TENSION WITH INDICATOR
- PRECISION CARBIDE BLADE GUIDES W/ROLLER GUIDES
- 23" LENGTH STOP

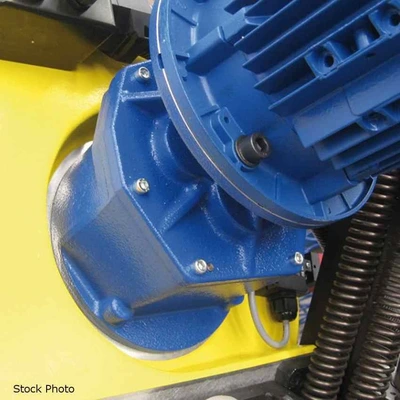

- SAW DRIVE VIA GEAR REDUCTOR
- CASE HARDENED AND GROUND HELICAL GEARS
- FLOOD COOLANT SYSTEM
- FAST APPROACH
- 24 VOLT CONTROL VOLTAGE
- COBALT BANDSAW BLADE
- OPERATING MANUAL

OPTIONS AVAILABLE - PRICE ON REQUEST
- 220 VOLTS, 1 PHASE, VARIABLE SPEED
- LASER LIGHT FOR THE CUT LINE
- SPRAY MIST SAW BLADE LUBRICATION
- DIGITAL DISPLAY OF THE CUTTING ANGLE
- VISE PRESSURE REGULATION (ADJUSTABLE CLAMPING)
- VERTICAL BUNDLE CLAMPING (MODELS W/HYD CLAMP)
- CONVEYORS AND LENGTH STOPS
Power: 220/440 (3-Phase)
