NEW PAT MOONEY NISHIJIMAX NHC-80
Overview
Specifications
| Dimensions | 81 X 64 X 75 | 81 X 64 X 75 |
|---|---|---|
| Weight | 6,600 | 6,600 |

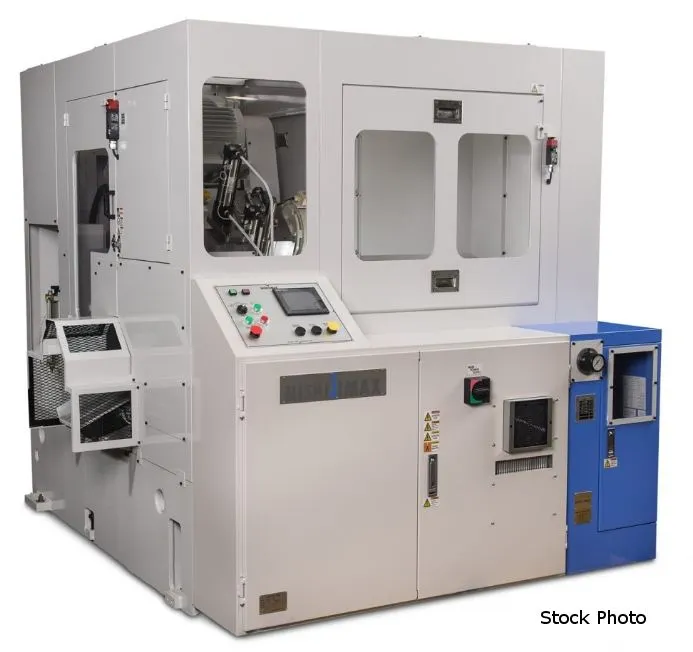

NISHIJIMAX (NEW) MODEL NHC-80 CNC CARBIDE
COLD SAW
CUTTING RANGE
- 0.39" TO 3.15" DIAMETER (10-80 MM)
- 0.59" TO 118" LENGTH (15-3,000 MM)
- 0.59" TO 3.9" TRIM CUT LENGTH (15-99 MM)
- 20' TO 24' SUPPLY BAR LENGTH
- SIGNAL EXIT RAMP FOR TRIM/REMNANT SEPARATION
SAW BLADE
- 11.2"/11.8" DIAMETER
- 5/64" KERF
- 1.26" BORE
- 60, 72 AND 80 TEETH
- 70-200 RPM SAW BLADE

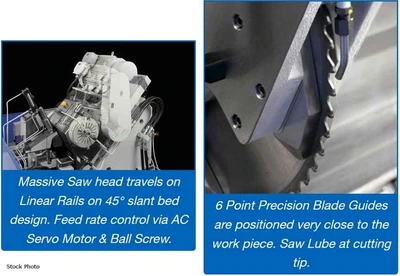

- 45 DEGREE SLANT APPROACH
SAW HEAD FEED
- 2.7 HP SERVO MOTOR
- 65'/MINUTE RAPID FEED
- 0" TO 118"/MINUTE CUTTING FEED
FEED CONTROL
- 78.7 FPM FEED SPEED
- 25.6" FEED STROKE

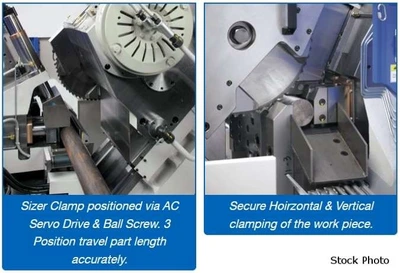

- GRIP AND CARRY METHOD
- 1/2" TO 118" FEED LENGTH
FEATURES
- FREQROL INVERTER DRIVE
- PRECISION TORQUE CONTROL

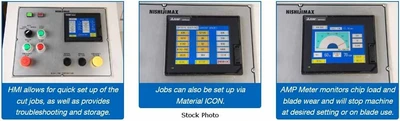

- MITSUBISHI Q SERIES PLC CONTROL

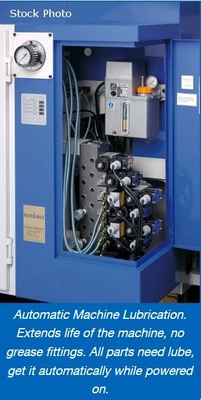

- 5 GALLON HYDRAULIC TANK
- 10.5 HP INDUCTION MOTOR
- VIBRATION FREE (MADE OF HEAVY-DUTY MATERIALS)
- AUTOMATIC SEPARATION OF TRIM CUT REMNANT END
- FULL MACHINE ENCLOSURE
OPTIONS AVAILABLE - PRICE ON REQUEST
- AUTOMATIC CHIP CONVEYOR
- ZERO TRIM CUT SOFTWARE
- BACKGAUGE SOFTWARE
Power: 208 (3-Phase)
