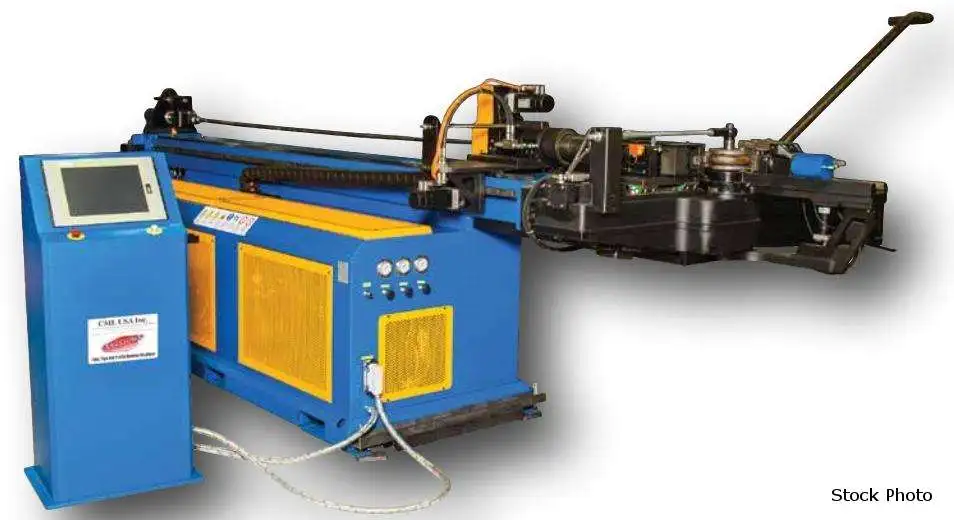

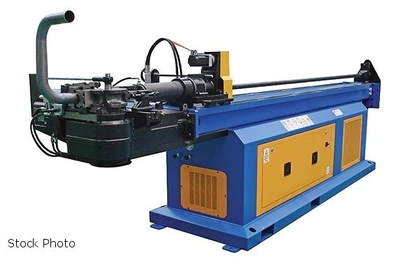

NEW ERCOLINA ERCO BENDER 76

ERCOLINA (NEW) MODEL ERCO BENDER 76
3-AXIS MANDREL PIPE BENDER

3" (.083 WALL) MILD STEEL TUBE CAPACITY
3" (.065 WALL) STAINLESS TUBE CAPACITY
2" (.065 WALL) SQUARE TUBE CAPACITY
2" SCH. 40 MAXIMUM PIPE CAPACITY
11.8" MAXIMUM BENDING RADIUS
1.5 X DIAMETER MINIMUM BENDING RADIUS
210 DEGREE MAXIMUM SHAFT ROTATION
185 DEGREE MAXIMUM BENDING ANGLE
3" TAILSTOCK CAPACITY
13' MAXIMUM MATERIAL LENGTH
12" MIN UNDERHEAD SWING CLEARANCE
59" BENDING HEAD LENGTH
150 BAR NOMINAL HYDRAULIC PRESSURE
125" MAXIMUM CARRIAGE TRAVEL
+/- 0.5 DEGREE BEND ANGLE PRECISION
480 VOLTS, 3 PHASE

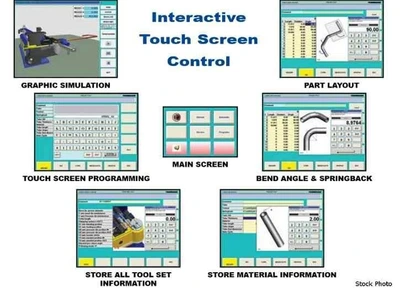

10" INTERACTIVE COLOR TOUCH SCREEN CONTROL
- AUTOMATIC OR MANUAL BEND SEQUENCING
- PROGRAMMABLE BENDING SPEED
- PROGRAMMABLE CARRIAGE MOVEMENT FOR TIGHT RADII
- SYSTEM DIAGNOSTICS
- MULTIPLE LANGUAGE CAPABILITY
- MATERIAL SPRINGBACK SETTINGS FOR EACH ANGLE
- USB FOR UNLIMITED PROGRAM MEMORY STORAGE
- DISPLAYS ABSOLUTE (ABS) OR INCREMENTAL (INC)
POSITIONING WITH INCH OR METRIC READOUT
- ACCEPTS YBC AND XYZ INPUT VALUES
Y - FEEDING ELECTRIC SERVO
B - ROTATION ELECTRIC SERVO
C - BENDING HYDRAULIC CNC

FEATURES
- INDEPENDENT PRESSURE CLAMP DIE ADJUSTMENT
- STANDARD RIGHT HAND BENDING DIRECTION

OPTION AVAILABLE - PRICE ON REQUEST
- 2 METER TABLE EXTENSION
- MANDREL TOOLING SET, 1-1/4" PIPE, 3 CLR
- MANDREL CENTER FORMER 76MM CLR 1-1/4" PIPE
- CLAMP DIE 1-1/4" PIPE
- PRESSURE STEEL DIE 1-1/4" PIPE
- WIPER DIE 76MM CLR 1-1/4" PIPE
- MANDREL KIT, BRONZE, 1-1-4" PIPE 0.140 WALL
- SEGMENTED COLLET 1-1/4" PIPE
- MACHINE TRAINING
Power: 480 (3-Phase)
