AIR CLEANING TECHNOLOGY (NEW) CARTRIDGE DUST

AIR CLEANING TECHNOLOGY (NEW) CARTRIDGE DUST
COLLECTORS

MODEL - # OF FILTERS - SQUARE FEET
ACT-2-2 - 2 FILTERS - 508 FQ FT

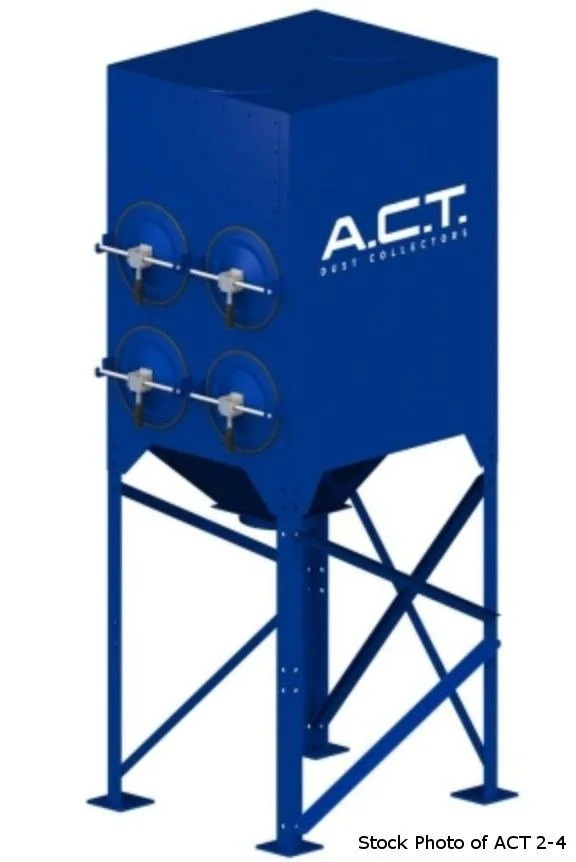

ACT 2-4 - 4 FILTERS - 1,016 SQ FT
ACT 2-8 - 8 FILTERS - 2,032 SQ FT
ACT 2-12 - 12 FILTERS - 3,048 SQ FT
ACT 2-16 - 16 FILTERS - 4,064 SQ FT
ACT 2-24 - 24 FILTERS - 6,096 SQ FT

ACT 3-6 - 6 FILTERS - 1,524 SQ FT
ACT 3-12 - 12 FILTERS - 3,048 SQ FT
ACT 3-18 - 18 FILTERS - 4,572 SQ FT

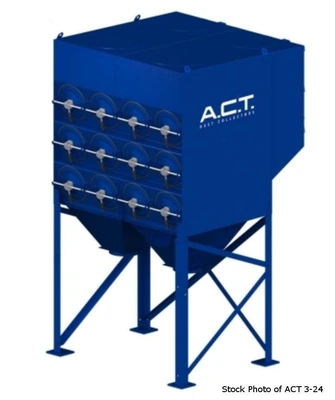

ACT 3-24 - 24 FILTERS - 6,096 SQ FT
ACT 3-36 - 36 FILTERS - 9,144 SQ FT
ACT 3-48 - 48 FILTERS - 12,192 SQ FT
ACT 3-54 - 54 FILTERS - 13,716 SQ FT
ACT 3-72 - 72 FILTERS - 18,288 SQ FT

ACT 4-16 - 16 FILTERS - 4,064 SQ FT
ACT 4-32 - 32 FILTERS - 8,128 SQ FT
ACT 4-48 - 48 FILTERS - 12,192 SQ FT
ACT 4-64 - 64 FILTERS - 16,256 SQ FT
ACT 4-80 - 80 FILTERS - 20,320 SQ FT
ACT 4-96 - 96 FILTERS - 24,384 SQ FT
ACT 4-112 - 112 FILTERS - 28,448 SQ FT
ACT 4-128 - 128 FILTERS - 32,512 SQ FT

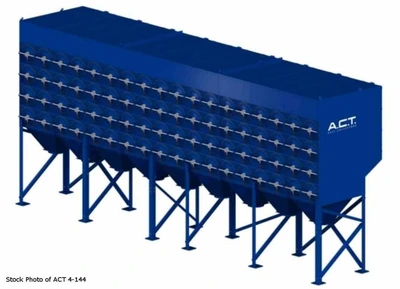

ACT 4-144 - 144 FILTERS - 36,576 SQ FT

ACT 5-20 - 20 FILTERS - 5,080 SQ FT

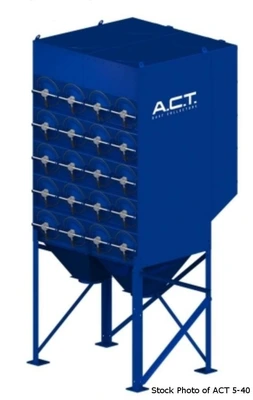

ACT 5-40 - 40 FILTERS - 10,160 SQ FT
ACT 5-60 - 60 FILTERS - 15,240 SQ FT
ACT 5-80 - 80 FILTERS - 20,320 SQ FT
ACT 5-100 - 100 FILTERS - 25,400 SQ FT

STANDARD FEATURES
- FULLY WELDED HEAVY CONSTRUCTION
- CONSTRUCTED OF 7 AND 10 GA CARBON STEEL
- ACTION-LOCK QUICK-RELEASE FILTER DOOR
- NANO-FIBER HI EFFICIENCY CARTRIDGE FILTERS
254 SQUARE FEET OF MEDIA PER CARTRIDGE
- VENTURI-ASSISTED PULSE CLEAN SYSTEM
- EXTERIOR RAIL CARTRIDGE SUPPORTS
- DOWNWARD AIRFLOW TECHNOLOGY
- INTEGRAL LIFTING LUGS
- MATERIAL DISCHARGE WITH SEALING DRUM LID
- DIGITAL SOLID STATE PULSE CONTROL
- MADE IN THE USA
- 5-YEAR WARRANTY

MODEL - DIMENSIONS
ACT-2-2 - 57" X 49" X 118"
ACT 2-4 - 61" X 40" X 127"
ACT 2-8 - 87" X 40" X 127"
ACT 2-12 - 87" X 60" X 127"
ACT 2-16 - 87" X 80" X 127"
ACT 2-24 - 87" X 120" X 127"

ACT 3-6 - 61" X 40" X 146"
ACT 3-12 - 87" X 40" X 146"
ACT 3-18 - 87" X 60" X 146"
ACT 3-24 - 87" X 80" X 146"
ACT 3-36 - 87" X 120" X 146"
ACT 3-48 - 87" X 160" X 146"
ACT 3-54 - 87" X 180" X 146"
ACT 3-72 - 87" X 240" X 146"

ACT 4-16 - 87" X 40" X 164"
ACT 4-32 - 87" X 80" X 164"
ACT 4-48 - 87" X 120" X 164"
ACT 4-64 - 87" X 160" X 164"
ACT 4-80 - 87" X 200" X 164"
ACT 4-96 - 87" X 240" X 164"
ACT 4-112 - 87" X 280" X 164"
ACT 4-128 - 87" X 320" X 164"
ACT 4-144 - 87" X 360" X 164"

ACT 5-20 - 87" X 40" X 178"
ACT 5-40 - 87" X 80" X 178"
ACT 5-60 - 87" X 120" X 178"
ACT 5-80 - 87" X 160" X 178"
ACT 5-100 - 87" X 200" X 178"

OPTIONS AVAILABLE - PRICE ON REQUEST
- ABRASIVE INLET PLENUM
- COMPLETE LINE OF MOTORS/BLOWERS
- EXHAUSE SILENCERS AND/OR DAMPERS
- ALTERNATE FILTER MEDIA OPTIONS
- ROTARY AIRLOCKS
- SCREW CONVEYORS
- EXPLOSION VENTS
- SOLENOID HEATER KIT
- CUSTOM COLOR PAINT OR COATINGS
- MULTI-MODULE HOPPERS
- STEEP-SLOPED HOPPERS
- AFTERFILTER HOUSINGS
- BAG-IN/BAG-OUT DESIGN FOR HAZARDOUS DUST
- STAINLESS STEEL CONSTRUCTION
