NEW ALL-FAB POK-07-A

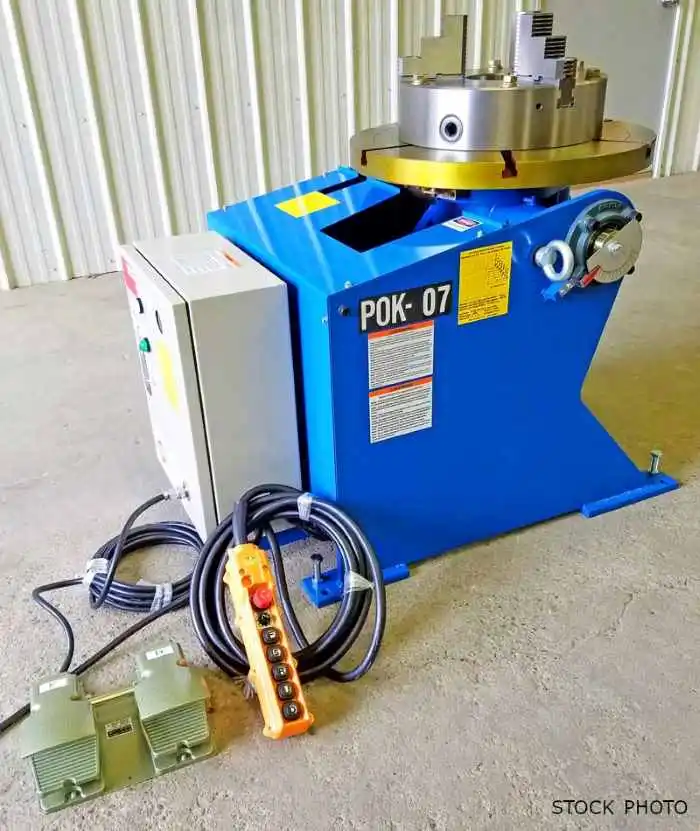

ALL-FAB MAC(NEW) MODEL POK-07-A WELDING POSITIONER

SPECIFICATIONS
-1500 LBS CAPACITY 8" CG AND 8" 1500 LBS
- 12000 IN/LBS MAX. ROTATION TORQUE
- 20850 IN/LBS MAX. TILT TORQUE
- 0-90 DEGREE TABLE TILT
- 360 DEGREE TABLE ROTATION
- 60 HZ TILT SPEED
- 60 DEGREE TEE SLOTS (6)
- 0.1- 1.0 RPM ROTATION SPEED INFINITELY
- 41.3 IN OVERALL LENGTH
- 29.5 IN OVERALL HEIGHT
- 30.5 IN OVERALL WIDTH
- 24 IN TABLE DIAMETER
- 3 PHASE
- 230 / 460 INPUT POWER
- ROTATION MOTOR A.C. INVERTER
- 1100 LBS APPROX WEIGHT
- ANCHOR BOLT HOLES IN BASE (4) FOR
1/2" ANCHOR BOLTS

FEATURES
- POWER TILT
- INFINITELY VARIABLE SPEED TABLE ROTATION
-AC INVERTER ON ROTATION DRIVE W/ LED
FREQUENCY DISPLAY FOR SPEED ADJ
- PUSH BUTTON PENDENT CONTROL FOR POWER TILT
AND TABLE ROTATION
- 800 AMP WELDING GROUND AT 50% DUTY CYCLE
- FOR AND REV FOOT CONTROL FOR TABLE ROTATION
- MACHINED TABLE W/ CENTERING GROOVES
- EXTRA HEAVY WORM GEAR DRIVES AND CONSTRUCTION
- TILT GEAR SHAFT SUPPORTED AT EACH END
FOR LONG LIFE
- 360 DEGREE TABLE ROTATION CW AND CCW W/ POWER
ON INDICATOR LIGHT
- HIGH FREQUENCY PROTECTED FOR TIG WELDING
- TWICE THE TILT/ROTATION TORQUE FOR STANDARD
1500 LB UNITS

OPTIONS INCLUDED

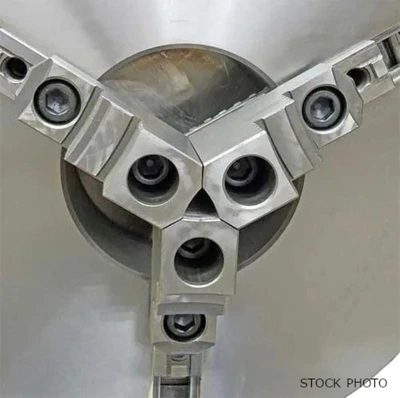

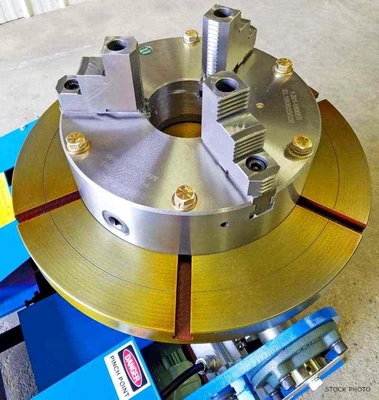

- GATOR M16 3-JAW SELF-CENTERING SCROLL CHUCK
- HARDENED REVERSIBLE AMERICAN STANDARD JAWS
- MT 16 WELDING CHUCK HAS A CLAMPING RANGE OF
.39 - 16.250 IN.
Power: 230/460 (3-Phase)
