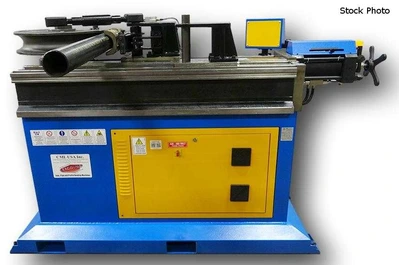

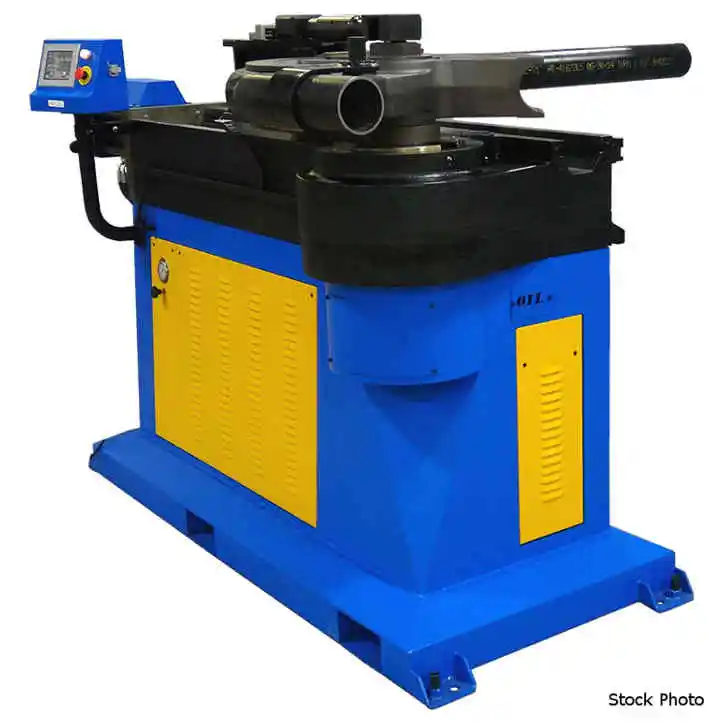

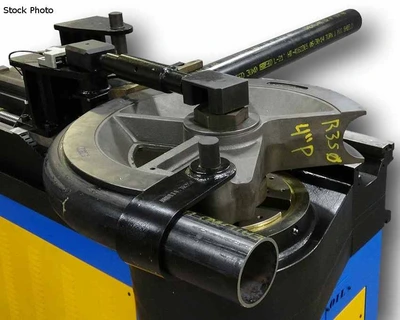

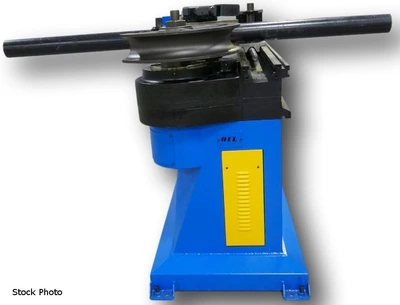

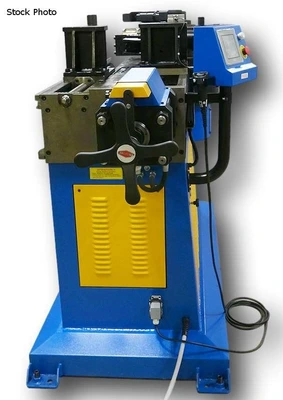

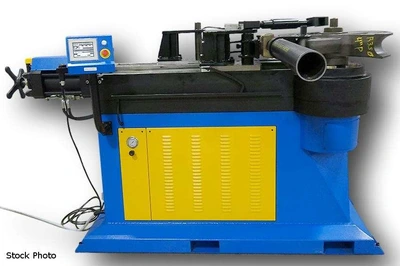

NEW ERCOLINA TB180 TOP BENDER
Overview
Specifications
| Dimensions | 75 X 40 X 59 | 75 X 40 X 59 |
|---|---|---|
| Weight | 6,000 | 6,000 |
ERCOLINA (NEW) TB180 TOP BENDER - ROTARY DRAW
TUBE AND PIPE BENDING MACHINE
TUBE BENDING CAPACITIES
- 1-1/4" MINIMUM
- 6" - .120 WALL MAXIMUM
PIPE BENDING CAPACITIES
- 1-1/4" SCH. 40-4.5" MINIMUM CLR
- 6" SCH. 40 MAXIMUM
CENTERLINE RADIUS
- 3 X PROFILE DIA. MINIMUM
- 23-1/2" MAXIMUM (STANDARD MACHINE)
- 31-1/2" MAXIMUM (MACHINE W/CASE EXTENSION)
- 0-210 DEGREES OF BEND
ALL CAPACITIES BASED ON A53 GRADE A 48,000 PSI
TENSILE MATERIALS (HEAVY WALL AND HIGH TENSILE
MATERIALS REDUCE MACHINE CAPACITY)
1 RPM - VARIABLE TO BENDING SPEED
TOUCH SCREEN PROGRAMMING
- UNLIMITED STORAGE WITH USB
- 12 BENDS PER PROGRAM
480 VOLT, 3 PHASE
FEATURES
- TOUCH SCREEN CONTROL OFFERS EASY ACCESS TO
AUTOMATIC AND MANUAL OPERATING MODES
PROGRAMMING IN INCH AND MERIC
SYTEM DIAGNOSTICS IN MULTIPLE LANGUAGES
QUICK-CHANGE TOOLING SYSTEM WITH MULTIPLE RADII
DIGITAL DISPLAY OF BEND ANGLE
- HYDRAULICALLY OPERATED COUNTERBENDING DIE
VISE TO CONTROL MATERIAL SPRINGBACK
- COUNTERBENDING DIE VISE POSITION MONITORED
ELECTRONICALLY FOR ACCURACY AND REPEATABILITY
- HAND-HELD CONTROL WITH BEND, RETURN, AND
EMERGENCY STOP FUNCTIONS
- HEAVY-DUTY STEEL GEAR CASE
OPTIONS AVAILABLE - PRICE ON REQUEST
- ROLLER COUNTERBENDING DIE
- SPRAY LUBRICANT
- EASY PART LAYOUT SOFTWARE
