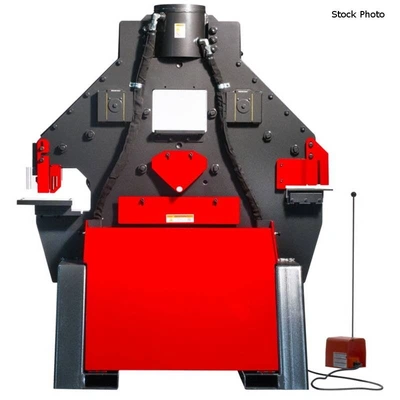

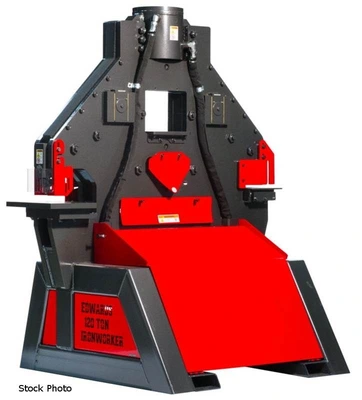

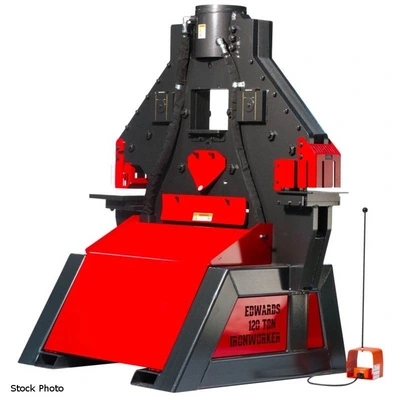

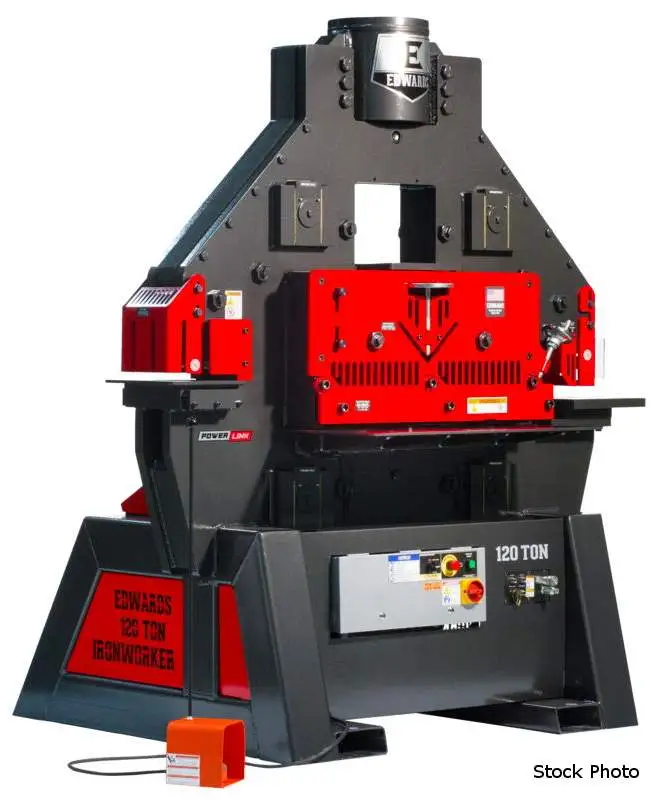

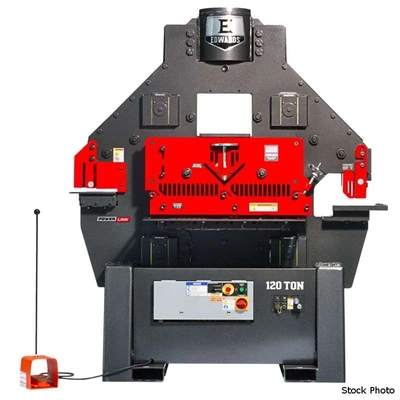

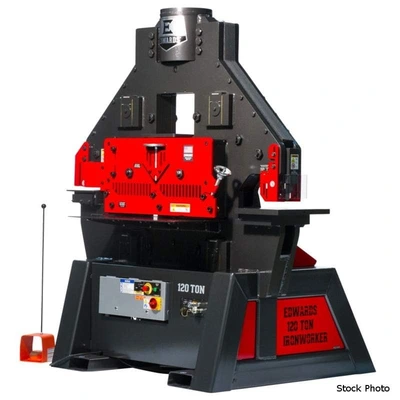

NEW EDWARDS IW120-3P230-A 120-TON

EDWARDS (NEW) MODEL IW120-3P230-A 120-TON
IRONWORKER WITH 5 STATIONS W/POWERLINK

PUNCH
- 1-1/2" DIA. MAX CAPACITY IN 1" PLATE
- 36-5/8" WORK HEIGHT
FLAT BAR SHEAR
- 1/2" X 24" MAXIMUM WIDTH
- 1" X 12" MAXIMUM THICKNESS
- 1-1/4" MAXIMUM ROUND
- 1-1/4" MAXIMUM SQUARE
- 33-1/4" WORK HEIGHT
ANGLE SHEAR
- 6" X 6" X 1/2" MAXIMUM SIZE
- 52-1/2" WORK HEIGHT
COPER/NOTCHER
- 3" X 6" X 1/2" MAXIMUM CAPACITY
- 40" WORK HEIGHT
OPEN CAVITY
- 11-3/4" WIDTH
- 9" HEIGHT
- 51-3/4" WORK HEIGHT

GENERAL SPECIFICATONS
- 120 TON RATED CAPACITY
- 11" THROAT
- 9-1/8" OPEN HEIGHT
- 7-1/8" SHUT HEIGHT
- 2" STROKE
- 10 HP, 3 PHASE ELECTRIC MOTOR
- 230 VOLTS
- 1770 RPM
- 26 AMP
- 24 GPM HYDRAULIC PUMP SIZE
- 3,800 PSI VALVE PRESSURE
- 17 GALLON RESERVOIR
- 2-3/4" RAM CYLINDER

STANDARD FEATURES
- COPER NOTCHER
- ELECTRIC STROKE CONTROL
- ELECTRIC FOOT PEDAL
- PEDESTAL DIE TABLE
- AUXILIARY M12 POWER PORT
- POWERLINK

ELECTRIC MOTOR OPTIONS - PRICE ON REQUEST
- 10 HP, 3 PH, 460 VOLT, 12 AMP
- 10 HP, 3 PH, 575 VOLT, 10 AMP
- 10 HP, 1 PHASE, 230 VOLT, 40 AMP

OPTIONS AVAILABLE - PRICE ON REQUEST
- HYDRAULIC ACCESSORY PACKAGE
- ACCESSORY LIGHT
- AUTO CUT
- ANGLE NOTCHER 3" X 3" X 1/4"
- BRAKE W/4-WAY DIE 1/16" 1/8" 3/16" 1/4"
- MULTI SHEAR
- PIPE NOTCHER HOUSING
- QUICK CHANGE PUNCH COUPLING
- ROD SHEAR HOUSING
1/4", 3/8", 1/2", 5/8", 3/4", 1"
Power: 230 (3-Phase)
