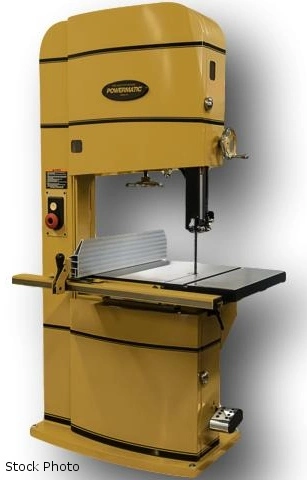

NEW POWERMATIC PM2013B

POWERMATIC (NEW) MODEL PM2013B BANDSAW

20" CUTTING WIDTH
18" CUTTING HEIGHT
170" BLADE LENGTH
1/4" MINIMUM SAW BLADE WIDTH
1-1/2" MAXIMUM SAW BLADE WIDTH
2300, 4400 SFPM BLADE SPEED
24" X 27" TABLE
36" TABLE HEIGHT
10 DEGREES LEFT, 45 DEGREES RIGHT TABLE TILT
45, 90 MITER GAUGE POSITIVE STOPS
4" DUST PORT OUTSIDE DIAMETER
600 CFM DUST COLLECTION CFM (MINIMUM REQUIRED)
5 HP, 1 PHASE, 230 VOLTS

STANDARD FEATURES
- POWERMATIC T-SQUARE STYLE ACCU-FENCE
MAXIMIZES ACCURACY AND SAFETY
ADJUSTS TO ALIGN BLADE AND SQUARING TO TABLE
- STURDY CAST IRON TABLE AND TRUNNION ASSEMBLY
OFFERS MAXIMUM RIGIDITY FOR LARGE WORK PIECES
- POSITIVE LOCKING CAM WITH PRESSURE ADJUSTMENT
- OVERSIZED SIDE PLATE CAN BE HORIZ. OR VERTICAL
- SOLID STEEL RESAW POST FOR OPTIMUM RIGIDITY
- BLADE TENSION RELEASE W/ELEC INTERLOCK PREVENTS
SAW FROM STARTING WHEN BLADE IS DE-TENSIONED
- HEAVY DUTY TOP WHEEL SUPPORT/TRACKING MECHANISM
- SOLID CAST IRON UPPER AND LOWER WHEELS
- HIGH END BLADE GUIDES WITH TOOL LESS ADJUSTMENT
PROVIDE STABILITY, INCREASING CUT ACCURACY
- 4-SIDED BLADE GUARD FOR OPTIMUM PROTECTION
- FOOT BRAKE WITH MAGNETIC SWITCH INTERRUPT FOR
HANDS-FREE STOPPING
- MAGNETIC SWITCH PROTECTS THE MOTOR FROM HARM
DUE TO POTENTIAL ELECTRICAL SUPPLY ISSUES
- HEAVY-DUTY 5 HP MOTOR
Power: 230 V (Single)
