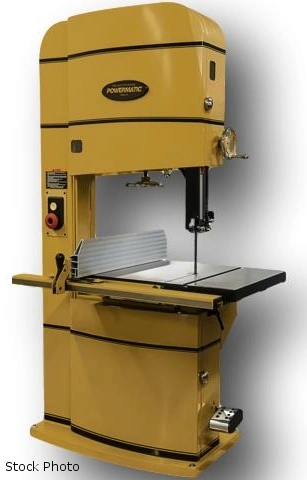

NEW POWERMATIC PM2415B

POWERMATIC (NEW) MODEL PM2415B BANDSAW

24" CUTTING CAPACITY
183" BLADE
2500/4800 SPM
24" X 34" TABLE
1-1/2" MAXIMUM SAW BLADE WIDTH
1/4" MINIMUM SAW BLADE WIDTH
10 DEGREES LEFT TABLE TILT
45 DEGREES RIGHT TABLE TILT
45 AND 90 DEGREES MITER GAUGE POSITIVE STOPS
600 CFM DUST COLLECTION REQUIRED
4" DUST PORT OUTSIDE DIAMETER
3 HP, 1 PHASE, 230 VOLTS

STANDARD FEATURES
- POWERMATIC T-SQUARE STYLE ACCU-FENCE
MAXIMIZES ACCURACY AND SAFETY
ADJUSTS TO ALIGN BLADE AND SQUARING TO TABLE
- STURDY CAST IRON TABLE AND TRUNNION ASSEMBLY
OFFERS MAXIMUM RIGIDITY FOR LARGE WORK PIECES
- POSITIVE LOCKING CAM WITH PRESSURE ADJUSTMENT
- OVERSIZED SIDE PLATE CAN BE HORIZ. OR VERTICAL
- SOLID STEEL RESAW POST FOR OPTIMUM RIGIDITY
- BLADE TENSION RELEASE W/ELEC INTERLOCK PREVENTS
SAW FROM STARTING WHEN BLADE IS DE-TENSIONED
- HEAVY DUTY TOP WHEEL SUPPORT/TRACKING MECHANISM
- SOLID CAST IRON UPPER AND LOWER WHEELS
- HIGH END BLADE GUIDES WITH TOOL LESS ADJUSTMENT
PROVIDE STABILITY, INCREASING CUT ACCURACY
- 4-SIDED BLADE GUARD FOR OPTIMUM PROTECTION
- FOOT BRAKE WITH MAGNETIC SWITCH INTERRUPT FOR
HANDS-FREE STOPPING
- MAGNETIC SWITCH PROTECTS THE MOTOR FROM HARM
DUE TO POTENTIAL ELECTRICAL SUPPLY ISSUES
- HEAVY-DUTY 5 HP MOTOR
Power: 230 (Single)
