NEW STANDARD AB150-12

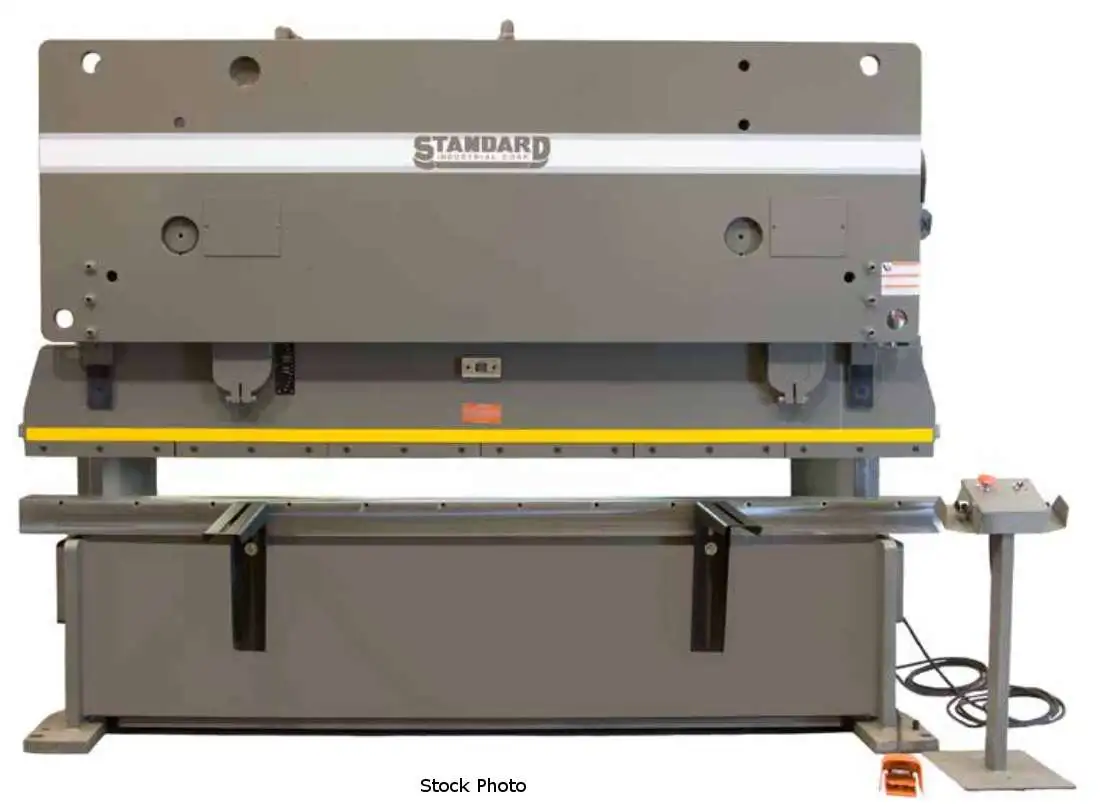

STANDARD (NEW) MODEL AB150-12 PRESS BRAKE

150 TON FORMING
100 TON PUNCHING
12' BED/RAM LENGTH
10' 5" BETWEEN HOUSINGS
13" OPEN HEIGHT
7" CLOSED HEIGHT
6" STROKE
6" THROAT

STANDARD FEATURES
- +/- 0.001 RAM REPEATABILITY
- PRECISION FULL LENGTH AND OFF-CENTER LOADING APPLICATION
- CONTINUOUS TONNAGE THE FULL LENGTH OF THE BED DUE TO
TO HYDRA-MECHANICAL DRIVE
- SIMPLE MECHANICAL LIMIT SWITCHES CONTROL OPEN HEIGHT, SPEED
CHANGE POINT AND LOWER LIMIT/ANGLE OF THE BEND
- COUNTERBALANCE FOR PUNCHING APPLICATION FOR UP TO 2/3 OF TOTAL TONNAGE
- (2) 24" WORK SUPPORT ARMS THAT SLIDE L-R IN T-SLOT ACROSS FRONT OF BED
- MANIFOLD CENTRALIZED LUBE SYSTEM FOR EASY MAINTENANCE
- OSHA APPROVED HAND/FOOT SEQUENCE W/FOOTSWITCH FOR SINGLE OPERATOR
- T-SLOT ACROSS FRONT EDGE OF BRAKE BED
- 5 YEARS PART WARRANTY
