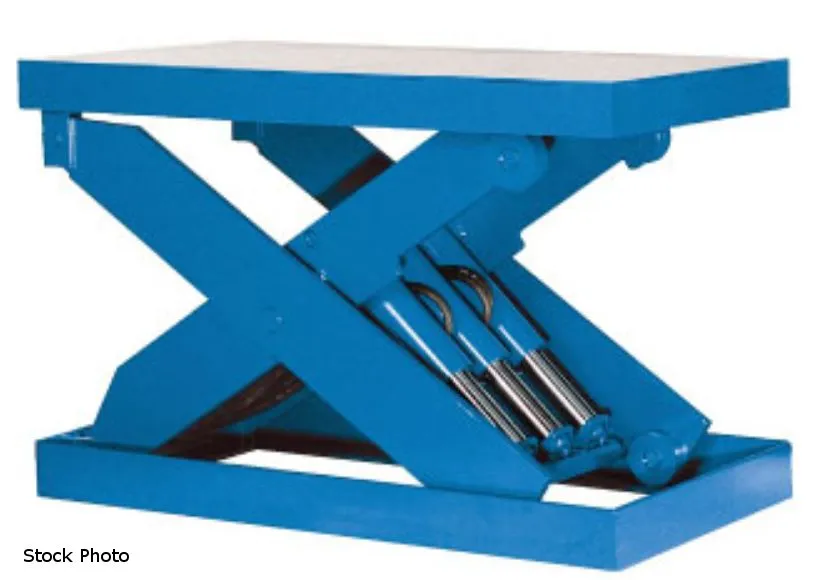

NEW ADVANCE LIFTS HD-1036
Overview
Specifications
| Dimensions | 60 X 30 X 10 | 60 X 30 X 10 |
|---|---|---|
| Weight | 1,550 | 1,550 |
ADVANCE LIFTS (NEW) MODEL HD-1036 HEAVY-DUTY
LIFT TABLE
10,000 LBS LIFTING CAPACITY
36" TRAVEL
30" X 60" MIN PLATFORM SIZE
54" X 90" MAX PLATFORM SIZE
10,000 LBS MAX END LOAD CAPACITY
8300 MAX SIDE LOAD CAPACITY
30" X 60" BASEFRAME SIZE
9.75" LOWERED HEIGHT
45.75" RAISED HEIGHT
26 SEC APPROX SPEED UP
5 HP EXTERNAL MOTOR
STANDARD EQUIPMENT
- PLATFORM CENTERING DEVISES
- UNDERWRITER LAB LISTED ASSY CONTROLLERS
- BAKED ENAMEL FINISH
- MACHINE-GRADE CYLINDERS
- CLEAR PLASTIC RETURN LINES
- DOUBLE WIRE BRAID PRESSURE HOSES W/JIC FITTING
- MILD STEEL RESERVOIRS
- CONFORM TO ALL APPLICABLE ANSI CODE
- 10 YEAR/250,000 CYCLE WARRENTY
OPTIONS AVAILABLE - PRICE ON REQUEST
- WHEEL AND DOLLY SETS
- FORK POCKETS
- CASTER SETS
- BEVEL TOE GUARDS
- ELECTRIC TOE GUARDS
- ACCORDION (BELLOW) SKIRTS
- FLANGED OR "V" GROOVE WHEEL SETS
- POWERED DRIVE OPTIONS
- SLIP REDUCING DECKS
- "V" CRADLE DECKS
- GUARD RAILS AND SAFETY CHAINS
- CONVEYORS AND BALL TRANSFERS
Power: 230/60/3
