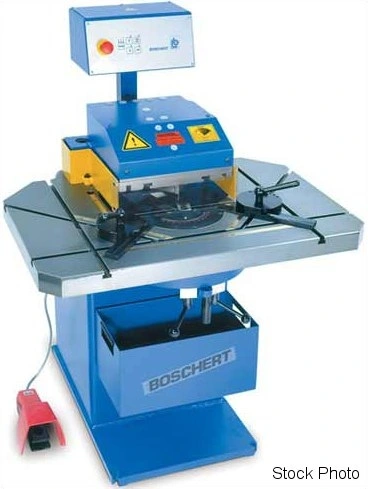

NEW BOSCHERT VARI IV

BOSCHERT (NEW) VARI IV (MINI-S) HYDRAULIC VARIABLE
ANGLE NOTCHER

CAPACITY
- 5/32" MILD STEEL (4 MM)
- 11 GA STAINLESS STEEL
- 5.9" X 5.9" 90-DEGREE NOTCHING
- 30-120 DEGREE NOTCH ANGLE
- 39.4" X 25.6" TABLE
- 6.5 HP HYDRAULIC SYSTEM DRIVE MOTOR
- 220 VOLTS, 3 PHASE

- 3-POINT RAM GUIDANCE SYSTEM
- MILLED BED SURFACE - MATERIALS DO NOT FLOAT OR
STICK
- 30 DEGREE UPPER BLADE IS DIRECTLY CONNECTED TO
2 CORRESPONDING LOWER BLADES
- RIGHT AND LEFT NOTCH
- PNEUMATIC POWER ROTATES THE BLADES AFTER EACH
STROKE
- HIGH CARBON, HIGH CHROME BLADES OVERLAP ON THE
CUTTING EDGE TO ELIMINATE BLADE CHIPPING
- MOVEABLE ELECTRIC FOOT PEDAL
- SCRAP BUCKET
Power: 220/3/60
