| Dimensions | 28 X 29 X 36 | 28 X 29 X 36 |
| Weight | 2,300 | 2,300 |

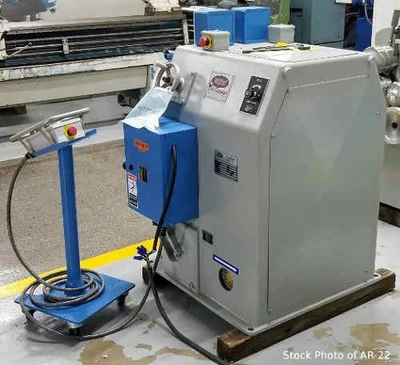

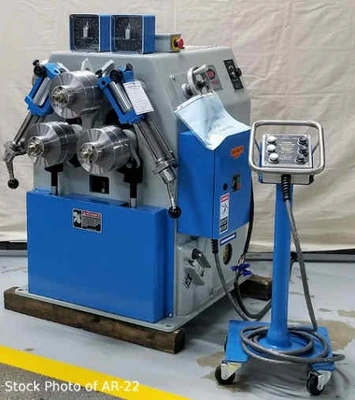

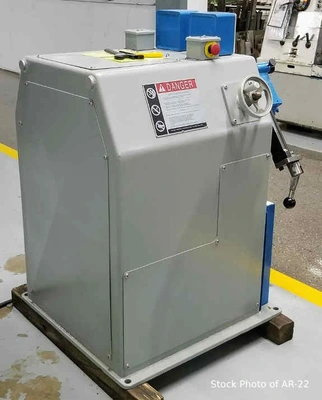

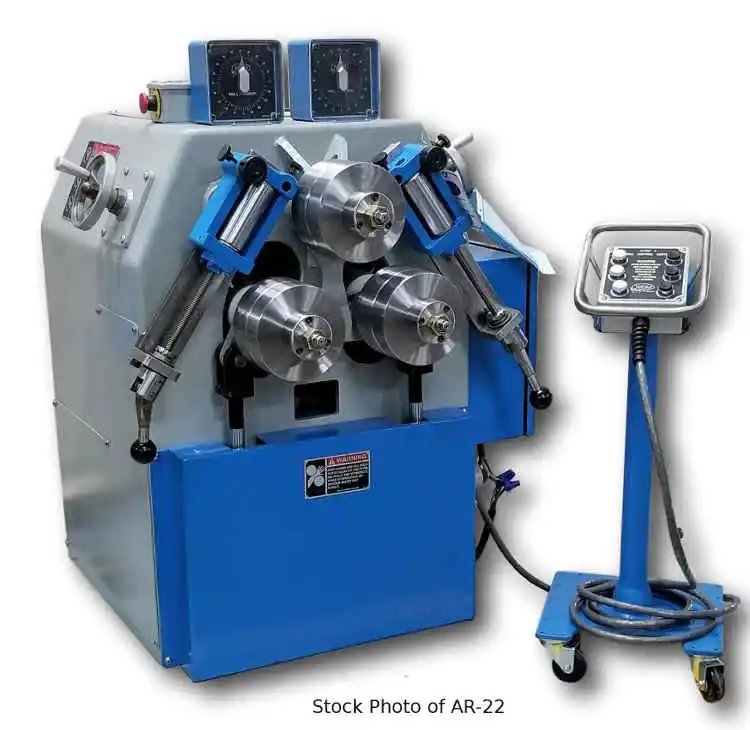

WALDEMAR (NEW) MODEL WDM AR-23 HYDRAULIC ANGLE
ROLL
5 HP, 3 PHASE MOTOR
7.5" ROLL DIAMETER
15 TONS BENDING PRESSURE
2.5" MAIN SHAFT DIAMETER
0-22 FPM ROLLING SPEED
MINIMUM DIAMETER - CAPACITY
26" ANGLE LEG OUT 2" X 2" X 3/8"
22" ANGLE LEG IN 2" X 2" X 1/4"
20" FLAT ON FLAT 3/4" X 4-5/8" X 6"
20" FLAT ON EDGE 1/2" X 2-1/2"
16" SQUARE BAR 1-3/8"
20" TEE LEG IN 2" X 2" X 1/4"
20" TEE LEG OUT 2" X 2" X 1/4"
15" ROUND BAR 1-1/2"
16" SCH 40. PIPE 1-1/2"
16" SCH 80 PIPE 1-1/2"
16" SCH 120 PIPE 1-1/2"
16" XXH STEEL PIPE 1-1/4"
24" ROUND TUBE 2-3/8" X 12 GA
22" SQUARE TUBE 2" X 11 GA
18" RECTANGULAR TUBE 2" X 1-1/4" X 11 GA
18" CHANNEL FLANGE OUT C3 X 4.1#
18" CHANNEL FLANGE IN C3 X 4.1#
FEATURES

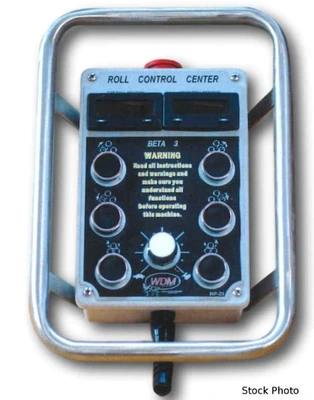

- BETA 3 CONTROL
- ALLOY STEEL SHAFTS AND ARBORS
- TOTAL HYDRAULIC OPERATION
- INSTANT START-STOP-REVERSE
- 1 SET UNIVERSAL DIES, ROLLS
ANGLE LEG IN AND OUT
TEE BAR LEG IN AND OUT
FLATS ON EDGE AND ON FLAT
SQUARE AND SMALL ROUNDS
- ACCURATELY MACHINED AND HARDENED DIES
- 3-ROLL DRIVE
- ELECTRONICS TO NFPA 79 SPECIFICIATIONS
- LOW VOLTAGE CONTROL CIRCUIT 120 OR 24 VAC
- SAFETY STOP/EMERGENCY STOP MUSHROOM BUTTONS
- OVERLOAD PROTECTION
- QUIET, INTEGRATED HYDRAULIC SYSTEM
- SEALED SPHERICAL ROLLER BEARINGS @ MAIN POINTS
- NON-LUBE MINIMUM MAINTENANCE TECHNOLOGY
- HEAVY GEAR DRIVE WITH STRONG TOOTH PROFILE
OPTIONS AVAILABLE - PRICE ON REQUEST
- 6W SET PIPE OR PROFILE
- ADJUSTABLE CHANNEL BEAM
- 4-WAY HYDRAULIC GUIDE ROLL ADJUSTMENT
Power: 230
