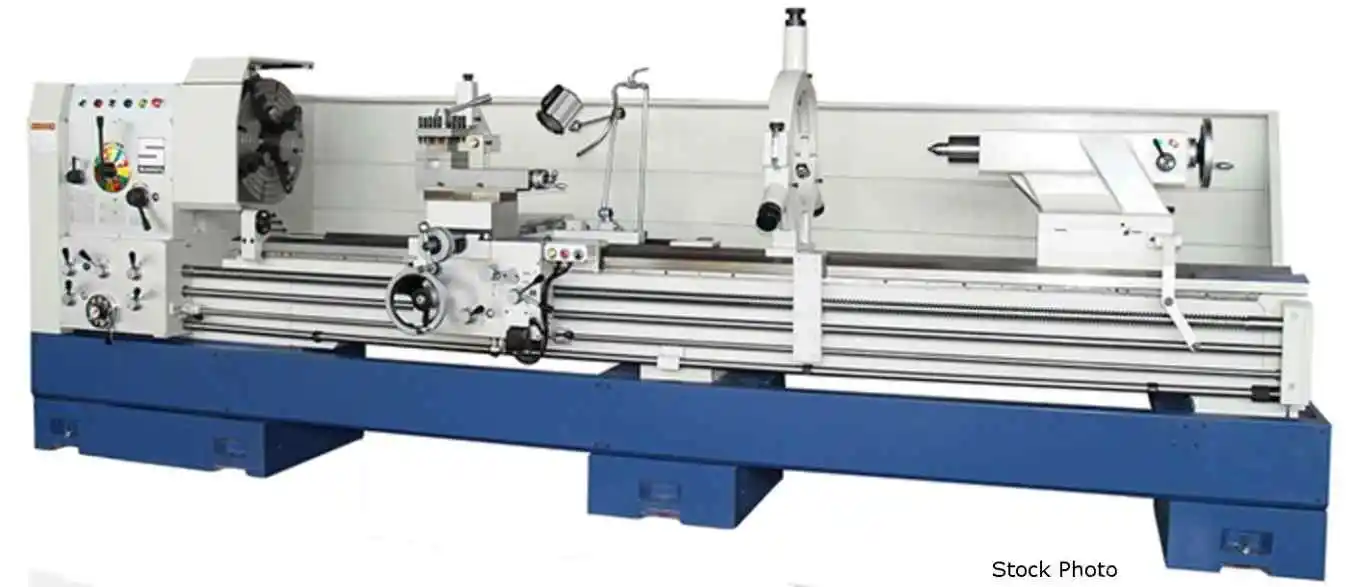

SUMMIT (NEW) MODEL 33-9-160 BIG HOLE ENGINE LATHE
CAPACITIES
- 33" SWING OVER BED
- 23-3/4" SWING OVER CROSS SLIDE
- 41-3/4" SWING OVER GAP
- 18" GAP
HEADSTOCK
- 12 SPINDLE SPEEDS - 11-700 RPM
- 9.1" SPINDLE BORE
- A2-15 SPINDLE NOSE
QUICK CHANGE GEARBOX
- 2-28 THREADS PER INCH (36)
- 0.08-14 MM METRIC THREADS (65)
- 0.5-7 MODULE THREADS (22)
- 4-56 DIAMETRAL PITCH (36)
- 0.0019-0.0276 LONGITUDINAL FEEDS (36)
- 0.0009-0.0137 CROSS FEEDS (36)
- 2 TPI LEADSCREW (1-3/4" DIAMETER)
CARRIAGE APRON
- 15-1/2" CROSS SLIDE TRAVEL
- 9" COMPOUND REST TRAVEL
TAILSTOCK
- 9" TRAVEL OF SPINDLE BARREL
- 3-3/4" DIAMETER OF SPINDLE BARREL
- MT5 CENTER TAPER
- 2 SPEED - 1:1 AND 4:1
BED
- 18" WIDE
- 42-50 ROCKWELL C HARDNESS

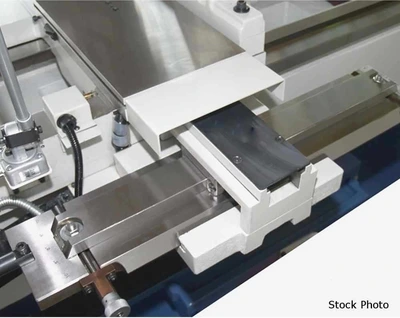

TAPER ATTACHMENT
- +/- 10 DEGREES OF TAPER
- 20" MAXIMUM TURNING LENGTH PER SETTING
MOTORS
- 20 HP MAIN DRIVE
- 1/8 HP COOLANT PUMP
STEADY FOLLOW REST
- 2"-14.9" STANDARD STEADY REST
- 1.2"-5.9" FOLLOW REST
STANDARD FEATURES
- PRECISION 3 BEARING SPINDLE
- ELECTRIC SPINDLE BRAKE FOR PRECISE CONTROL
- CAST IRON CONSTRUCTION PROVIDES A SOLID
FOUNDATION FOR VIBRATION ABSORPTION RIGIDITY
- HARDENED AND PRECISION GROUND BEDWAYS FOR LONG-
LASTING ACCURACY
- INCH/METRIC THREADS WITH SINGLE SWITCH LEVER
- QUICKCHANGE GEARBOX WILL CUT AMERICAN (INCH),
METRIC AND MODULE PITCH THREADS
- FORCED LUBRICATION TO THE HEADSTOCK, CARRIAGE
AND BEDWAYS
- RAPID TRAVERSE ON CARRIAGE (4 WAY)
- 2-SPEED TAILSTOCK FOR FASTER SET UPS
ACCESSORIES INCLUDED
- STEADY REST
- FOLLOW REST
- THREAD DIAL
- COOLANT SYSTEM
- TAPER ATTACHMENT

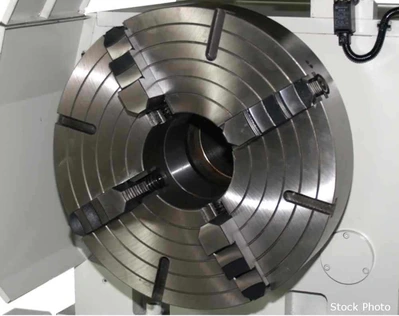

- FRONT AND REAR 26" STEEL BODY 4-JAW CHUCKS
- CARRIAGE STOP
- WORK LIGHT
- FULL-LENGTH SPLASH GUARD
OPTIONS AVAILABLE - PRICE ON REQUEST
- EXTRA-CAPACITY STEADY REST (11.8"-20.8")
- QUICK-CHANGE TOOL POST WITH HOLDERS
- ELECTRONIC 2 AXIS DIGITAL READOUT INSTALLED
- 28" STEEL BODY HEAVY DUTY 4 JAW CHUCK WITH
7.5" BORE
- 25" STEEL BODY 3 JAW PRECISION CHUCK WITH
9.9" BORE
- 20" STEEL BODY 3 JAW PRECISION CHUCK WITH
7.5" BORE
- 15-3/4" STEEL BODY 4 JAW CHUCK WITH 6.5" BORE
Power: 220/440 (3-Phase)
