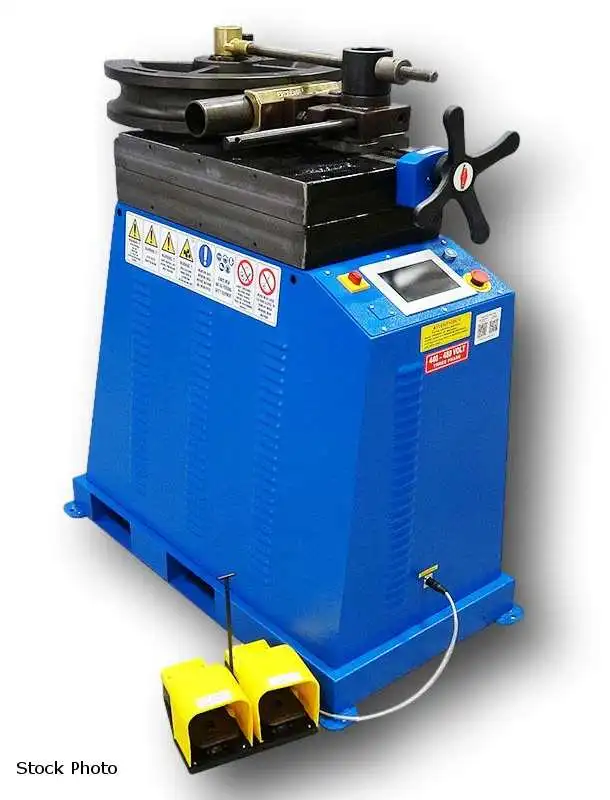

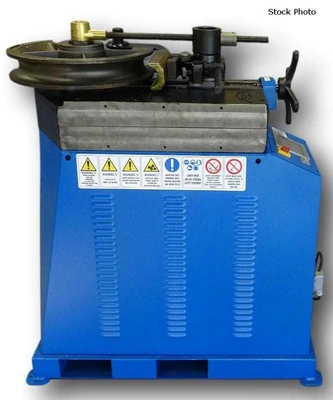

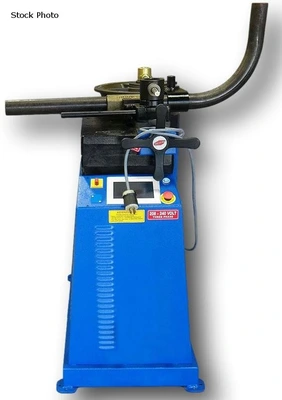

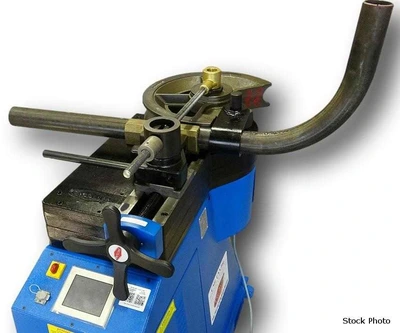

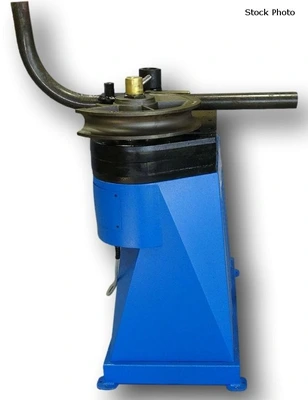

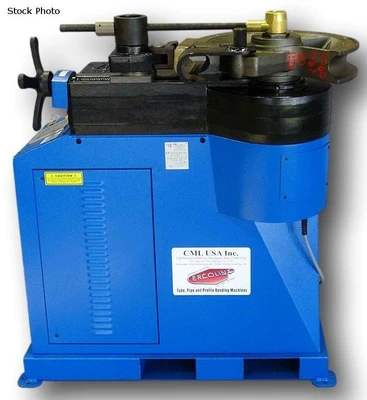

NEW ERCOLINA TB100 TOP BENDER
Overview
Specifications
| Dimensions | 20 X 34 X 47 | 20 X 34 X 47 |
|---|---|---|
| Weight | 1,030 | 1,030 |
ERCOLINA (NEW) TB100 TOP BENDER-TUBE AND PIPE
CAPACITIES BASED ON MILD GRADE MATERIALS:
- 1/4 " MINIMUM OUTSIDE DIAMETER
- 4" MAXIMUM TUBE OUTSIDE DIAMETER
- 3" SCH 40 MAXIMUM PIPE CAPACITY
- 2D CLR - MINIMUM
- 17" CLR - MAXIMUM
- 0-210 ANGLE RANGE DEGREES
- BENDING SPEED VARIABLE TO 1.3 RPM
- TOUCH SCREEN PROGRAMMING
- UNLIMITED STORAGE WITH USB
- 12 BENDS WITHIN EACH PROGRAM
- 220 OR 480 VOLTS, 3 PHASE
- 3.25 HP
FEATURES:
- BEND ANY ANGLE TO 180 DEGREES WITH
INDEPENDENT MATERIAL SPRING BACK
COMPENSATION FOR EACH BEND
- IDEAL FOR PRODUCING CONSISTENT QUALITY
BENDS IN LARGE PIPE, TUBE, SQUARES, SOLIDS AND
OTHER PROFILES
- TOUCH SCREEN CONTROL OFFERS EASY ACCESS
TO AUTO AND MANUAL OPERATING MODES,
PROGRAMMING, (INCH AND METIC) SYSTEM DIAGNOSTICS
AND MULTIPLE LANGUAGE CAPABILITY
- QUICK-CHANGE TOOLING SYSTEM WITH MULTIPLE RADII
- DIGITAL DISPLAY BEND ANGLE
- SWING AWAY COUNTERBENDING DIE VISE
FOR EASY MATERIAL HANDLING
HEAVY-DUTY STEEL GEAR CASE
- NO HYDRAULIC COMPONENTS
OPTIONS AVAILABLE - PRICE ON REQUEST
- TUBE AND PIPE TOOLING KITS
- ROLLER COUNTERBENDING DIE
- SPRAY LUBRICANT
- LARGE SQUARE TOOLING
- EASY PART LAYOUT SOFTWARE
Power: 220/480 (3-Phase)
