NEW EDWARDS HAT1010 10-TON
Overview
Specifications
| Dimensions | 41 X 37 X 42 | 41 X 37 X 42 |
|---|---|---|
| Weight | 1,000 | 1,000 |
EDWARDS (NEW) MODEL HAT1010 10-TON TUBE/PIPE
BENDER WITH PORTABLE POWER UNIT
INCLUDES

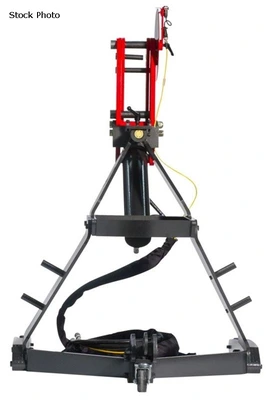

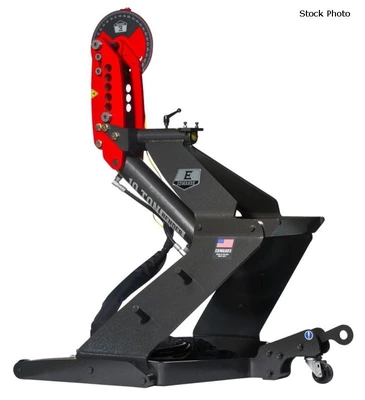

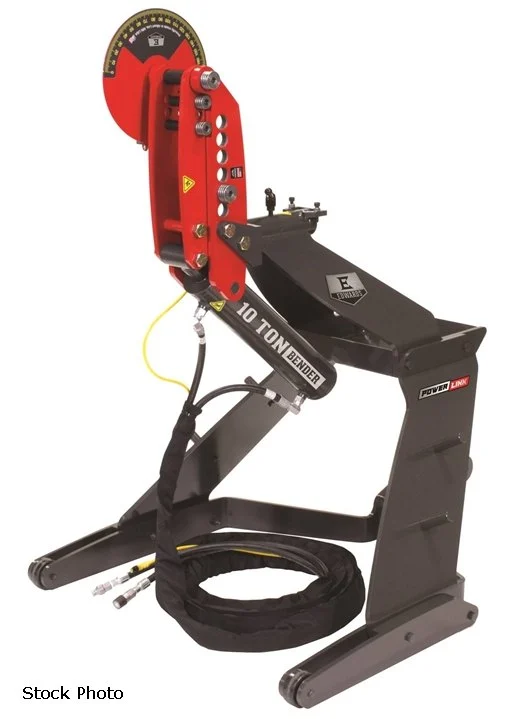

1) EDWARDS BENDER
2) EDWARDS PORTABLE POWER UNIT
1) BENDER
- 180 DEGREE BEND CAPACITY
- 1-3/4" RAM CYLINDER
- 3-1/2 GPM HYDRAULICS
- 2" (ID) SCHEDULE 40 PIPE CAPACITY
- 2-1/2" ROUND TUBE CAPACITY
- 2" (OD) .25" SQUARE TUBE CAPACITY
- 2-1/2" (OD) .095" TUBE CAPACITY
- 14" STROKE
- 2750 PSI VALVE PRESSURE
- 20' QUICK-CONNECT HOSES FOR PLUG/PLAY OPERATION
- BUILT-IN STORAGE ON FRAME FOR BENDER DIES
- EASY-TO-USE HAND/JOG CONTROLS WITH E-STOP
- HEAVY-DUTY ROLLING STAND
- OPERATES HORIZONTALLY OR VERTICALLY
- PROXIMITY SENSOR AND DEGREE WHEEL

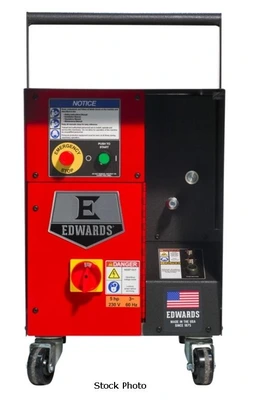

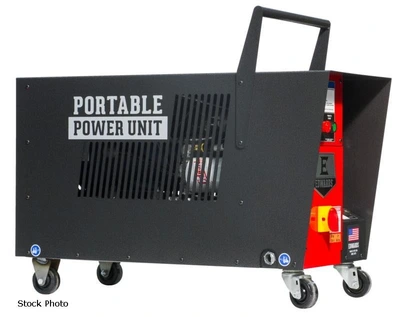

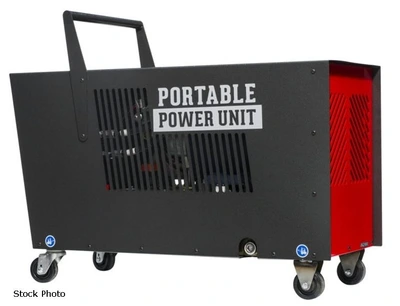

2) EDWARDS PORTABLE POWER UNIT
- 5 HP, 3 PHASE, 230 VOLTS
- 1725 RPM
- 14 AMP
- 3-1/2 GPM 1-STAGE HYDRAULIC PUMP
- 3000 PSI VALVE PRESSURE
- 7 GALLON RESERVOIR
- 37.5" X 15.25" X 31.25", 400 LBS
OPTIONS AVAILABLE - PRICE ON REQUEST
- OVER 300 STANDARD DIES
PORTABLE POWER UNIT OPTIONAL MOTORS
- 5 HP, 3 PHASE, 460 VOLT, 7 AMP
- 5 HP, 3 PHASE, 575 VOLT, 6 AMP
- 5 HP, 1 PHASE, 230 VOLT, 23 AMP
ONE YEAR WARRANTY
NOTE: EDWARDS BENDER CAN ALSO BE PURCHASED
WITHOUT THE EDWARDS PORTA POWER
Power: 230 (3-Phase)
