| Dimensions | 76 X 32 X 63 | 76 X 32 X 63 |
| Weight | 1,600 | 1,600 |

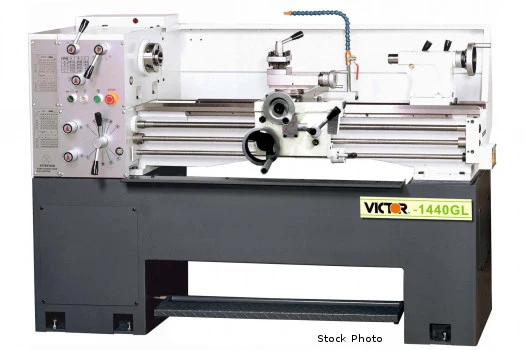

VICTOR (NEW) MODEL 1440GL PRECISION HIGH SPEED
ENGINE LATHE
CAPACITY
- 14" SWING OVER BED
- 8-3/4" SWING OVER CROSS CARRIAGE
- 20-1/2" SWING IN GAP
- 7-5/8" GAP
- 9" BED
- 40" BETWEEN CENTERS
HEADSTOCK
- 1-9/16" SPINDLE BORE DIAMETER
- MT #5 SPINDLE BORE TAPER
- MT #3 TAPER OF CENTER IN SLEEVE
- CAMLOCK D1-4 SPINDLE NOSE
- 12 STEPS
- 50-2000 RPM SPINDLE SPEEDS
THREADS AND FEEDS
- 0.026"-0.0368" LONGITUDINAL FEEDS
- 0.0009"-0.0123" CROSS FEEDS
- 15/16'" OR 4 TPI LEADSCREW PITCH
- 4 - 56 TPI INCH THREADS
- 0.4-7.0 MM METRIC THREADS
CARRIAGE
- 7" CROSS SLIDE TRAVEL
- 3-3/4" COMPOUND SLIDE TRAVEL
TAILSTOCK
- MT#3 TAILSTOCK TAPER CENTER
- 4" SPINDLE TRAVEL
- 1-9/16" SPINDLE DIAMETER
POWER
- 5 HP 3 PHASE, 220 VOLT MAIN MOTOR
- 1/8 HP COOLANT PUMP
STANDARD EQUIPMENT
- HALOGEN WORK LIGHT
- DEAD CENTER MT #3
- REDUCING SLEEVE
- THREADING DIAL INDICATOR
- TOOL BOX
- FOUR-WAY TOOL POST
- INSTRUCTION MANUAL AND PARTS LIST
- GAP BED
- COOLANT SYSTEM
- CHUCK COVER WITH MICRO SWITCH
- FULL-LENGTH SPLASH GUARD
- LEVELING SCREWS AND PADS
FEATURES
- CR-MO ALLOY STEEL HEADSTOCK GEAR
- HARDENED AND GROUND BED WAYS
- FORCED LUBRICATION SYSTEM LUBRICATES ALL
HEADSTOCK GEARS AND BEARING
- BED IS MADE OF HIGH TENSILE CAST IRON FC30
- HARDENED AND GROUND BED WAYS
- LEADSCREW IS EQUIPPED WIT HA TORQUE LIMIT
SAFETY DEVISE
- FEED ROD HAS A BUILT-IN OVERLOAD SAFETY CLUTCH
- AN INTERLOCKING DEVISE IN APRON TO PREVENT
SIMULTANEOUS ENGAGEMENT OF AUTO FEEDING AND
THREADING OPERATION
- FULL-LENGTH FOOT BRAKE
OPTION AVAILABLE - PRICE ON REQUEST
- DIGITAL READOUT (DRO)
- 3-JAW SCROLL CHUCK
- 4-JAW INDEPENDENT CHUCK
- FACE PLATE D1
- STEADY REST
- FOLLOW REST
- QUICK CHANGE TOOL POST
- LIVE CENTER MT #3
- TAPER TURNING ATTACHMENT
- MCIRO CARRIAGE STOP
- 5C LEVER TYPE COLLECT CLOSER
- 5C COLLET SET
Power: 220 (3-Phase)
